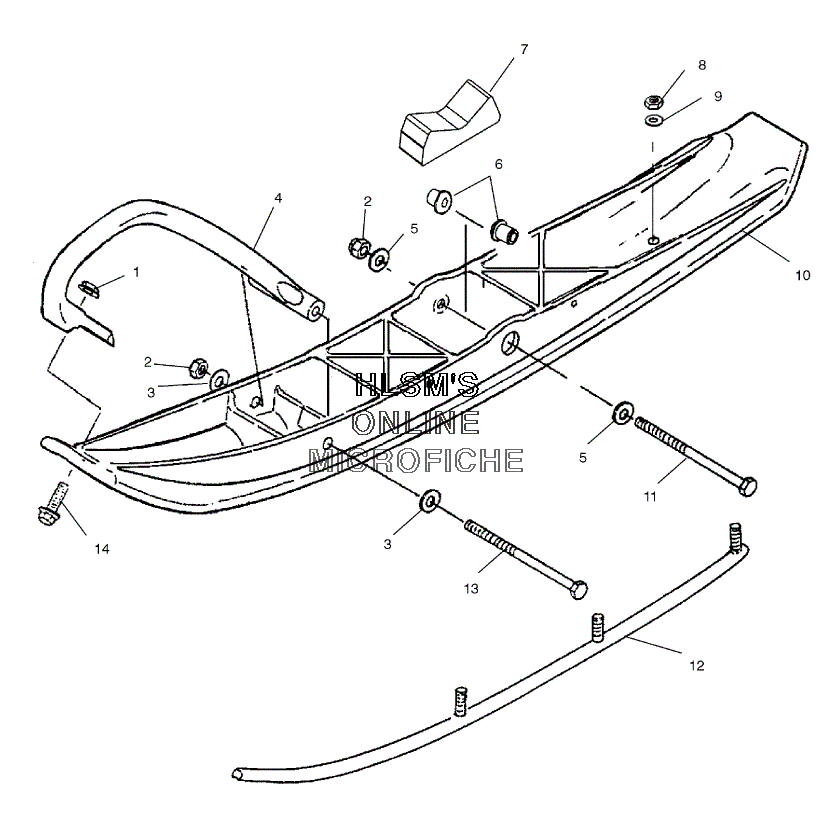

SKI ASSEMBLY для Polaris 600 PRO X (S03NX6ES) - 2003 года выпуска
-
№АртикулНазвание
-
17542321 NUT, FLANGENUT, FLANGE
-
27542439 NUT, NYLOKNUT, NYLOK
-
37555832 WASHERWASHER
-
45434165-070 TOE - PLASTIC SKI (BLACK)TOE - PLASTIC SKI (BLACK)
-
57556130 WASHERWASHER
-
65132637 BUSHINGBUSHING
-
75412018 STOP, RUBBERSTOP, RUBBER
-
87542324 NUT, NYLOKNUT, NYLOK
-
97556175 WASHERWASHER
-
101821327-070 ASSY. - COMP SKI, DEEPSADLSS (BLACK)ASSY. - COMP SKI, DEEPSADLSS (BLACK)
-
117517968 SCREWSCREW
-
122871688 KIT - SKAG, 7/16X4"CARBIDE 60ШCMPKIT - SKAG, 7/16X4"CARBIDE 60ШCMP
-
137515514 BOLTBOLT
-
147515307 BOLTBOLT
