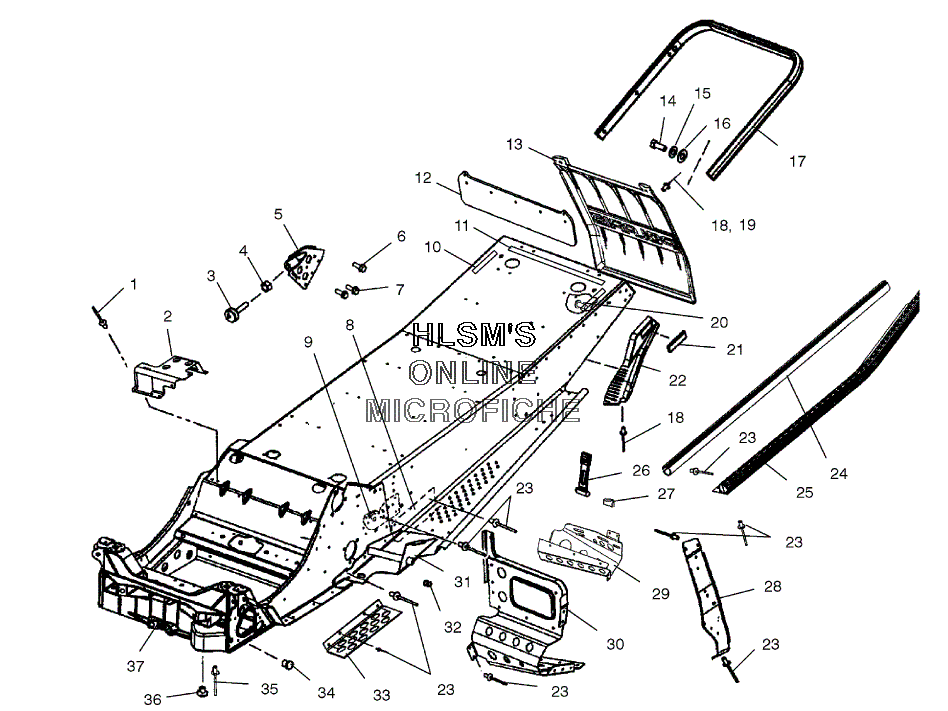

FRAME - CHASSIS для Polaris 600 XC SP EDGE (S03NP6ESA/B) - 2003 года выпуска

№

Артикул

Название
1

7621432 RIVET, 3/16X.402

RIVET, 3/16X.402

110 ₽
2

5246330 BRKT - OIL TANK/HOSE SUPPORT

BRKT - OIL TANK/HOSE SUPPORT

3 330 ₽
3

3021104 STOP, TORQUE COURSE 3/8 - 16

STOP, TORQUE COURSE 3/8 - 16

3 120 ₽
4

7542404 NUT

NUT

460 ₽
5

1013379 WELD - TORQUE STOP, S44

WELD - TORQUE STOP, S44

4 990 ₽
6

7517632 SCREW

SCREW

790 ₽
7

7517854 SCREW

SCREW

830 ₽
10

5812290 GASKET - SEAT BASE

GASKET - SEAT BASE

290 ₽
11

5812360 GASKET - SEAT BASE 1/4"

GASKET - SEAT BASE 1/4"

460 ₽
12

5812430 BACKER - SNOW FLAP (IF BUILT AFTER 4/29/02)

BACKER - SNOW FLAP (IF BUILT AFTER 4/29/02)

4 580 ₽
13

5433521-1038 FLAP, SNOW, EDGE, BLK W/CHROME (IF BUILT BEFORE 4/29/02)

FLAP, SNOW, EDGE, BLK W/CHROME (IF BUILT BEFORE 4/29/02)

17 680 ₽
13

5433979 FLAP - SNOW, EDGE X (IF BUILT BEFORE 4/29/02)

FLAP - SNOW, EDGE X (IF BUILT BEFORE 4/29/02)

0 ₽
13

5434847-1038 FLAP - SNO, EDGE, LONG (BLACK/WHITE) (IF BUILT AFTER 4/29/02)

FLAP - SNO, EDGE, LONG (BLACK/WHITE) (IF BUILT AFTER 4/29/02)

19 760 ₽
13

5434860 FLAP - SNOW EDGE LONG X (IF BUILT AFTER 4/29/02)

FLAP - SNOW EDGE LONG X (IF BUILT AFTER 4/29/02)

18 720 ₽
14

7512240 BOLT

BOLT

460 ₽
15

7552801 WASHER, SPRING LOCK

WASHER, SPRING LOCK

460 ₽
16

7558301 WASHER, FLAT

WASHER, FLAT

110 ₽
17

2632165-309 ASSY., BUMPER, REAR

ASSY., BUMPER, REAR

29 120 ₽
17

2632165-216 ASSY. - REAR BUMPER, SCR YELLOW

ASSY. - REAR BUMPER, SCR YELLOW

29 120 ₽
18

7621472 RIVET (QTY. 8 IF BUILT AFTER 4/29/02)

RIVET (QTY. 8 IF BUILT AFTER 4/29/02)

250 ₽
19

7621418 RIVET, POP (IF BUILT AFTER 4/29/02)

RIVET, POP (IF BUILT AFTER 4/29/02)

250 ₽
20

7517441 SCREW

SCREW

630 ₽
21

2670133 REFLECTOR ASSY. (RED)

REFLECTOR ASSY. (RED)

1 460 ₽
22

2632443-070 ASSY. - SNOWSKIRT/REFLECTOR (BLACK) (LEFT)

ASSY. - SNOWSKIRT/REFLECTOR (BLACK) (LEFT)

12 480 ₽
22

2632444-070 ASSY. - SNOWSKIRT/REFLECTOR (BLACK) (RIGHT)

ASSY. - SNOWSKIRT/REFLECTOR (BLACK) (RIGHT)

12 480 ₽
23

7661637 RIVET, INTERLOCK, Z

RIVET, INTERLOCK, Z

150 ₽
24

5245118 BRACE - TUNNEL ROLL (STD. MODELS)

BRACE - TUNNEL ROLL (STD. MODELS)

5 410 ₽
25

5132903 GRIP - TUNNEL, COMMON (LEFT)

GRIP - TUNNEL, COMMON (LEFT)

0 ₽
25

5132904 GRIP - TUNNEL, COMMON (RIGHT)

GRIP - TUNNEL, COMMON (RIGHT)

0 ₽
26

5433150 STRAP

STRAP

4 160 ₽
27

5812352 PAD - CLUTCH GUARD

PAD - CLUTCH GUARD

1 870 ₽
28

5246310 SUPPORT - FOOTREST (LEFT)

SUPPORT - FOOTREST (LEFT)

4 990 ₽
28

5246311 SUPPORT - FOOTREST (RIGHT)

SUPPORT - FOOTREST (RIGHT)

4 990 ₽
29

5245457 MOUNT - CONSOLE, TOE CLIP (LEFT)

MOUNT - CONSOLE, TOE CLIP (LEFT)

6 870 ₽
29

5245458 MOUNT - CONSOLE, TOE CLIP (RIGHT)

MOUNT - CONSOLE, TOE CLIP (RIGHT)

6 870 ₽
30

5245288 FOOTREST - (LEFT), .080

FOOTREST - (LEFT), .080

35 360 ₽
30

5242740 SUBSTITUTED BY 5247205

SUBSTITUTED BY 5247205

18 720 ₽
31

2202059 KIT - MOUNT, TRAILING ARM (LEFT)

KIT - MOUNT, TRAILING ARM (LEFT)

37 440 ₽
31

2202060 KIT - MOUNT, TRAILING ARM (RIGHT)

KIT - MOUNT, TRAILING ARM (RIGHT)

0 ₽
32

5412276 GROMMET - M10 ACE WIRE

GROMMET - M10 ACE WIRE

580 ₽
32

7081085 PLUG - BARBED, .625 (M - 10)

PLUG - BARBED, .625 (M - 10)

1 250 ₽
33

5245836 GUARD - BELT, EDGE, W/BEND

GUARD - BELT, EDGE, W/BEND

6 240 ₽
34

7080416 PLUG, HOLE

PLUG, HOLE

750 ₽
35

7661639 SUBSTITUTED BY 7661130

SUBSTITUTED BY 7661130

250 ₽
36

7081076 PLUG - HOLE, 1.25

PLUG - HOLE, 1.25

460 ₽
37

5132292 BULKHEAD - FRONT, MACH

BULKHEAD - FRONT, MACH

29 120 ₽
37

1013778-309 ASSY. - CHASSIS, SVC, EDGE, NATURAL

ASSY. - CHASSIS, SVC, EDGE, NATURAL

0 ₽
37

1013795-1124 ASSY. - CHASSIS, EDGE X, SVC, NAT/YELLOW

ASSY. - CHASSIS, EDGE X, SVC, NAT/YELLOW

0 ₽
37

1014098-1124 ASSY. - CHASSIS, EDGE M10X, RC, N/YW

ASSY. - CHASSIS, EDGE M10X, RC, N/YW

0 ₽
