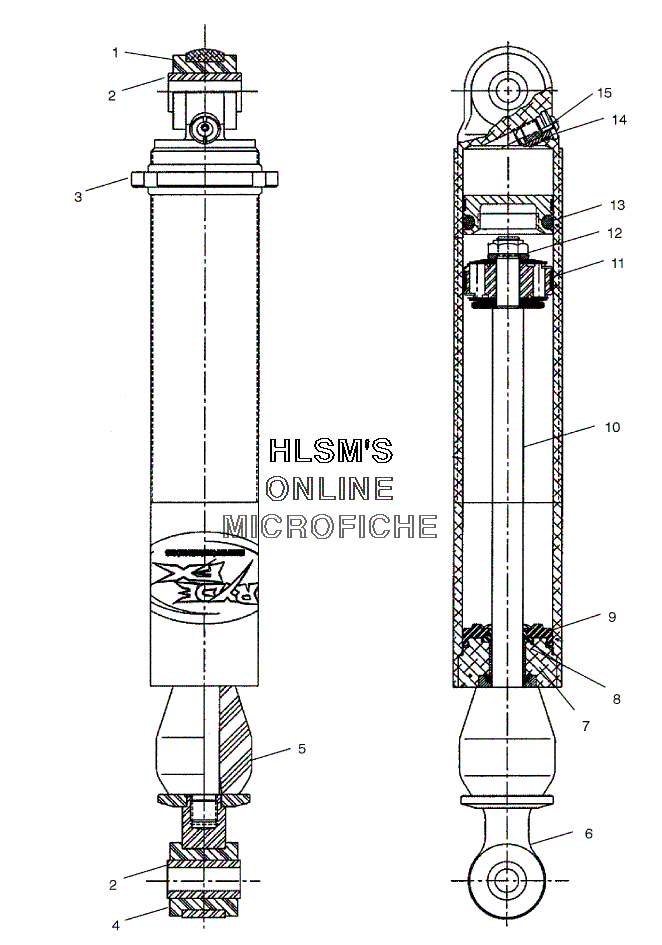

SHOCK (RYDE FX) (IFS) для Polaris 600 XC SP EDGE (S03NP6ESA/B) - 2003 года выпуска
-
№АртикулНазвание
-
11700036 BUSHINGBUSHING
-
21700037 SLEEVESLEEVE
-
31700033 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
41700072 BUSHINGBUSHING
-
51700042 BUMPER, COMPRESSIONBUMPER, COMPRESSION
-
61700010 MOUNT, UPPERMOUNT, UPPER
-
71700007 CYL HEAD ASSY (1/2" ROD)CYL HEAD ASSY (1/2" ROD)
-
81700021 ROD SEALROD SEAL
-
91700022 CAP SEALCAP SEAL
-
101700025 SHAFT - 1/2"DIAX7.88"LSHAFT - 1/2"DIAX7.88"L
-
111700109 BANDED PISTON .094" ORIFICEBANDED PISTON .094" ORIFICE
-
111700031 PISTON WEAR BANDPISTON WEAR BAND
-
111700077 TOP - OUT WASHERTOP - OUT WASHER
-
111700078 BACK - UP WASHERBACK - UP WASHER
-
121700057 NUTNUT
-
131700023 IFPIFP
-
131700032 IFP WEAR BANDIFP WEAR BAND
-
131700048 IFP - O - RINGIFP - O - RING
-
141700076 PRESS - VALVE ASSYPRESS - VALVE ASSY
-
141700047 PRESS - VALVE O - RINGPRESS - VALVE O - RING
-
151700056 VALVE SCREWVALVE SCREW
-
157041976 SHOCK - IFS, IFP, 11X16.25, ALUM, ARSHOCK - IFS, IFP, 11X16.25, ALUM, AR
-
152200618 KIT, VALV.PISTONKIT, VALV.PISTON
