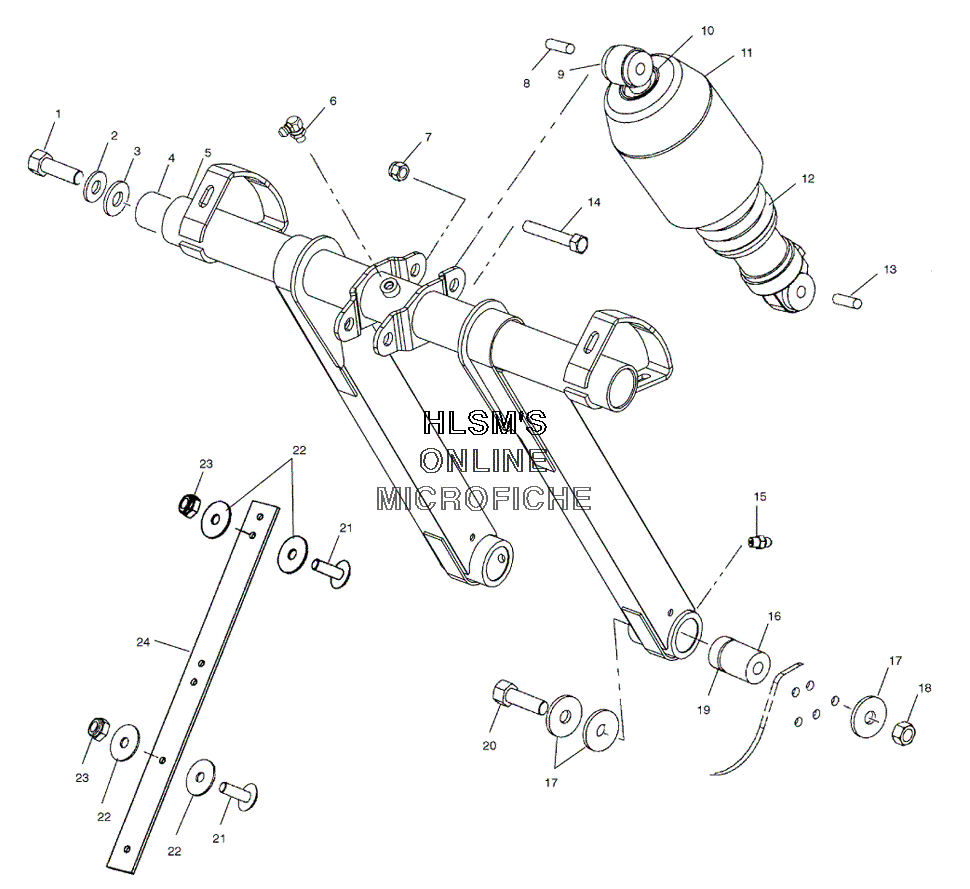

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 600 XC SP EDGE (S03NP6ESA/B) - 2003 года выпуска
-
№АртикулНазвание
-
17517435 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37555893 WASHER, FLATWASHER, FLAT
-
45132067 SHAFT, UPPERSHAFT, UPPER
-
51541779-067 WELD - ARM, FRONT TORQUE (BLACK)WELD - ARM, FRONT TORQUE (BLACK)
-
51541779-216 WELD - FRONT TORQUE ARM, EDGE, YELLOWWELD - FRONT TORQUE ARM, EDGE, YELLOW
-
67080510 FITTING, ZERK, 90 DEGREEFITTING, ZERK, 90 DEGREE
-
77542439 NUT, NYLOKNUT, NYLOK
-
85333905 SLEEVESLEEVE
-
97041975 SHOCK - F/T IFPSHOCK - F/T IFP
-
105020618 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
115433503 SHIELD - SPRING, 3.00SHIELD - SPRING, 3.00
-
127041914-067 SPRING, COMP, 150#/175# (BLACK)SPRING, COMP, 150#/175# (BLACK)
-
135333906 SLEEVESLEEVE
-
147515415 SCREWSCREW
-
157080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
165133308 SHAFT - .453X.999X1.60, ORINGSHAFT - .453X.999X1.60, ORING
-
177556156 WASHERWASHER
-
187547066 NUTNUT
-
195412022 O - RINGO - RING
-
207512597 BOLTBOLT
-
217517313 SCREWSCREW
-
227556175 WASHERWASHER
-
237542344 NUT, NYLOKNUT, NYLOK
-
245412140 STRAP - LIM, FRTSTRAP - LIM, FRT
