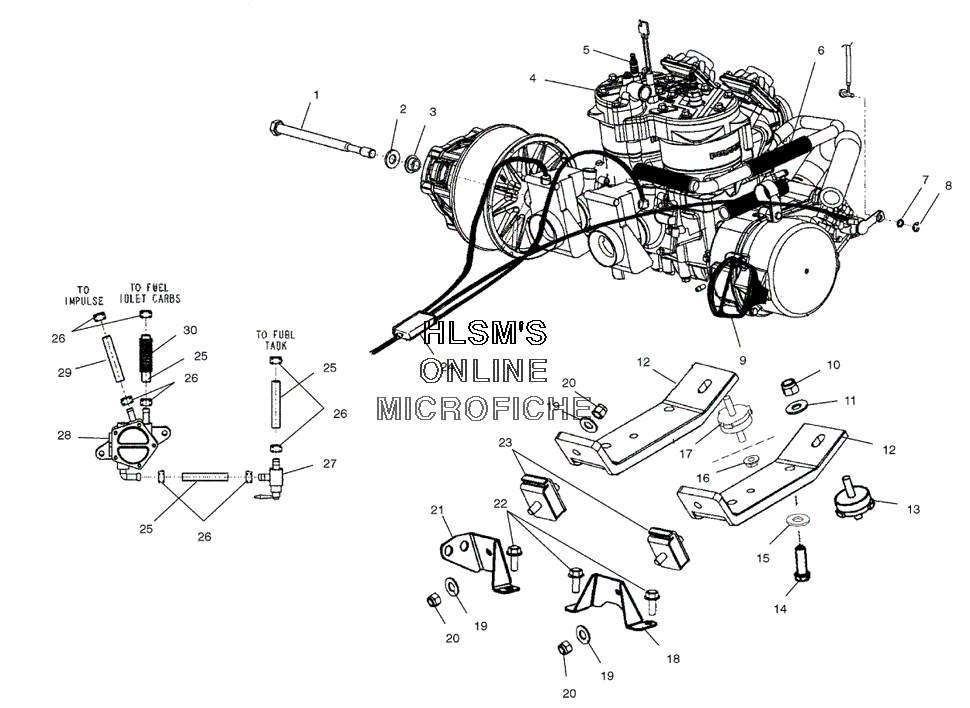

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 700 XC SP EDGE M-10 F/O (S03NE7CS) - 2003 года выпуска

№

Артикул

Название
1

7517501 SCREW

SCREW

6 870 ₽
2

7556003 WASHER

WASHER

1 670 ₽
3

5132441 WASHER, CLUTCH RETAINER

WASHER, CLUTCH RETAINER

3 120 ₽
4

2202234 SHORT BLOCK ASSEMBLY

SHORT BLOCK ASSEMBLY

0 ₽
6

5521398-13 CONDUIT, FLEX

CONDUIT, FLEX

1 460 ₽
7

7555944 WASHER

WASHER

250 ₽
8

7710427 RING - E, RET.

RING - E, RET.

670 ₽
9

5431499-070 HANDLE - RECOIL, BLACK

HANDLE - RECOIL, BLACK

2 500 ₽
10

7542451 NUT, NYLOK

NUT, NYLOK

150 ₽
11

7555893 WASHER, FLAT

WASHER, FLAT

110 ₽
12

5245462 STRAP - ENGINE MOUNT, S80, (LEFT)

STRAP - ENGINE MOUNT, S80, (LEFT)

8 950 ₽
12

5245475 STRAP - ENGINE MOUNT, S80, (RIGHT)

STRAP - ENGINE MOUNT, S80, (RIGHT)

10 400 ₽
13

3021290 MOUNT - ENGINE, 3/8 - 16 50 DUR

MOUNT - ENGINE, 3/8 - 16 50 DUR

0 ₽
14

7512539 BOLT

BOLT

630 ₽
15

7553101 WASHER, SPRING LOCK

WASHER, SPRING LOCK

460 ₽
16

7547180 NUT - FLANGED, 3/8 - 16 NYLON

NUT - FLANGED, 3/8 - 16 NYLON

630 ₽
17

3021220 MOUNT - ENGINE, 3/8 - 16

MOUNT - ENGINE, 3/8 - 16

3 750 ₽
18

5245044 BRKT - ENGINE MOUNT, (RIGHT), FORMED

BRKT - ENGINE MOUNT, (RIGHT), FORMED

3 120 ₽
19

7555806 WASHER, FLAT

WASHER, FLAT

60 ₽
20

7547008 NUT, FLEXLOCK

NUT, FLEXLOCK

1 000 ₽
21

1013397 WELD - ENG MOUNT BRKT, (LEFT)

WELD - ENG MOUNT BRKT, (LEFT)

4 370 ₽
22

7517854 SCREW

SCREW

830 ₽
23

3021206 MOUNT - ENGINE, 3/8 - 16, RECT

MOUNT - ENGINE, 3/8 - 16, RECT

9 780 ₽
24

7081051 CABLE - THROTTLE

CABLE - THROTTLE

11 440 ₽
25

8350017-600 FUEL, LINE, ETHER, RED, 5/16"

FUEL, LINE, ETHER, RED, 5/16"

0 ₽
26

7080003 CLAMP, HOSE

CLAMP, HOSE

110 ₽
27

7052268 VLV, FUEL SHUTOFF, 5/16 ID

VLV, FUEL SHUTOFF, 5/16 ID

0 ₽
28

2520275 PUMP - FUEL, 5/16 IN/OUT, MIK

PUMP - FUEL, 5/16 IN/OUT, MIK

26 000 ₽
29

8450040-600 LINE FUEL, 1/4 ID(600 CM.)

LINE FUEL, 1/4 ID(600 CM.)

13 520 ₽
30

8360052-25 TUBING - CONVOLUTED, .50ID, 25CM

TUBING - CONVOLUTED, .50ID, 25CM

3 750 ₽
