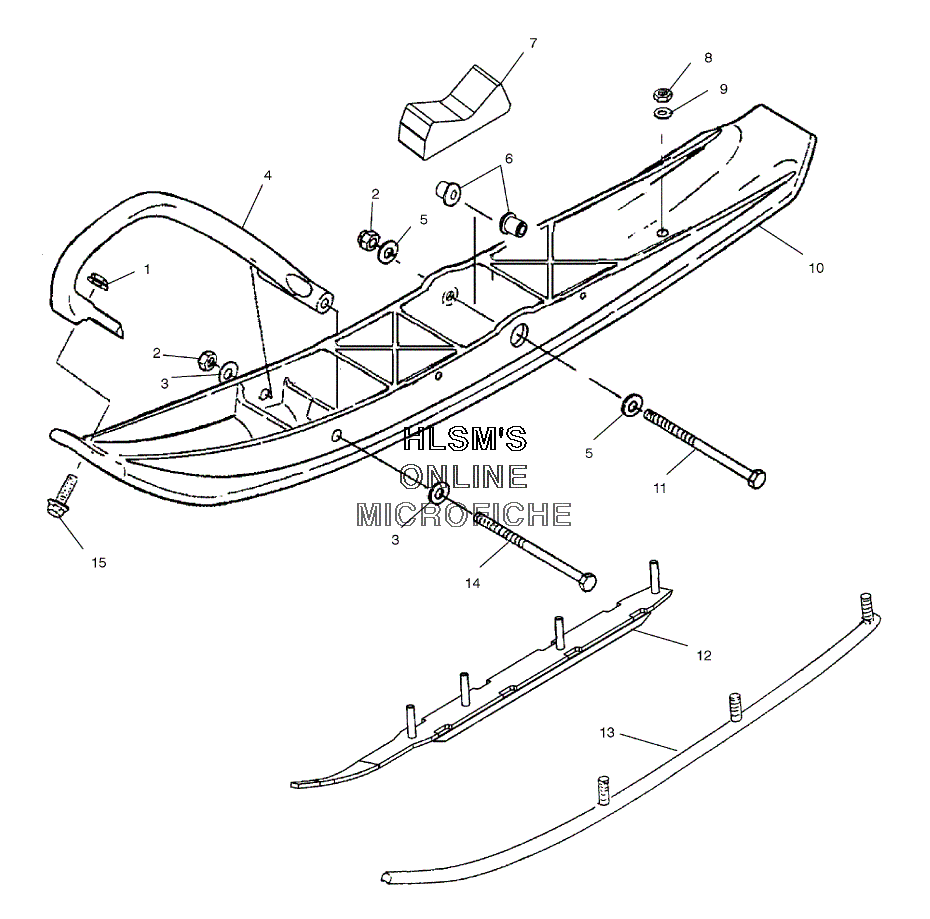

SKI ASSEMBLY для Polaris 700 XC SP EDGE M-10 F/O (S03NE7CS) - 2003 года выпуска
-
№АртикулНазвание
-
17542321 NUT, FLANGENUT, FLANGE
-
27542439 NUT, NYLOKNUT, NYLOK
-
37555832 WASHERWASHER
-
45434165-216 TOE - PLASTIC SKI, S/YELLOWTOE - PLASTIC SKI, S/YELLOW
-
45434165-070 TOE - PLASTIC SKI, BLACKTOE - PLASTIC SKI, BLACK
-
45434165-293 TOE - PLASTIC SKI, BLACKTOE - PLASTIC SKI, BLACK
-
57556130 WASHERWASHER
-
65132637 BUSHING, METAL, .390 IDBUSHING, METAL, .390 ID
-
75412018 STOP, RUBBERSTOP, RUBBER
-
87542324 NUT, NYLOK (QTY 8 FOR DUAL, QTY. 6 FOR STD.)NUT, NYLOK (QTY 8 FOR DUAL, QTY. 6 FOR STD.)
-
97556175 WASHERWASHER
-
101820929-070 ASSY. - COMP SKI, BLANK, SVC, BLACKASSY. - COMP SKI, BLANK, SVC, BLACK
-
117517968 SCREWSCREW
-
122874066 SKAG, ACCU - TRAC DUAL 4"X60 DEGRSKAG, ACCU - TRAC DUAL 4"X60 DEGR
-
131820461-067 SUBSTITUTED BY 2871688SUBSTITUTED BY 2871688
-
147515514 BOLTBOLT
-
157515307 BOLTBOLT
