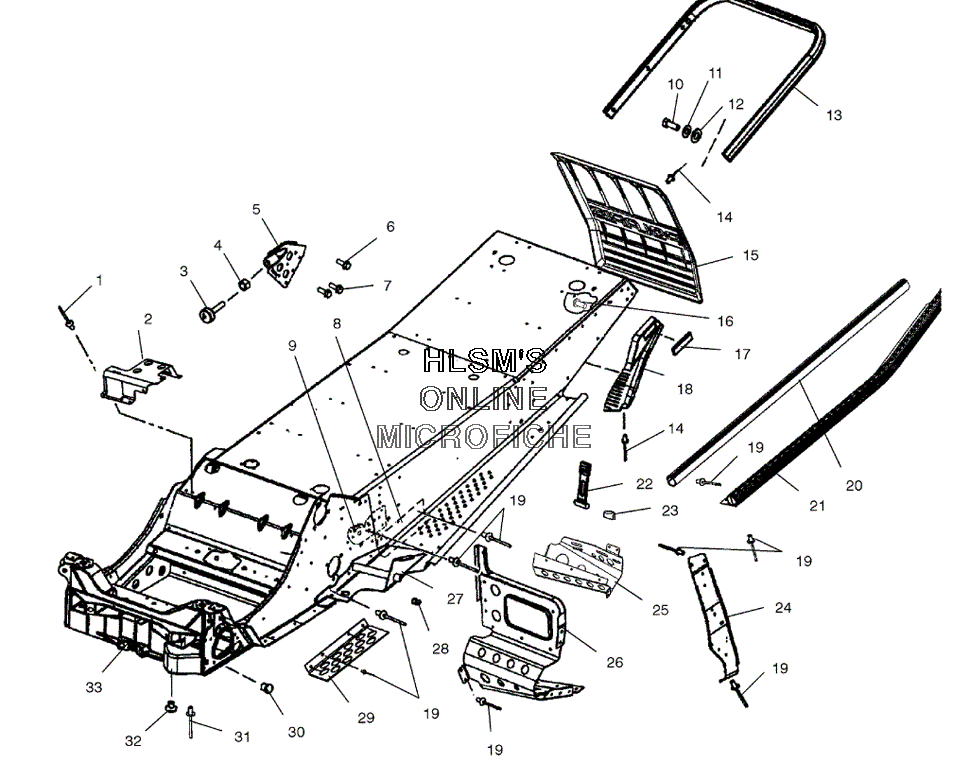

FRAME - CHASSIS для Polaris 700 XC SP EDGE M-10 F/O (S03NE7CS) - 2003 года выпуска

№

Артикул

Название
1

7621432 RIVET

RIVET

110 ₽
2

5246330 BRKT - OIL TANK/HOSE SUPPORT

BRKT - OIL TANK/HOSE SUPPORT

3 330 ₽
3

3110078 STOP, TORQUE

STOP, TORQUE

6 450 ₽
4

7542404 NUT

NUT

460 ₽
5

1013377 WELD - TORQUE STOP

WELD - TORQUE STOP

6 870 ₽
6

7517632 SCREW

SCREW

790 ₽
7

7517854 SCREW

SCREW

830 ₽
8

5244997-067 BRACE - LOWER, TUNNEL, BLACK, (LEFT) (M - 10)

BRACE - LOWER, TUNNEL, BLACK, (LEFT) (M - 10)

4 990 ₽
8

5244998-067 BRACE - LOWER, TUNNEL, BLACK, (RIGHT) (M - 10)

BRACE - LOWER, TUNNEL, BLACK, (RIGHT) (M - 10)

4 990 ₽
9

5244999-067 PAD - SUSP, FRONT, BLACK, (LEFT) (M - 10)

PAD - SUSP, FRONT, BLACK, (LEFT) (M - 10)

0 ₽
9

5245001-067 PAD - SUSP, FRONT, BLACK, (RIGHT) (M - 10)

PAD - SUSP, FRONT, BLACK, (RIGHT) (M - 10)

2 910 ₽
10

7512240 BOLT

BOLT

460 ₽
11

7552801 WASHER, SPRING LOCK

WASHER, SPRING LOCK

460 ₽
12

7558301 WASHER, FLAT

WASHER, FLAT

110 ₽
13

2632165-309 ASSY., BUMPER, REAR

ASSY., BUMPER, REAR

29 120 ₽
13

2632165-216 ASSY. - REAR BUMPER, SCR YLW

ASSY. - REAR BUMPER, SCR YLW

29 120 ₽
14

7621472 RIVET

RIVET

250 ₽
15

5433961-1038 FLAP - SNOW, SHORT, BLACK/WHT

FLAP - SNOW, SHORT, BLACK/WHT

19 760 ₽
15

5433979 FLAP - SNOW, EDGE X

FLAP - SNOW, EDGE X

0 ₽
16

7517441 SCREW, .75

SCREW, .75

630 ₽
17

2670133 REFLECTOR ASSY., RED

REFLECTOR ASSY., RED

1 460 ₽
18

2632443-070 ASSY. - SNOWSKIRT/REFLECTOR, BLACK, (LEFT)

ASSY. - SNOWSKIRT/REFLECTOR, BLACK, (LEFT)

12 480 ₽
18

2632444-070 ASSY. - SNOWSKIRT/REFLECTOR, BLACK, (RIGHT)

ASSY. - SNOWSKIRT/REFLECTOR, BLACK, (RIGHT)

12 480 ₽
19

7661637 RIVET, INTERLOCK, Z

RIVET, INTERLOCK, Z

150 ₽
20

5245118 BRACE - TUNNEL ROLL

BRACE - TUNNEL ROLL

5 410 ₽
21

5132903 GRIP - TUNNEL, COMMON, (LEFT)

GRIP - TUNNEL, COMMON, (LEFT)

0 ₽
21

5132904 GRIP - TUNNEL, COMMON, (RIGHT)

GRIP - TUNNEL, COMMON, (RIGHT)

0 ₽
22

5433150 STRAP

STRAP

4 160 ₽
23

5812352 PAD - CLUTCH GUARD

PAD - CLUTCH GUARD

1 870 ₽
24

5246310 SUPPORT - FOOTREST, (LEFT)

SUPPORT - FOOTREST, (LEFT)

4 990 ₽
24

5246311 SUPPORT - FOOTREST, (RIGHT)

SUPPORT - FOOTREST, (RIGHT)

4 990 ₽
25

5245457 MOUNT - CONSOLE, TOE CLIP, (LEFT)

MOUNT - CONSOLE, TOE CLIP, (LEFT)

6 870 ₽
25

5245458 MOUNT - CONSOLE, TOE CLIP, (RIGHT)

MOUNT - CONSOLE, TOE CLIP, (RIGHT)

6 870 ₽
26

5245288 FOOTREST - (LEFT), .080

FOOTREST - (LEFT), .080

35 360 ₽
26

5242740 SUBSTITUTED BY 5247205

SUBSTITUTED BY 5247205

18 720 ₽
27

2202059 KIT - MOUNT, TRAILING ARM, (LEFT)

KIT - MOUNT, TRAILING ARM, (LEFT)

37 440 ₽
27

2202060 KIT - MOUNT, TRAILING ARM, (RIGHT)

KIT - MOUNT, TRAILING ARM, (RIGHT)

0 ₽
28

5412276 GROMMET - M10 ACE WIRE

GROMMET - M10 ACE WIRE

580 ₽
28

7081085 PLUG - BARBED (M - 10)

PLUG - BARBED (M - 10)

1 250 ₽
29

5245836 GUARD - BELT, EDGE, W/BEND

GUARD - BELT, EDGE, W/BEND

6 240 ₽
30

7080416 PLUG, HOLE

PLUG, HOLE

750 ₽
31

7661639 SUBSTITUTED BY 7661130

SUBSTITUTED BY 7661130

250 ₽
32

7081076 PLUG - HOLE

PLUG - HOLE

460 ₽
33

5132292 BULKHEAD - FRONT, MACH

BULKHEAD - FRONT, MACH

29 120 ₽
-

1013778-309 ASSY. - CHASSIS, SVC, EDGE, NATURAL

ASSY. - CHASSIS, SVC, EDGE, NATURAL

0 ₽
-

1013795-1124 ASSY. - CHASSIS, EDGE X, SVC, NAT/YLW

ASSY. - CHASSIS, EDGE X, SVC, NAT/YLW

0 ₽
-

1013805-309 ASSY. - CHASSIS, SVC, EDGE, NATURAL, (M-10)

ASSY. - CHASSIS, SVC, EDGE, NATURAL, (M-10)

0 ₽
-

1013811-1124 ASSY. - CHASSIS, SVC, M - 10X, NAT/YLW (X)

ASSY. - CHASSIS, SVC, M - 10X, NAT/YLW (X)

0 ₽
