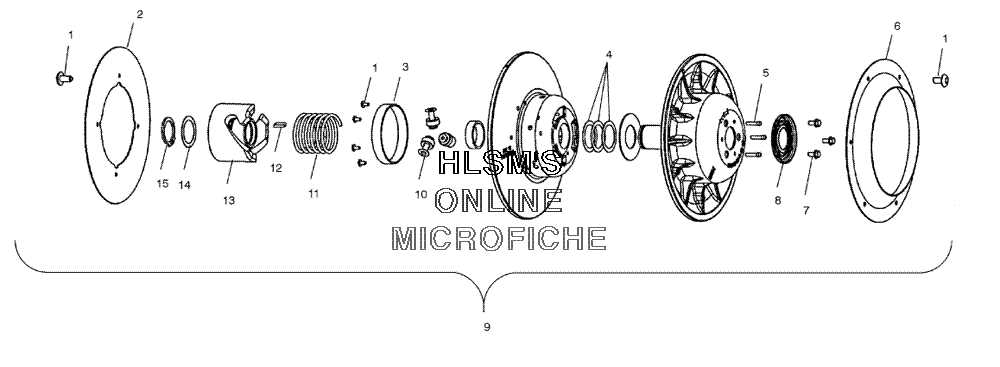

CLUTCH - DRIVEN для Polaris TRAIL TOURING (S03ST5BS) - 2003 года выпуска
-
№АртикулНазвание
-
17512048 SCREWSCREW
-
25243158 PLATE DRIVEN, VENTEDPLATE DRIVEN, VENTED
-
33569803 BUSHING DRIVEN LARGE DUBUSHING DRIVEN LARGE DU
-
47555898 WASHER (.02)WASHER (.02)
-
47556076 WASHER (.025)WASHER (.025)
-
47555865 WASHER (.075)WASHER (.075)
-
55020653 PIN ADJUSTABLE DRIVENPIN ADJUSTABLE DRIVEN
-
65243157 CAP DRIVEN, VENTEDCAP DRIVEN, VENTED
-
77515133 SCREWSCREW
-
85222878 CAM, DRIVEN ADJUSTABLECAM, DRIVEN ADJUSTABLE
-
91322015 DRIVEN CLUTCH, ASSY BASIC 208 (INCL. ALL LESS 2, 6, 11, 13)DRIVEN CLUTCH, ASSY BASIC 208 (INCL. ALL LESS 2, 6, 11, 13)
-
105631061 ROLLER, DRIVENROLLER, DRIVEN
-
107661133 PIN ROLLER DRIVENPIN ROLLER DRIVEN
-
107556145 SHIMSHIM
-
117042066 SPRING CLUTCH DRIVEN (GREEN/BLACK)SPRING CLUTCH DRIVEN (GREEN/BLACK)
-
127721129 KEYKEY
-
135133322 RAMP DRIVEN ROLLER 36D REV MACHRAMP DRIVEN ROLLER 36D REV MACH
-
147556804 WASHER (.30)WASHER (.30)
-
157714804 RING, RETAININGRING, RETAINING
