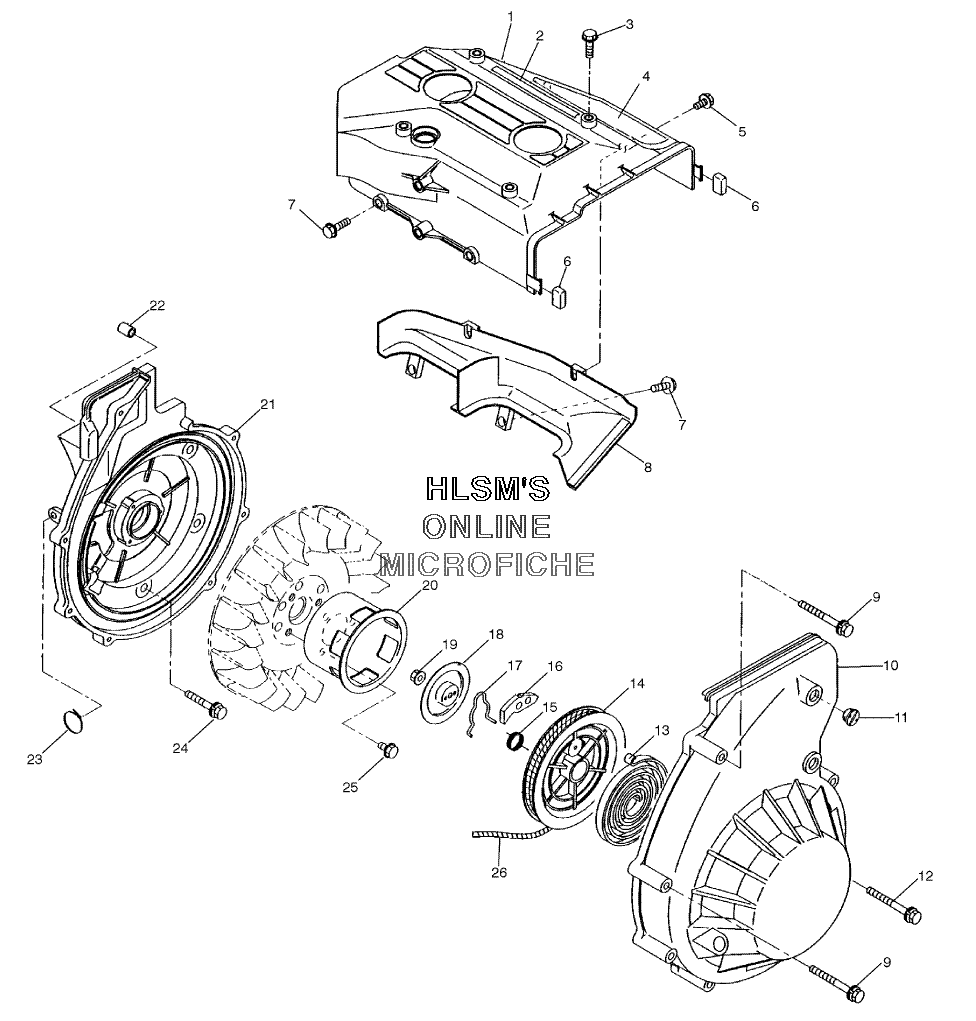

STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING для Polaris TRAIL TOURING (S03ST5BS) - 2003 года выпуска
-
№АртикулНазвание
-
13086991 BAFFLE 1 CYLINDER ASSYBAFFLE 1 CYLINDER ASSY
-
27079511 DECAL "POLARIS" ENGINE SHROUDDECAL "POLARIS" ENGINE SHROUD
-
33084566 BOLT, FLANGEBOLT, FLANGE
-
47079510 DECAL "550" ENGINE SHROUDDECAL "550" ENGINE SHROUD
-
53085693 BOLT, FLANGEBOLT, FLANGE
-
63085690 CAP, CYLINDER BAFFLECAP, CYLINDER BAFFLE
-
73085694 BOLT, FLANGEBOLT, FLANGE
-
83085691 BAFFLE #2, CYLINDERBAFFLE #2, CYLINDER
-
93083550 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
103087206 STARTER RECOIL, ASSY (INCL. 10, 13-19, 26)STARTER RECOIL, ASSY (INCL. 10, 13-19, 26)
-
103087180 STARTER CASE COMPLETESTARTER CASE COMPLETE
-
113086792 PLUG, RUBBERPLUG, RUBBER
-
123082030 BOLT AND WASHER, ASSYBOLT AND WASHER, ASSY
-
133083376 SPRING SPIRALSPRING SPIRAL
-
143083377 REEL, ASSYREEL, ASSY
-
153083463 SPRING RETURNSPRING RETURN
-
163087207 RATCHETRATCHET
-
173083379 SPRING FRICTIONSPRING FRICTION
-
183083464 PLATE, FRICTIONPLATE, FRICTION
-
193083381 NUT, FLANGENUT, FLANGE
-
203087181 PULLEY, STARTERPULLEY, STARTER
-
213087020 HOUSING BLOWERHOUSING BLOWER
-
223084857 PIN, STRAIGHTPIN, STRAIGHT
-
233084823 BAND, WIREBAND, WIRE
-
243084225 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
253085688 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
262870621 ROPE, NYL. STARTER (100FT)ROPE, NYL. STARTER (100FT)
