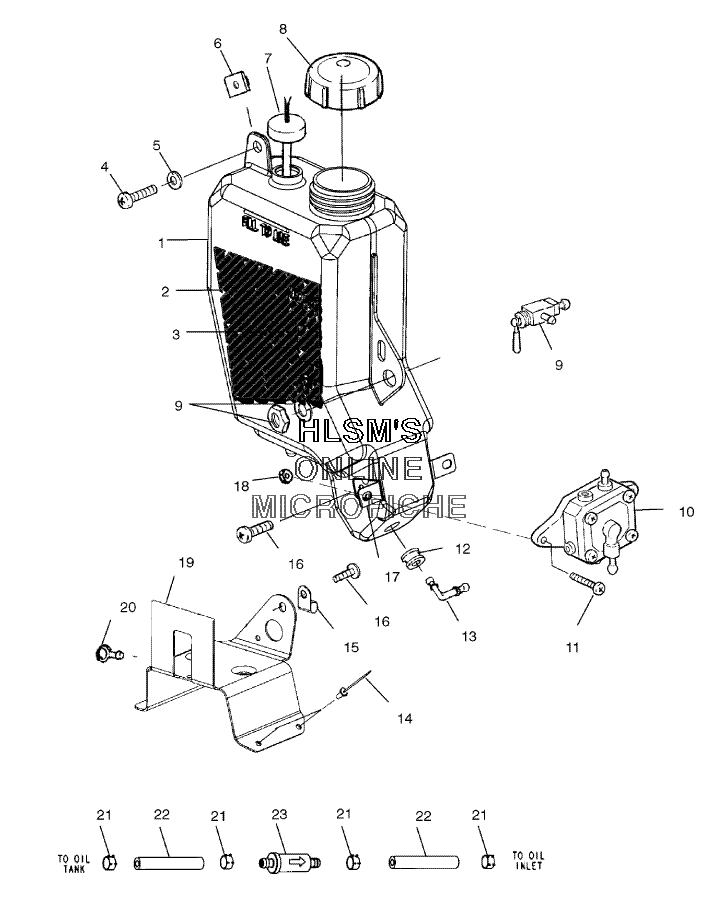

OIL TANK ASSEMBLY для Polaris TRAIL TOURING (S03ST5BS) - 2003 года выпуска
-
№АртикулНазвание
-
11253352 OIL TANK W/FOIL, ASSY FCOIL TANK W/FOIL, ASSY FC
-
25811934 FOIL, OIL TANKFOIL, OIL TANK
-
37077442 DECAL, FUEL SHUT-OFFDECAL, FUEL SHUT-OFF
-
47512276 BOLTBOLT
-
57558302 WASHER WROUGHTWASHER WROUGHT
-
67670096 NUTNUT
-
74110134 SENSOR, OIL LEVELSENSOR, OIL LEVEL
-
81240094 CAP OIL, VENTED/CUSTOM COLORCAP OIL, VENTED/CUSTOM COLOR
-
117517264 SCREWSCREW
-
127052028 GROMMETGROMMET
-
137052208 FTTNG, 90 DEG. PRESS-ONFTTNG, 90 DEG. PRESS-ON
-
147661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
157080367 CLAMP, CABLECLAMP, CABLE
-
167517615 SCREWSCREW
-
175242680 BRACKET FUEL PUMP MOUNT ZBRACKET FUEL PUMP MOUNT Z
-
187542122 NUT NYLOKNUT NYLOK
-
195244339 BRACKET OIL TANK W/BRIDGEBRACKET OIL TANK W/BRIDGE
-
204020139 CLIP (ROSEBUD)CLIP (ROSEBUD)
-
217080307 CLAMP, HOSECLAMP, HOSE
-
228450003-1525 LINE, FUEL (1/4 ID/1525 CM.)LINE, FUEL (1/4 ID/1525 CM.)
-
232530009 FILTER, SMALL IN-LINEFILTER, SMALL IN-LINE
