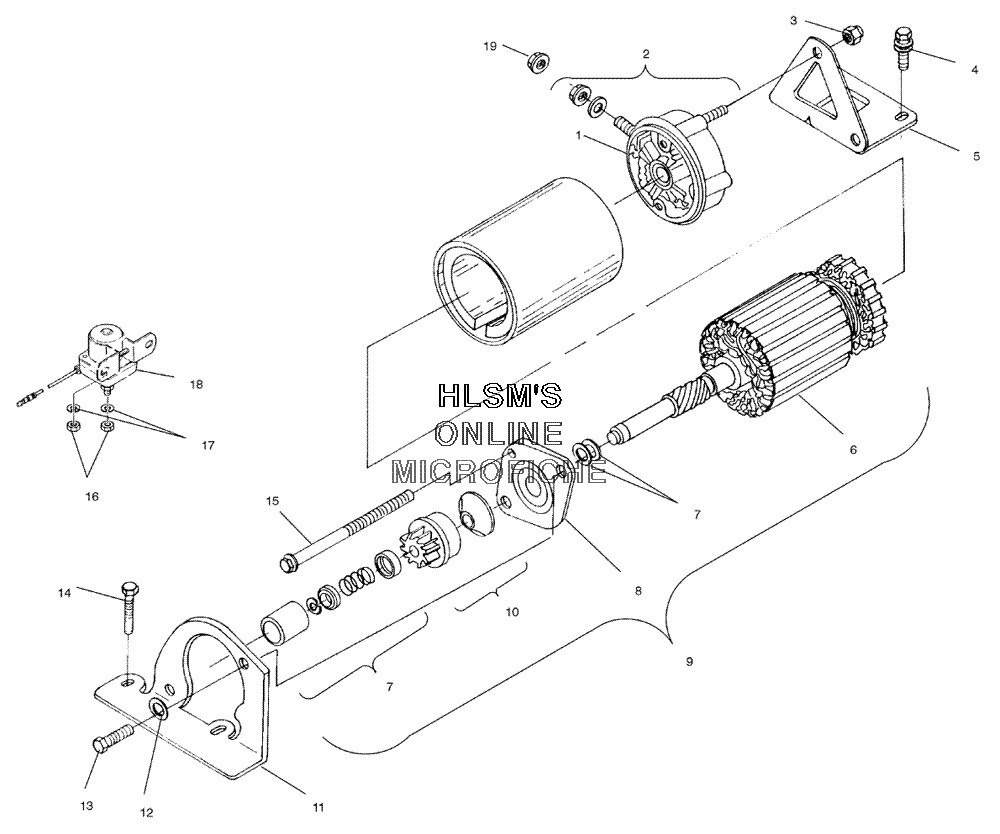

STARTING MOTOR для Polaris TRAIL TOURING (S03ST5BS) - 2003 года выпуска
-
№АртикулНазвание
-
12200759 BRUSH AND SPRING, KITBRUSH AND SPRING, KIT
-
22200758 COMMUTATOR CAP ASSY KIT (INCL. 1)COMMUTATOR CAP ASSY KIT (INCL. 1)
-
37542153 NUT, NYLOK FLANGEDNUT, NYLOK FLANGED
-
47516815 SCREWSCREW
-
55240956 BRACKET STARTER (REAR)BRACKET STARTER (REAR)
-
62200756 ARMATURE ASSY, KITARMATURE ASSY, KIT
-
72200755 DRIVE HARDWARE KITDRIVE HARDWARE KIT
-
82200757 DRIVECAP ASSY KITDRIVECAP ASSY KIT
-
94170006 MOTOR, STARTER DOMESTICMOTOR, STARTER DOMESTIC
-
102200754 DRIVE ASSY KITDRIVE ASSY KIT
-
115241271 BRACKET, STARTER (FRONT)BRACKET, STARTER (FRONT)
-
127552603 WASHER SPRING LOCKWASHER SPRING LOCK
-
137512492 SCREWSCREW
-
147516730 SCREW AND WASHER, KITSCREW AND WASHER, KIT
-
152200753 SCREW, KITSCREW, KIT
-
163082939 NUTNUT
-
173080077 WASHER SPRINGWASHER SPRING
-
183083211 MAGNETIC, SWITCH (INCL. 16, 17)MAGNETIC, SWITCH (INCL. 16, 17)
-
197542103 NUT, FLEXLOCNUT, FLEXLOC
