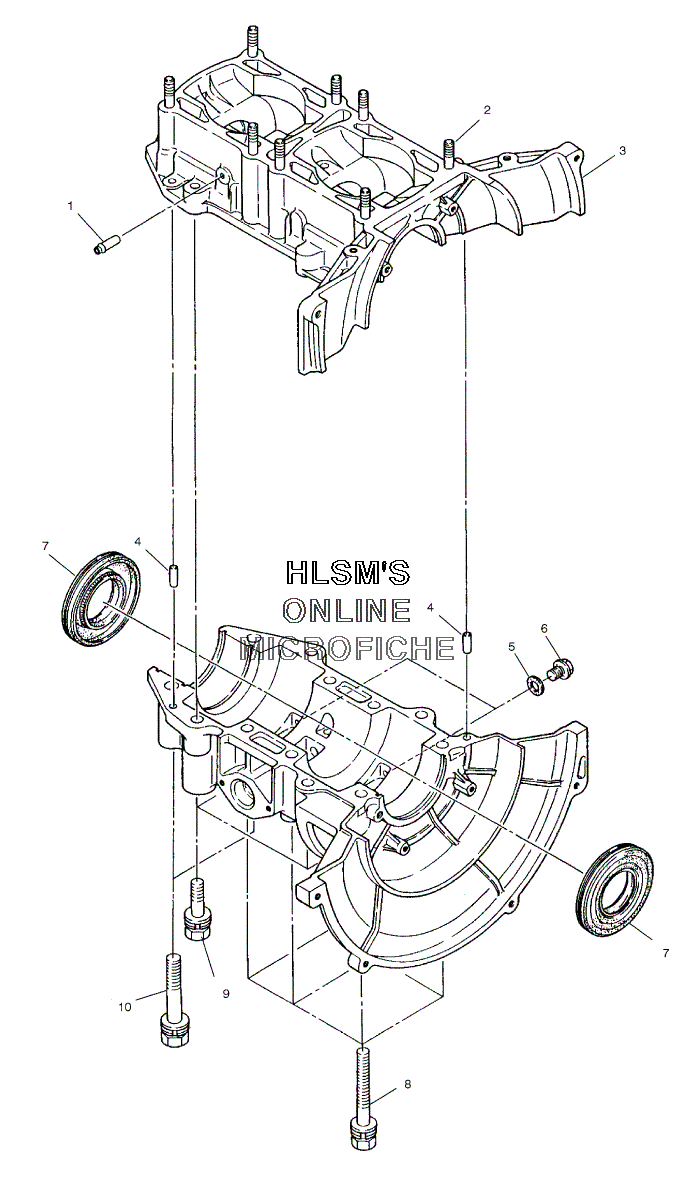

CRANKCASE ASSEMBLY для Polaris 340 TOURING (S04NT3AS) - 2004 года выпуска
-
№АртикулНазвание
-
13083798 PIPE, PULSEPIPE, PULSE
-
23083564 STUDSTUD
-
33089463 CRANKCASE ASSY (INCL. 1-4, 8-10)CRANKCASE ASSY (INCL. 1-4, 8-10)
-
43080103 PIN, DOWELPIN, DOWEL
-
53082758 WASHER, FLATWASHER, FLAT
-
63083568 BOLT, FLANGEBOLT, FLANGE
-
73083045 SEAL, OILSEAL, OIL
-
83080739 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
93083566 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
103083565 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
