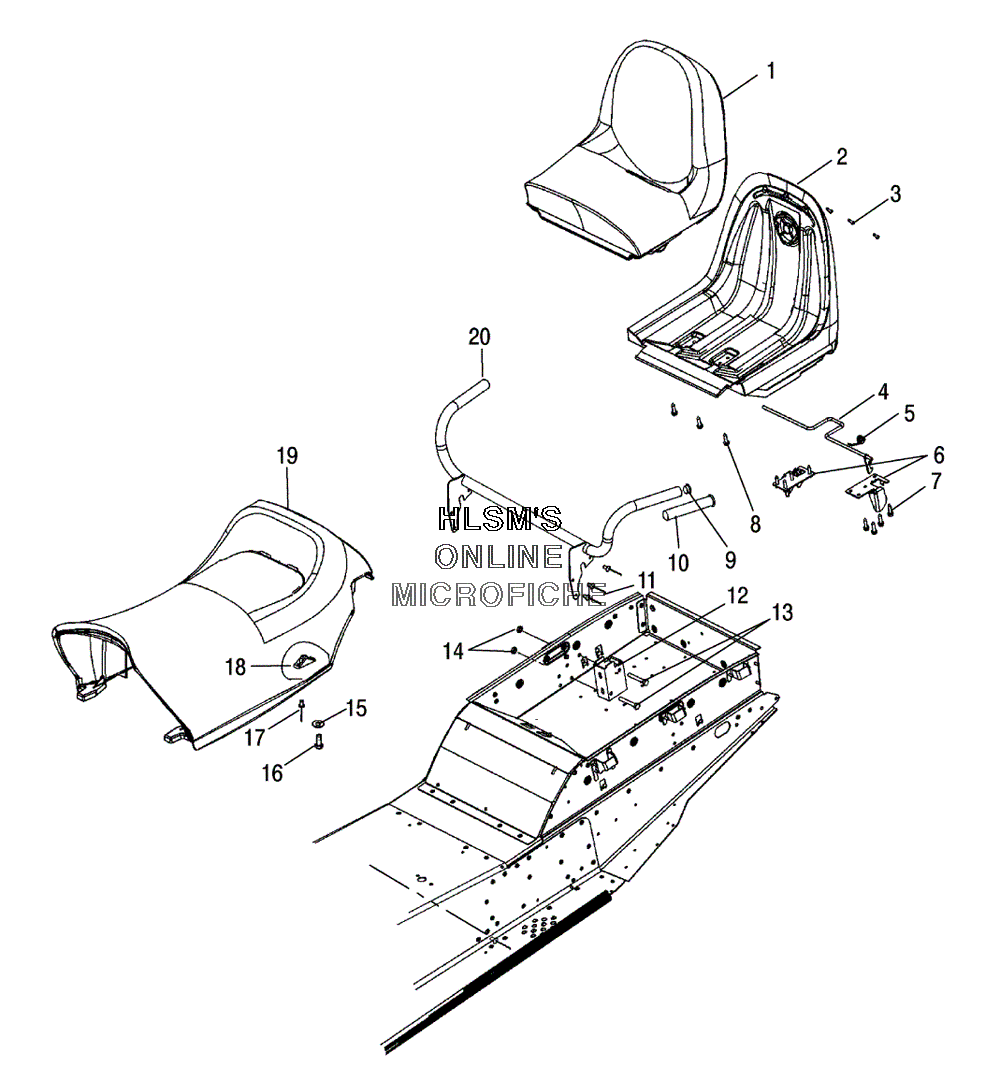

SEAT W/ TAILLIGHT для Polaris 340 TOURING (S04NT3AS) - 2004 года выпуска
-
№АртикулНазвание
-
12683384 BASE SEAT PASSENGER SECONDARY ASSYBASE SEAT PASSENGER SECONDARY ASSY
-
12683385 SEAT, COVER PASSENGER ASSYSEAT, COVER PASSENGER ASSY
-
22683383 SEAT, PASSENGER ASSY (INCL. 1-8)SEAT, PASSENGER ASSY (INCL. 1-8)
-
37512026 SCREWSCREW
-
41013935 WELD LATCH, SEATWELD LATCH, SEAT
-
57042246 SPRING SEAT LATCH, TORSIONSPRING SEAT LATCH, TORSION
-
65247090 PLATE LATCH MOUNT (LEFT)PLATE LATCH MOUNT (LEFT)
-
65247091 PLATE LATCH MOUNT (RIGHT)PLATE LATCH MOUNT (RIGHT)
-
77621485 RIVETRIVET
-
87512098 SCREWSCREW
-
95431096 PLUGPLUG
-
105412306 GRIP HANDLEBARGRIP HANDLEBAR
-
117661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
125246855 TUBE STRIKERTUBE STRIKER
-
137512130 BOLTBOLT
-
147542122 NUT NYLOKNUT NYLOK
-
157558301 WASHER, FLATWASHER, FLAT
-
167517219 SCREWSCREW
-
177621319 RIVETRIVET
-
185631194 NUT SEATNUT SEAT
-
192683267 SEAT ASSYSEAT ASSY
-
192683268 SEAT COVER ASSYSEAT COVER ASSY
-
201014241-067 WELD GRABHANDLE, NON ADJUST (BLACK)WELD GRABHANDLE, NON ADJUST (BLACK)
-
202683071 BASE SEAT, PASSENGER PRIMARY ASSY (INCL. 2-8)BASE SEAT, PASSENGER PRIMARY ASSY (INCL. 2-8)
