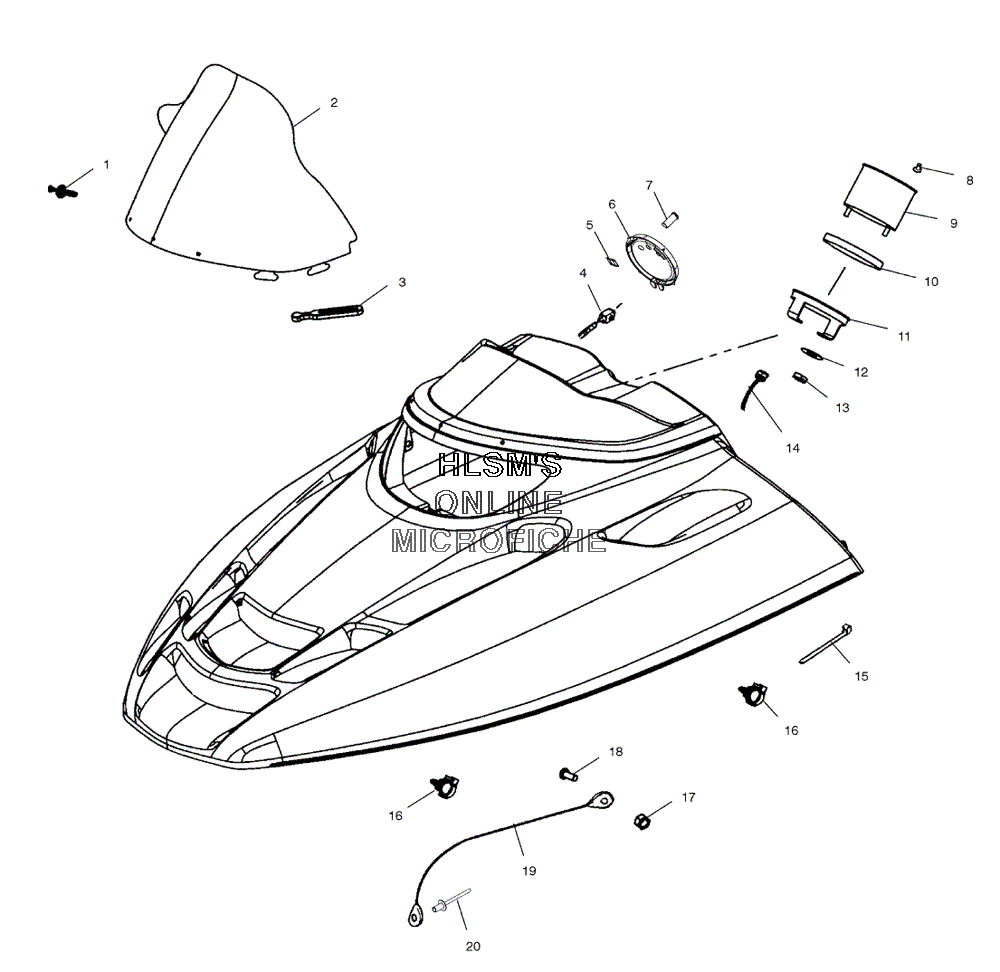

WINDSHIELD/GUAGES/HOOD RETAINER для Polaris 340 TOURING (S04NT3AS) - 2004 года выпуска
-
№АртикулНазвание
-
17621509 RIVET, PLASTI LOCKRIVET, PLASTI LOCK
-
25435044 WINDSHIELD (17")WINDSHIELD (17")
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
42461031 HARNESS JUMPER, REVERSE LIGHTHARNESS JUMPER, REVERSE LIGHT
-
57670133 RETAINER BOLT/LAMP (1/2")RETAINER BOLT/LAMP (1/2")
-
65434081 PLUG DASH (5" WITH SINGLE 1/2"HOLE)PLUG DASH (5" WITH SINGLE 1/2"HOLE)
-
74010687 INDICATOR REVERSE (1/2 DIA)INDICATOR REVERSE (1/2 DIA)
-
83280186 KNOB, TRIP ODOMETER THEAD (LEFT)KNOB, TRIP ODOMETER THEAD (LEFT)
-
93280411 SPEEDOMETER, 5" 120MPH ASSY (WHITE/BLACK)SPEEDOMETER, 5" 120MPH ASSY (WHITE/BLACK)
-
94030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
103280209 CUSHION, TACHOMETER/SPEEDOMETER, RUBBERCUSHION, TACHOMETER/SPEEDOMETER, RUBBER
-
113280210 BRACKET, TACHOMETER/SPEEDOMETER ( 5")BRACKET, TACHOMETER/SPEEDOMETER ( 5")
-
123280157 WASHER, FLATWASHER, FLAT
-
137546703 NUT, NYLOKNUT, NYLOK
-
143280385 CABLE SPEEDOMETERCABLE SPEEDOMETER
-
157080138 CABLE TIECABLE TIE
-
164010589 CLIP PLASTIC, DART NYLONCLIP PLASTIC, DART NYLON
-
177541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
187512018 SCREWSCREW
-
197080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
207661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
Все узлы модели:
- BRAKE ASSEMBLY
- BUMPER/HITCH FLAP
- CARBURETOR ASSEMBLY
- CARGO BOX W/ TAILLIGHT ASSY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- FUEL PUMP
- FUEL TANK
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD - FOAM/FOIL/SCREENS
- HOOD ASSEMBLY W/ HEADLIGHT
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ TAILLIGHT
- STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- STEERING ASSEMBLY #1
- STEERING ASSEMBLY #2
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT W/ SKI
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
- • WINDSHIELD/GUAGES/HOOD RETAINER
