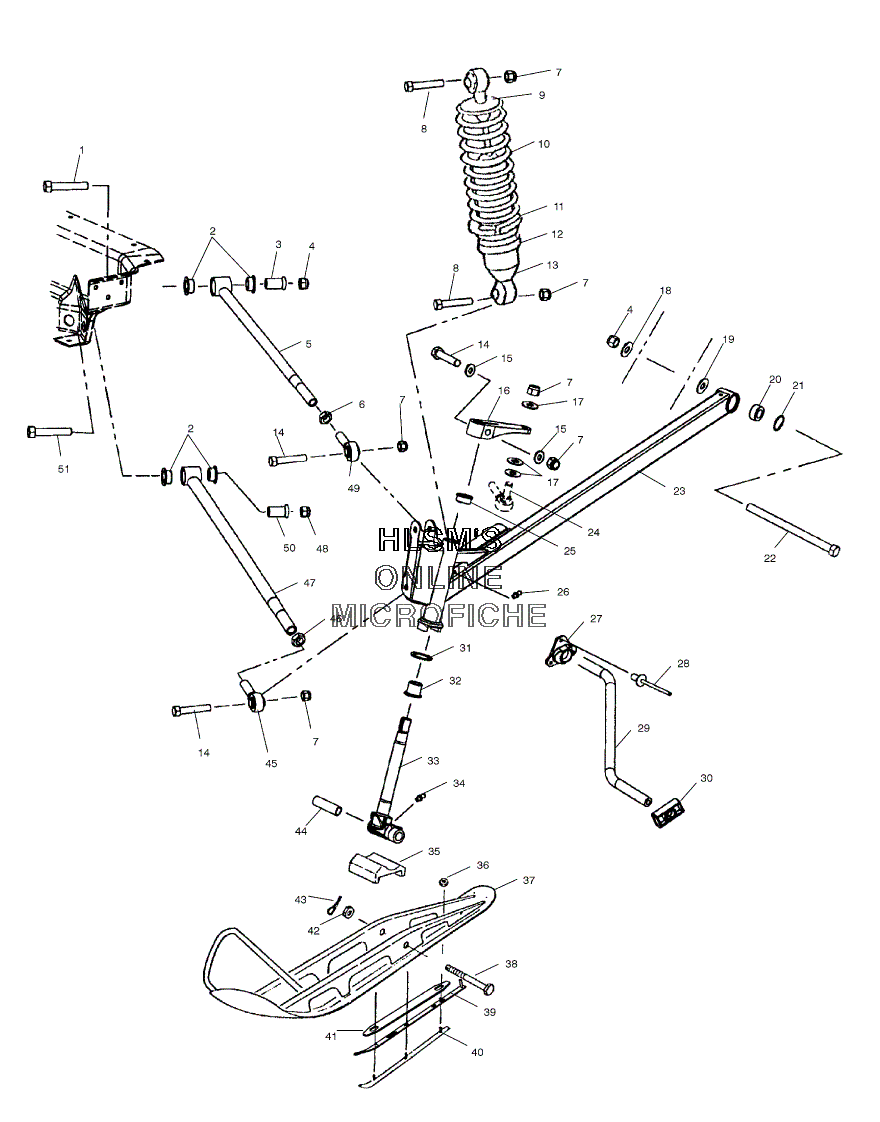

SUSPENSION - FRONT W/ SKI для Polaris 340 TOURING (S04NT3AS) - 2004 года выпуска
-
№АртикулНазвание
-
17517980 BOLT HEXAGON CAPBOLT HEXAGON CAP
-
25434036 BUSHING, PIVOT (INNER)BUSHING, PIVOT (INNER)
-
35132779 BUSHING SHOULDERBUSHING SHOULDER
-
47547066 NUT NYLOK YNUT NYLOK Y
-
51820679-385 WELD RADIUS ROD (UPPER/CLOUD SILVER)WELD RADIUS ROD (UPPER/CLOUD SILVER)
-
67542520 NUT, JAMNUT, JAM
-
77542439 NUT, NYLOKNUT, NYLOK
-
87515433 SCREWSCREW
-
95630580 RETAINER SPRING SLOTTEDRETAINER SPRING SLOTTED
-
107041551-067 SPRING COMPRESSION, IFS (BLACK)SPRING COMPRESSION, IFS (BLACK)
-
115431734 RING, SPRING PRELOAD ADJUSTERRING, SPRING PRELOAD ADJUSTER
-
121500063 RETAINER, SPRING BODY THREADEDRETAINER, SPRING BODY THREADED
-
137041932 SHOCK IFS, NITREXSHOCK IFS, NITREX
-
147517583 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
157555832 WASHERWASHER
-
165132728 ARM STEERING, MACHINEDARM STEERING, MACHINED
-
177555797 WASHER, FLATWASHER, FLAT
-
187555820 WASHER, FLATWASHER, FLAT
-
195132364 CUP, TRAILING ARM MOUNTCUP, TRAILING ARM MOUNT
-
207061042 BEARING SPHERICAL, 7/16 PLASTICBEARING SPHERICAL, 7/16 PLASTIC
-
217710437 RING, RETAININGRING, RETAINING
-
227512099 SCREWSCREW
-
231821165-385 TRAILING ARM, SVC ASSY (CLOUD SILVER) (INCL. 20, 21)TRAILING ARM, SVC ASSY (CLOUD SILVER) (INCL. 20, 21)
-
231821166-385 TRAILING ARM, SVC ASSY (CLOUD SILVER) (INCL. 20, 21)TRAILING ARM, SVC ASSY (CLOUD SILVER) (INCL. 20, 21)
-
253573909 BUSHING FLANGEBUSHING FLANGE
-
267080433 FITTING, LUBRICATION THREADEDFITTING, LUBRICATION THREADED
-
275433814 BUSHING, TORSION BAR (9/16")BUSHING, TORSION BAR (9/16")
-
287621452 RIVETRIVET
-
295244557-067 BAR, TORSION (BLACK)BAR, TORSION (BLACK)
-
305434371 SLIDE TORSION BAR 9/16 ANTIRATTLESLIDE TORSION BAR 9/16 ANTIRATTLE
-
317556509 BUSHINGBUSHING
-
323574208 BUSHING, FLANGEDBUSHING, FLANGED
-
336230225-067 SHAFT SPINDLE, WITH STEER STOP (BLACK)SHAFT SPINDLE, WITH STEER STOP (BLACK)
-
347080306 FITTING, LUBE WITH BALL CHECKFITTING, LUBE WITH BALL CHECK
-
355411083 STOP, RUBBERSTOP, RUBBER
-
367542324 NUT, NYLOKNUT, NYLOK
-
371820430-067 SKI WELDSKI WELD
-
387515462 SCREWSCREW
-
391011829-067 PLATE, SKAGPLATE, SKAG
-
392870976 CARBIDE, EZ STEER KIT (INCL. SKAG AND PLATE)CARBIDE, EZ STEER KIT (INCL. SKAG AND PLATE)
-
401820318-067 SKAG (BLACK)SKAG (BLACK)
-
415245145-067 SHIM SKAG PLATE (BLACK)SHIM SKAG PLATE (BLACK)
-
427542438 NUT, CASTLENUT, CASTLE
-
437661209 PIN COTTERPIN COTTER
-
445010158 BUSHING, PIVOTBUSHING, PIVOT
-
457061060 ROD END, RADIUS (1/2)ROD END, RADIUS (1/2)
-
467542711 NUT JAMNUT JAM
-
471820677-385 WELD RADIUS ROD (LOWER/CLOUD SILVER)WELD RADIUS ROD (LOWER/CLOUD SILVER)
-
487547065 NUT NYLOK YNUT NYLOK Y
-
497061061 ROD END, RADIUS (7/16)ROD END, RADIUS (7/16)
-
505132780 BUSHING SHOULDERBUSHING SHOULDER
-
517512684 BOLTBOLT
