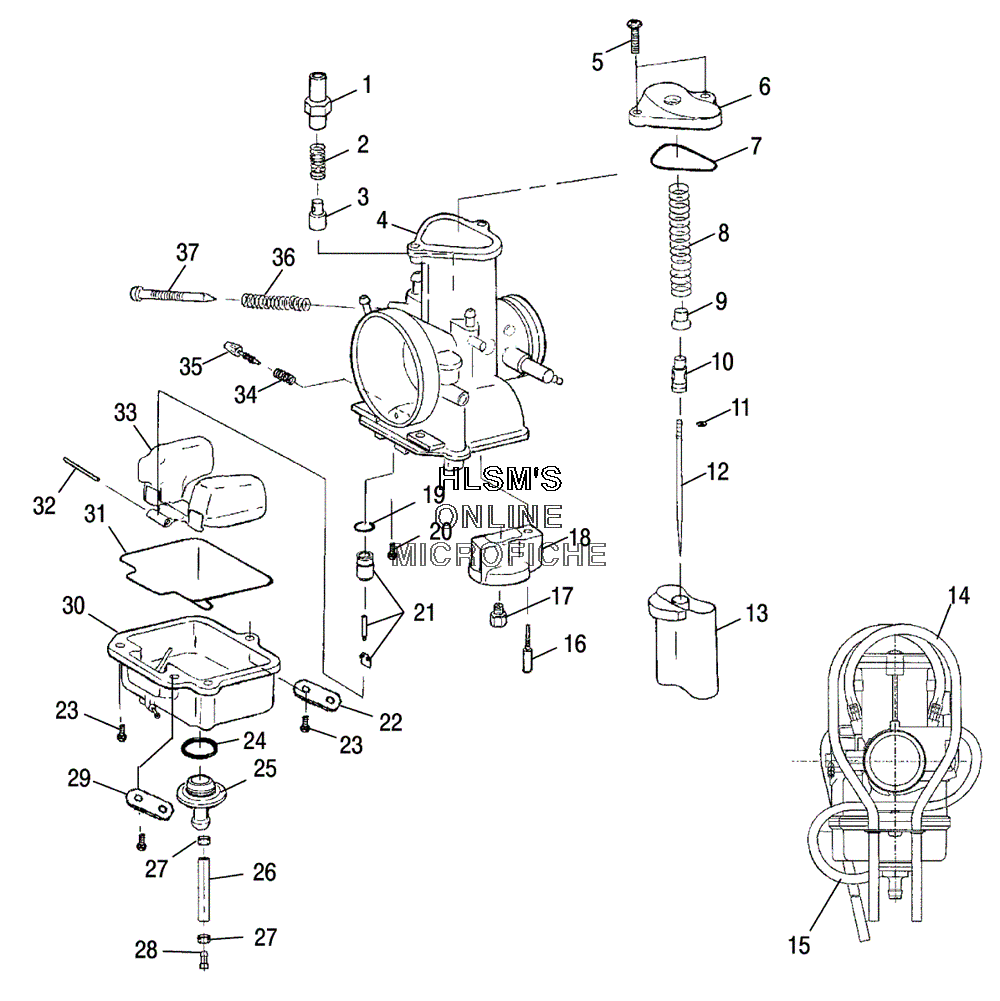

CARBURETOR ASSEMBLY для Polaris 440 PRO XR (S04NX4CS) - 2004 года выпуска
-
№АртикулНазвание
-
13131086 HOLDER, GUIDEHOLDER, GUIDE
-
23130829 SPRINGSPRING
-
33131100 PLUNGERPLUNGER
-
41253561 CARB ASSY (INCL. 1-3, 5-25, 31-36)CARB ASSY (INCL. 1-3, 5-25, 31-36)
-
53131066 SCREWSCREW
-
63131092 TOP CAP ASSYTOP CAP ASSY
-
73131138 O-RINGO-RING
-
83131106 SPRINGSPRING
-
93131054 SPRING, PV, RINGSPRING, PV, RING
-
103131053 GUIDE HOLDERGUIDE HOLDER
-
113130868 E-RINGE-RING
-
123131462 NEEDLE-JETNEEDLE-JET
-
133131043 PISTON VALVE CUTAWAYPISTON VALVE CUTAWAY
-
143131321 HOSE VENT LINEHOSE VENT LINE
-
153131411 CLIPCLIP
-
163131025 JET PILOTJET PILOT
-
173130132 JET, MAIN HEXAGON HEADJET, MAIN HEXAGON HEAD
-
183131056 HOLDERHOLDER
-
193130949 WASHERWASHER
-
203131089 SCREWSCREW
-
213131062 NEEDLE VALVE ASSYNEEDLE VALVE ASSY
-
223131403 PLATEPLATE
-
233130933 SCREWSCREW
-
243131104 O-RINGO-RING
-
255020476 FITTING, SEDIMENTFITTING, SEDIMENT
-
268350017 LINE, FUELLINE, FUEL
-
277080003 CLAMP, HOSECLAMP, HOSE
-
285431893 PLUG, TRAPPLUG, TRAP
-
293131090 PLATEPLATE
-
303131412 FLOAT BODY ASSYFLOAT BODY ASSY
-
313131105 O-RINGO-RING
-
323131060 FLOAT PINFLOAT PIN
-
333131102 FLOATFLOAT
-
343130407 SPRING, AIR ADJUSTERSPRING, AIR ADJUSTER
-
353131063 SCREW, AIRSCREW, AIR
-
363131087 SPRINGSPRING
-
373131088 ADJUSTERADJUSTER
