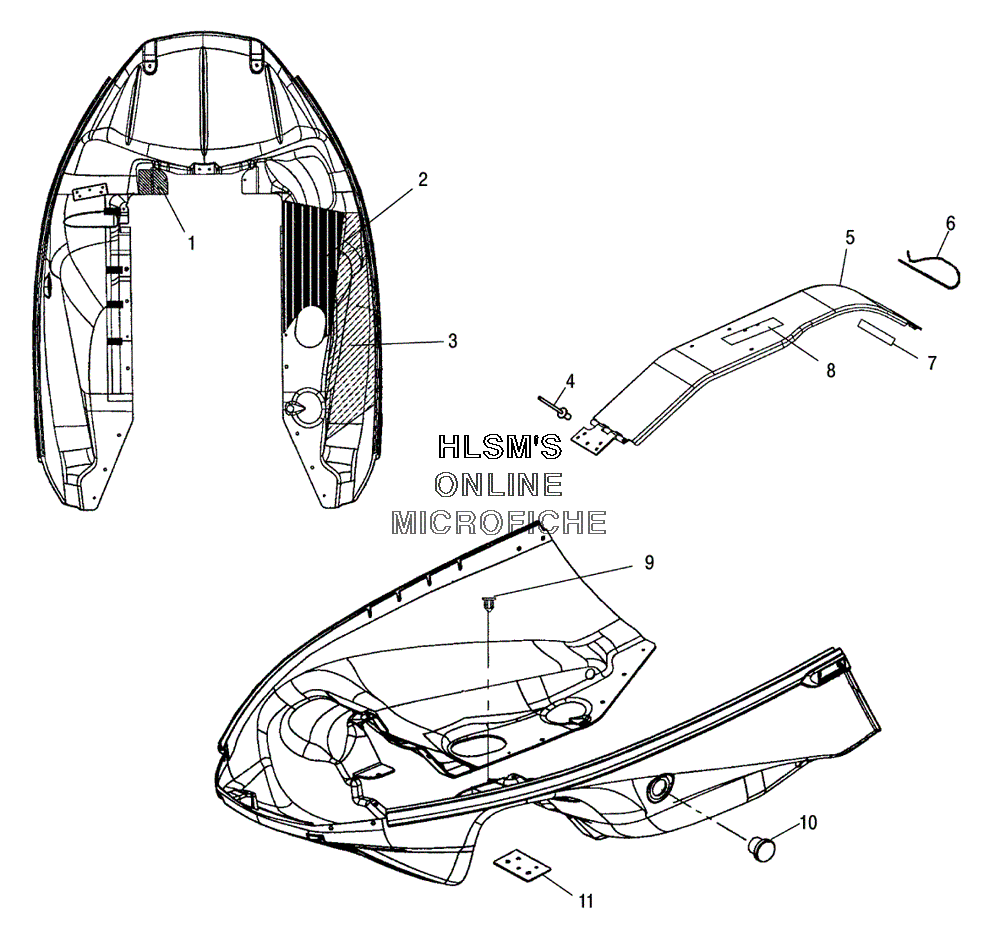

NOSEPAN ASSEMBLY #2 для Polaris 440 PRO XR (S04NX4CS) - 2004 года выпуска
-
№АртикулНазвание
-
15812020 FOIL, TAPEFOIL, TAPE
-
25812019 FOIL, TAPE (LOWER/RIGHT)FOIL, TAPE (LOWER/RIGHT)
-
35812018 FOIL, TAPE (UPPER/RIGHT)FOIL, TAPE (UPPER/RIGHT)
-
47621402 RIVET, POPRIVET, POP
-
51013993 CLUTCH GUARD ASSYCLUTCH GUARD ASSY
-
67080698 PIN, CLUTCH GUARDPIN, CLUTCH GUARD
-
75812352 PAD CLUTCH GUARDPAD CLUTCH GUARD
-
87075350 DECAL, ENGINE AND CLUTCHDECAL, ENGINE AND CLUTCH
-
97670131 PLUG NYLONPLUG NYLON
-
105433926 PLUG, OBLONGPLUG, OBLONG
-
115211722 PLATE, BACKERPLATE, BACKER
