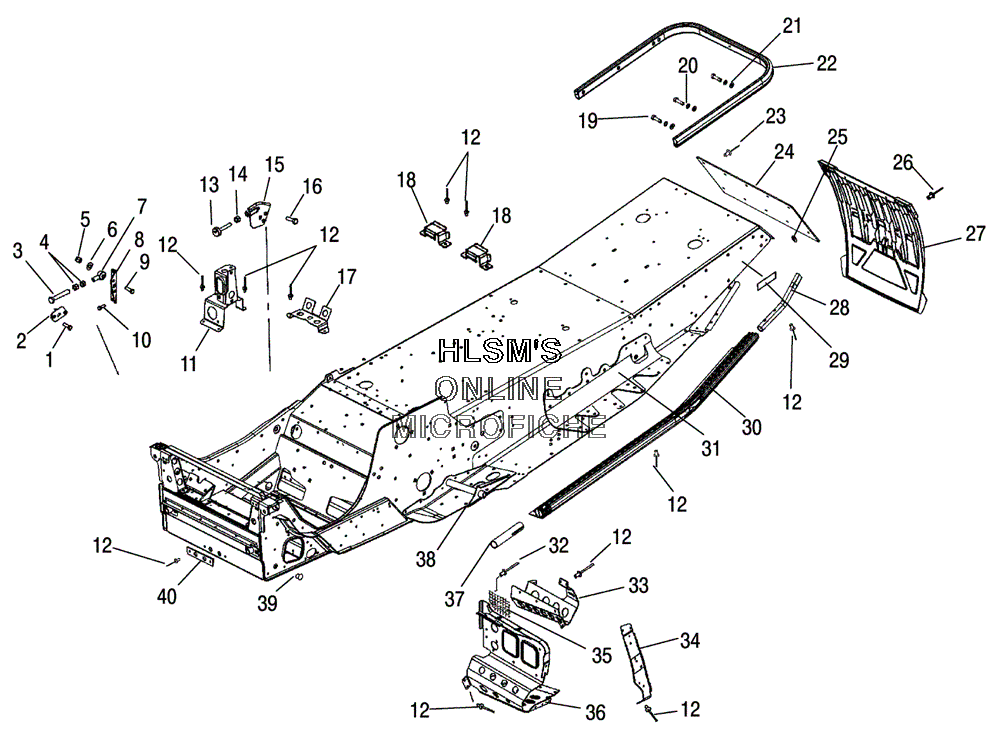

FRAME - CHASSIS для Polaris 440 PRO XR (S04NX4CS) - 2004 года выпуска
-
№АртикулНазвание
-
17517632 SCREWSCREW
-
21013777 WELD BRACKET TORQUE STOP (FRONT)WELD BRACKET TORQUE STOP (FRONT)
-
37518061 SCREW BUTTON HEADSCREW BUTTON HEAD
-
47542401 NUT, HEXAGON (RIGHT)NUT, HEXAGON (RIGHT)
-
57542439 NUT, NYLOKNUT, NYLOK
-
67555823 WASHERWASHER
-
73021411 TORQUE LIMITER, 65 DUROTORQUE LIMITER, 65 DURO
-
85246537 BRACKET TORQUE LIMITERBRACKET TORQUE LIMITER
-
97512404 BOLTBOLT
-
107516730 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
115245802 BRACKET CDIBRACKET CDI
-
127661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
133021104 STOP, TORQUE COURSESTOP, TORQUE COURSE
-
147542404 NUTNUT
-
151013458 WELD TORQUE STOPWELD TORQUE STOP
-
167517854 SCREW SPEC YSCREW SPEC Y
-
175245398 BRACKET AIRBOX MOUNTBRACKET AIRBOX MOUNT
-
185245995 BRACKET HOLDDOWN, SEATBRACKET HOLDDOWN, SEAT
-
197512240 BOLTBOLT
-
207552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
217558301 WASHER, FLATWASHER, FLAT
-
222632165-309 BUMPER ASSY (REAR)BUMPER ASSY (REAR)
-
237621467 RIVET, BLINDRIVET, BLIND
-
245435492 EXTENSION SNOW FLAPEXTENSION SNOW FLAP
-
257555904 WASHERWASHER
-
267621472 RIVETRIVET
-
275434356-1038 FLAP SNOW (BLACK/WHITE)FLAP SNOW (BLACK/WHITE)
-
285245432 TUBE TUNNEL REINFORCE (REAR)TUBE TUNNEL REINFORCE (REAR)
-
292670133 REFLECTOR ASSY (RED)REFLECTOR ASSY (RED)
-
305133971 GRIP TUNNEL, COMMON (LEFT)GRIP TUNNEL, COMMON (LEFT)
-
305133972 GRIP TUNNEL, COMMON (RIGHT)GRIP TUNNEL, COMMON (RIGHT)
-
315247750 BRACE TUNNEL, CORNER FISHBONE (LEFT)BRACE TUNNEL, CORNER FISHBONE (LEFT)
-
315247751 BRACE TUNNEL, CORNER FISHBONE (RIGHT)BRACE TUNNEL, CORNER FISHBONE (RIGHT)
-
327621470 RIVETRIVET
-
335247958 TOECLIPTOECLIP
-
345247676 SUPPORT FOOTRST (LEFT)SUPPORT FOOTRST (LEFT)
-
345247677 SUPPORT FOOTRST (RIGHT)SUPPORT FOOTRST (RIGHT)
-
355246397 SCREEN CONSOLESCREEN CONSOLE
-
361014564 FOOTREST/SCREEN ASSY (LEFT)FOOTREST/SCREEN ASSY (LEFT)
-
365247675 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
375245431 TUBE TUNNEL REINFORCE (FRONT)TUBE TUNNEL REINFORCE (FRONT)
-
381014559 WELD TRAILING ARM MOUNT (LEFT)WELD TRAILING ARM MOUNT (LEFT)
-
381014560 WELD TRAILING ARM MOUNT (RIGHT)WELD TRAILING ARM MOUNT (RIGHT)
-
397080416 PLUG, HOLEPLUG, HOLE
-
405245307 PLATE (LOWER/INNER)PLATE (LOWER/INNER)
-
401014558-309 CHASSIS, NAT ASSYCHASSIS, NAT ASSY
