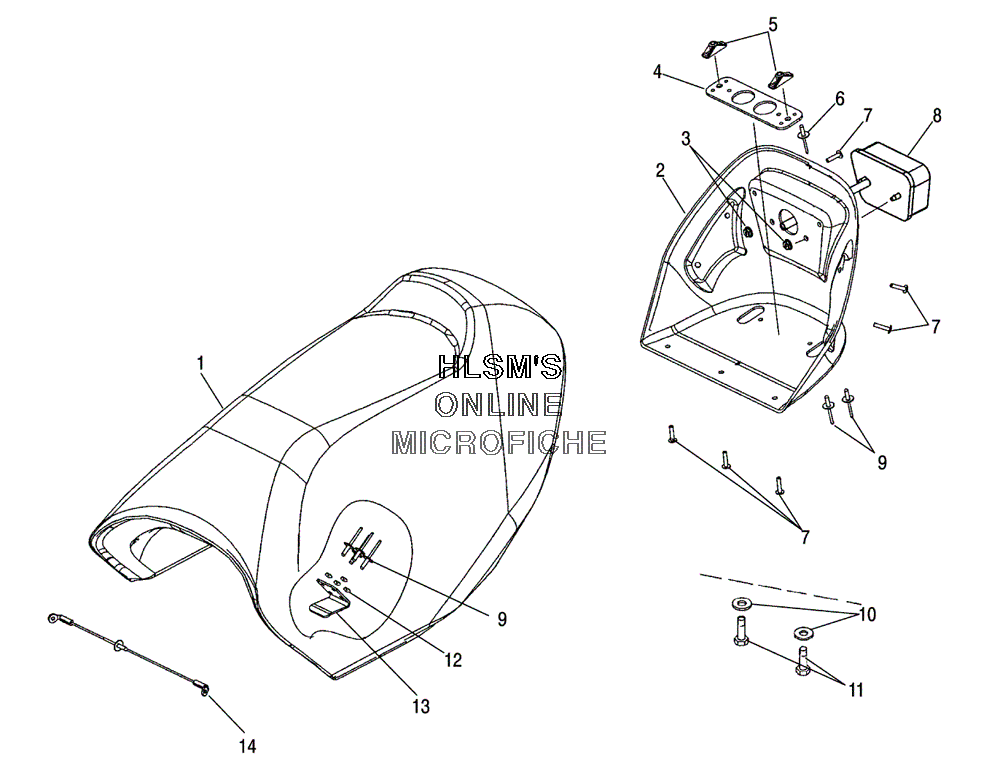

SEAT W/ TAILLIGHT для Polaris 440 PRO XR (S04NX4CS) - 2004 года выпуска
-
№АртикулНазвание
-
12683407 SEAT, RACER ASSYSEAT, RACER ASSY
-
12683471 SEAT COVER RACER ASSYSEAT COVER RACER ASSY
-
25434876 COVER SEAT BASE (REAR)COVER SEAT BASE (REAR)
-
37670054 NUT, PUSH ONNUT, PUSH ON
-
45246847 PLATE SEAT, PRO XPLATE SEAT, PRO X
-
55631194 NUT SEATNUT SEAT
-
67621319 RIVETRIVET
-
77621485 RIVETRIVET
-
82432034 TAIL LIGHT ASSYTAIL LIGHT ASSY
-
84030043 BULBBULB
-
84032045 GASKETGASKET
-
84032046 LENS, TAILLIGHTLENS, TAILLIGHT
-
84032029 SCREWSCREW
-
97621467 RIVET, BLINDRIVET, BLIND
-
107558221 WASHERWASHER
-
117517219 SCREWSCREW
-
127555904 WASHERWASHER
-
135246846 BRACKET SEAT BASE HOLDDOWNBRACKET SEAT BASE HOLDDOWN
-
147081052 CABLE SEAT BASE RETENSION (12.5)CABLE SEAT BASE RETENSION (12.5)
