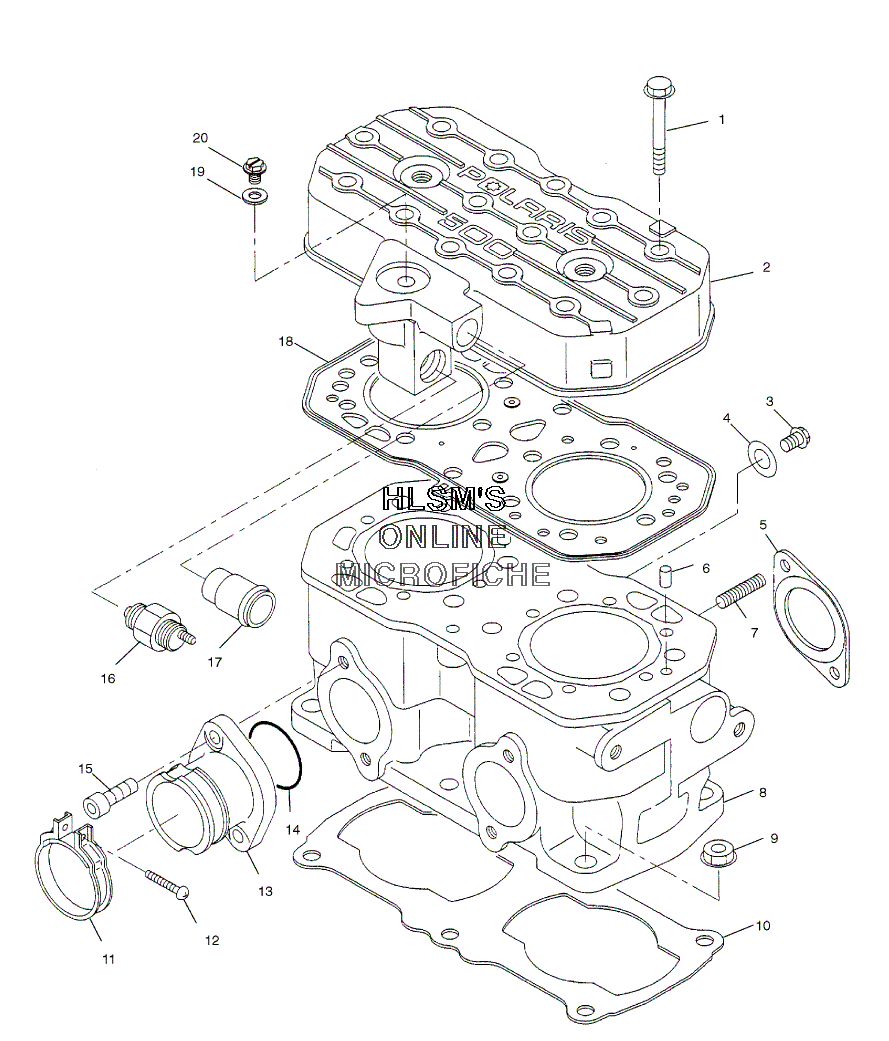

CYLINDER ASSEMBLY для Polaris 500 INDY EDGE (S04NB4BS) - 2004 года выпуска
-
№АртикулНазвание
-
13085582 BOLT, FLANGEBOLT, FLANGE
-
23087148 HEAD CYLINDER (INCL. 17)HEAD CYLINDER (INCL. 17)
-
33084491 PLUGPLUG
-
43084492 GASKET, ALUMINUMGASKET, ALUMINUM
-
53086995 GASKET EXHAUSTGASKET EXHAUST
-
63080103 PIN, DOWELPIN, DOWEL
-
73085326 STUDSTUD
-
83086993 CYLINDER (INCL. 7)CYLINDER (INCL. 7)
-
93082911 NUT FLANGENUT FLANGE
-
103084768 GASKET, BASEGASKET, BASE
-
113083085 ADAPTER BAND ASSYADAPTER BAND ASSY
-
123081497 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
133086994 ADAPTER (INCL. 14)ADAPTER (INCL. 14)
-
143086996 O-RINGO-RING
-
153081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
163083055 SWITCH, THERMAL (93 DEG.C.)SWITCH, THERMAL (93 DEG.C.)
-
173083452 PIPE, WATERPIPE, WATER
-
183085585 GASKET 2, HEADGASKET 2, HEAD
-
193082758 WASHER FLATWASHER FLAT
-
203083350 PLUG, AIR VENTPLUG, AIR VENT
