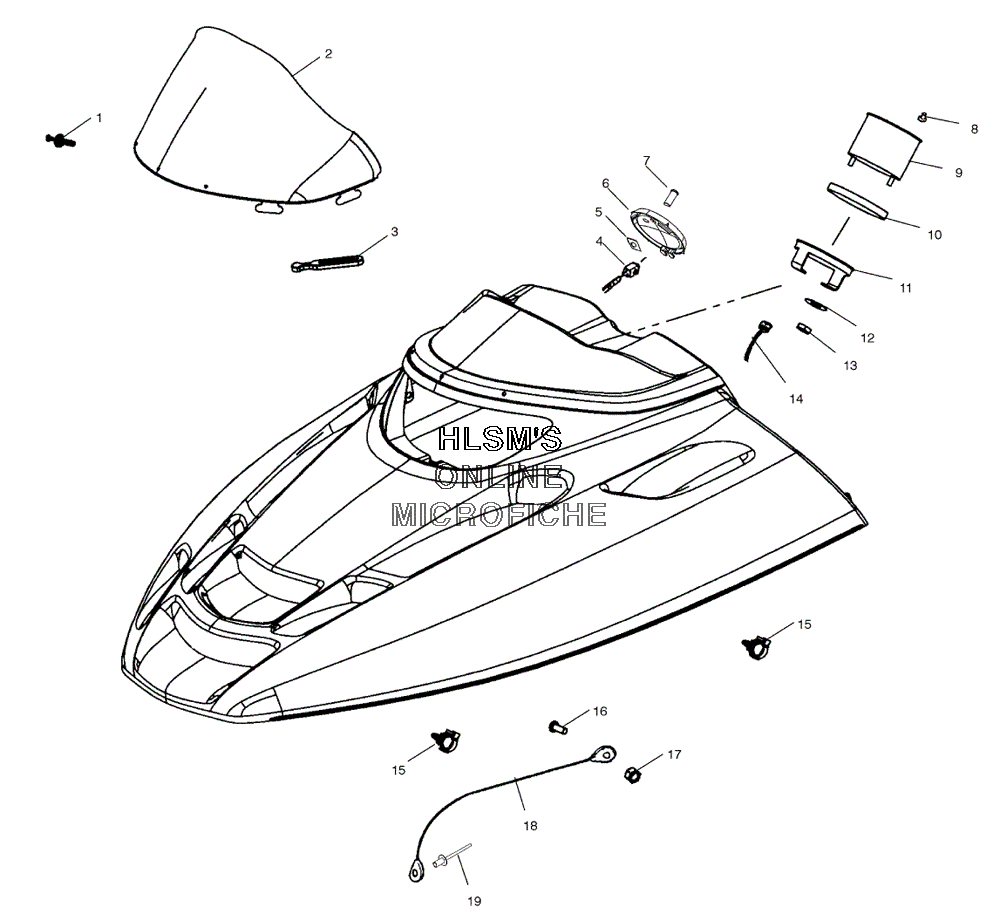

WINDSHIELD/GUAGES/HOOD RETAINER для Polaris 500 INDY EDGE (S04NB4BS) - 2004 года выпуска
-
№АртикулНазвание
-
17621509 RIVET, PLASTI LOCKRIVET, PLASTI LOCK
-
25434933 WINDSHIELD 15" FLR (SMOKE/GRAPHITE)WINDSHIELD 15" FLR (SMOKE/GRAPHITE)
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
42460876 HARNESS JUMPER TEMP LIGHTHARNESS JUMPER TEMP LIGHT
-
57670133 RETAINER-1/2" BOLT/LAMPRETAINER-1/2" BOLT/LAMP
-
65434081 PLUG DASH, 5" WITH SINGLE 1/2"HOLEPLUG DASH, 5" WITH SINGLE 1/2"HOLE
-
74010535 INDICATOR HIGH TEMP 1/2" DIAINDICATOR HIGH TEMP 1/2" DIA
-
83280186 KNOB, TRIP ODOMETER THEAD (LEFT)KNOB, TRIP ODOMETER THEAD (LEFT)
-
93280411 SPEEDOMETER, 5" 120MPH ASSY (WHITE/BLACK)SPEEDOMETER, 5" 120MPH ASSY (WHITE/BLACK)
-
94030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
103280209 CUSHION, TACHOMETER/SPEEDOMETER RUBBERCUSHION, TACHOMETER/SPEEDOMETER RUBBER
-
113280210 BRACKET, TACHOMETER/SPEEDOMETER 5"BRACKET, TACHOMETER/SPEEDOMETER 5"
-
123280157 WASHER, FLATWASHER, FLAT
-
137546703 NUT, NYLOKNUT, NYLOK
-
143280385 CABLE SPEEDOMETERCABLE SPEEDOMETER
-
154010589 CLIP PLASTIC, DART NYLONCLIP PLASTIC, DART NYLON
-
167512018 SCREWSCREW
-
177541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
187080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
197661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
