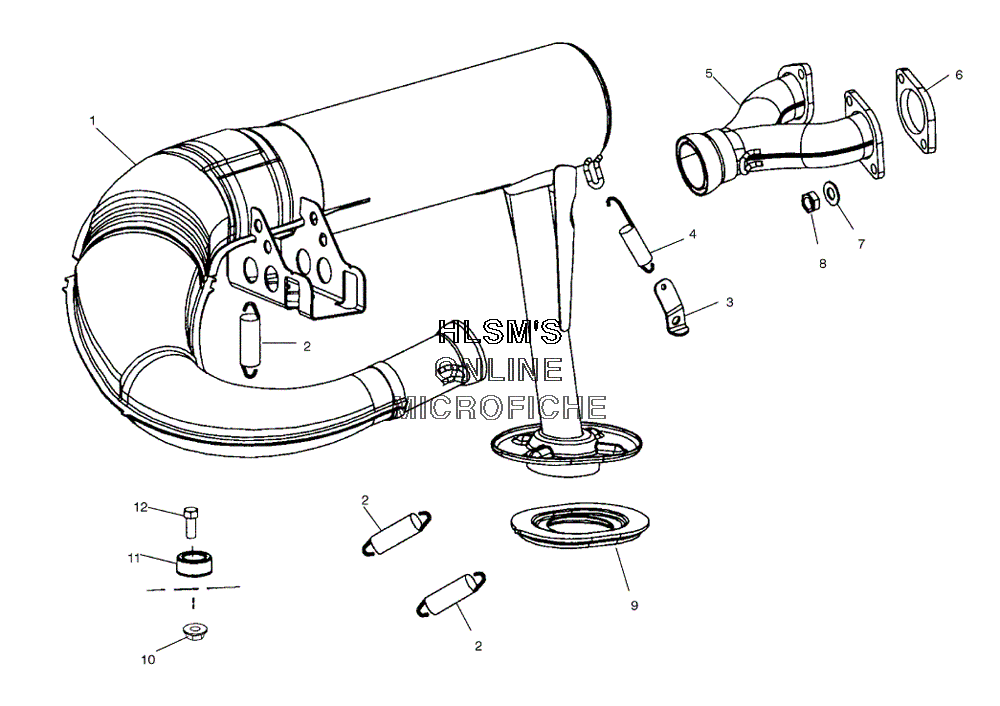

EXHAUST SYSTEM для Polaris 500 INDY EDGE (S04NB4BS) - 2004 года выпуска
-
№АртикулНазвание
-
11261070-029 TUNED PIPE (BLACK)TUNED PIPE (BLACK)
-
27041687 SPRINGSPRING
-
35246202 BRACKET RETAINERBRACKET RETAINER
-
47042029 SPRINGSPRING
-
51261074-029 MAINFOLD (BLACK)MAINFOLD (BLACK)
-
77552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
87547210 NUT LINC, 28 THREADNUT LINC, 28 THREAD
-
95411902 BOOT, OUTLETBOOT, OUTLET
-
107547180 NUT FLANGED, 3/8 16 NYLON ZNUT FLANGED, 3/8 16 NYLON Z
-
115433576 DAMPENER VIBRATIONSDAMPENER VIBRATIONS
-
127517935 SCREW HEXAGON SOCKETSCREW HEXAGON SOCKET
Все узлы модели:
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- • EXHAUST SYSTEM
- FRAME - CHASSIS
- FUEL PUMP
- FUEL TANK
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STEERING ASSEMBLY #1
- STEERING ASSEMBLY #2
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK SHOCK
- TOOL KIT
- WATER PUMP
- WINDSHIELD/GUAGES/HOOD RETAINER
