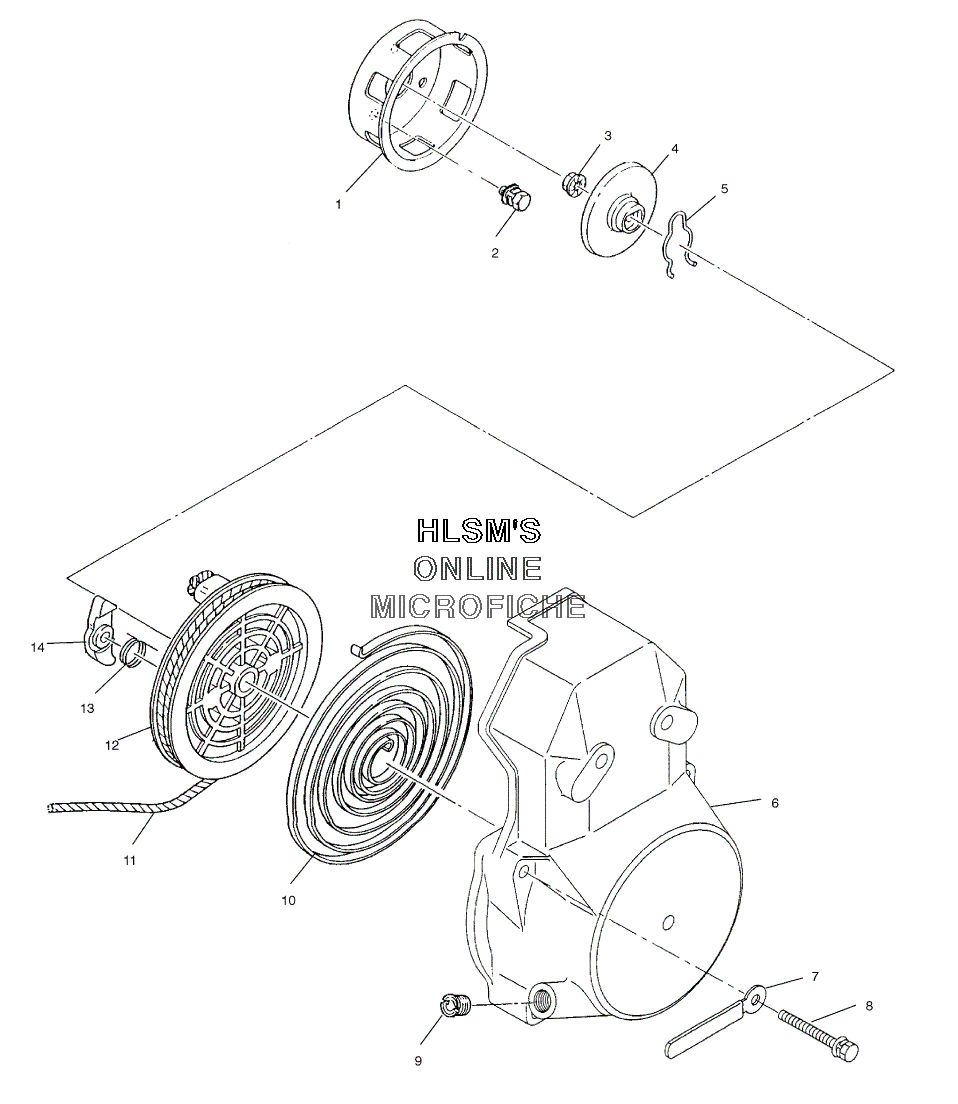

STARTER - RECOIL ASSEMBLY для Polaris 500 INDY EDGE (S04NB4BS) - 2004 года выпуска
-
№АртикулНазвание
-
13083312 PULLEY, STARTINGPULLEY, STARTING
-
23084224 BOLTANDWASHER ASSYBOLTANDWASHER ASSY
-
33083381 NUT, FLANGENUT, FLANGE
-
43083464 PLATE, FRICTIONPLATE, FRICTION
-
53083379 SPRING, FRICTIONSPRING, FRICTION
-
63087009 STARTER RECOIL (INCL. 3-6, 9-14)STARTER RECOIL (INCL. 3-6, 9-14)
-
63087010 CASE STARTERCASE STARTER
-
73083384 CLAMPCLAMP
-
83083382 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
93083107 GUIDE ROPEGUIDE ROPE
-
103083376 SPRING, SPIRALSPRING, SPIRAL
-
112870621 ROPE, NYLON STARTER (100 FT)ROPE, NYLON STARTER (100 FT)
-
123083377 REEL ASSYREEL ASSY
-
133083463 SPRING, RETURNSPRING, RETURN
-
143083378 RATCHETRATCHET
