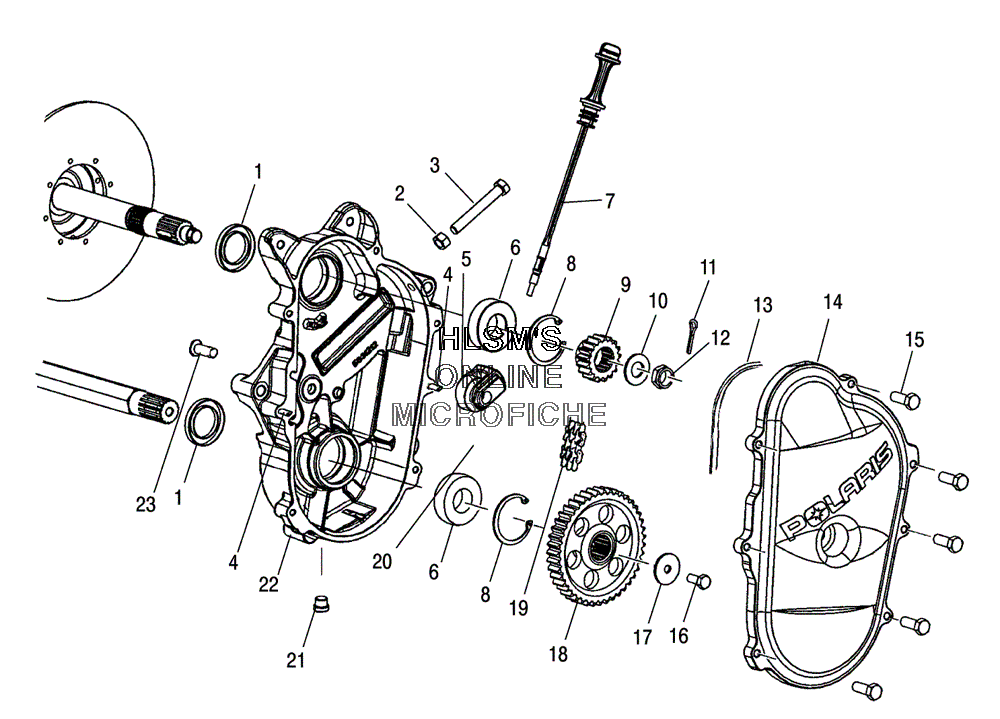

CHAINCASE ASSEMBLY для Polaris 550 PRO X FAN (S04NX5BS) - 2004 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27542404 NUTNUT
-
37515459 SCREWSCREW
-
47661826 PIN, DOWELPIN, DOWEL
-
51332266 TIGHTENER, SLIDING ASSYTIGHTENER, SLIDING ASSY
-
55630123 WHEEL, C/C IDLERWHEEL, C/C IDLER
-
53553002 BEARINGBEARING
-
57558702 WASHER THRUSTWASHER THRUST
-
63514309 BEARING, BALLBEARING, BALL
-
71332143 DIPSTICK ASSYDIPSTICK ASSY
-
75410675 O-RINGO-RING
-
87718406 RING, RETAININGRING, RETAINING
-
93221097 SPROCKET (21T, 3/4W, 15 SPLINE HYVO PM)SPROCKET (21T, 3/4W, 15 SPLINE HYVO PM)
-
107571620 WASHER, SPRINGWASHER, SPRING
-
117661203 PIN, COTTERPIN, COTTER
-
127547202 NUT THIN, NYLON INSERT YNUT THIN, NYLON INSERT Y
-
135411497 GASKET, O-RINGGASKET, O-RING
-
145631354 COVER, CHAINCASE (7.92 CD)COVER, CHAINCASE (7.92 CD)
-
157512242 SCREWSCREW
-
167517979 SCREW HEXAGON HEAD NYLONSCREW HEXAGON HEAD NYLON
-
177571618 WASHER, SPRINGWASHER, SPRING
-
183222101 SPROCKET (41T/15T SPLINE HYVO PM)SPROCKET (41T/15T SPLINE HYVO PM)
-
193221109 CHAIN, HYVO 74P (3/4W)CHAIN, HYVO 74P (3/4W)
-
207542451 NUT, NYLOKNUT, NYLOK
-
217052115 PLUGPLUG
-
225134085 CHAINCASE (7.92 CD)CHAINCASE (7.92 CD)
-
237515477 SCREW, CARRIAGESCREW, CARRIAGE
