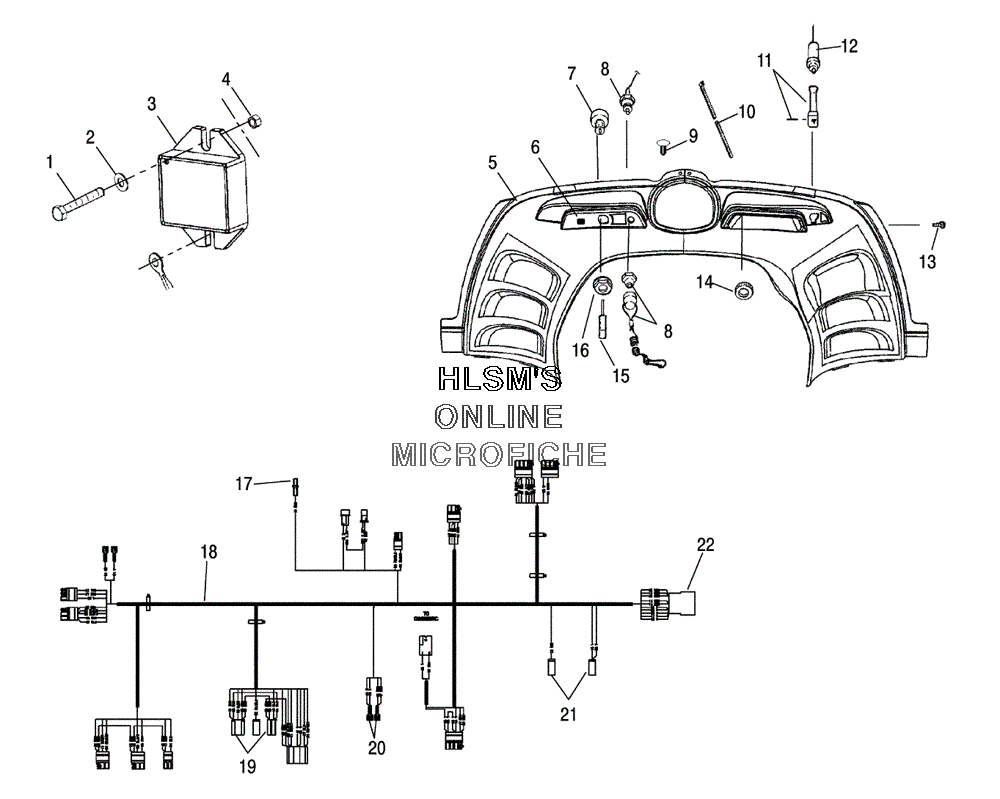

CONSOLE для Polaris 550 PRO X FAN (S04NX5BS) - 2004 года выпуска
-
№АртикулНазвание
-
17512031 SCREWSCREW
-
27555746 WASHERWASHER
-
34010793 REGULATOR ACREGULATOR AC
-
47541925 NUT, NYLOKNUT, NYLOK
-
55434103 CONSOLE, SRPCONSOLE, SRP
-
64110263 SWITCH, HEATER HI/LOSWITCH, HEATER HI/LO
-
67661124 HAIRPIN COTTERHAIRPIN COTTER
-
72201614 IGNITION SWITCH FUEL KITIGNITION SWITCH FUEL KIT
-
84010849 SWITCH TETHERSWITCH TETHER
-
97670090 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
-
107080138 CABLE TIECABLE TIE
-
112200388 KILL SWITCH DISC KIT (INCL. PIN)KILL SWITCH DISC KIT (INCL. PIN)
-
127080290 CABLE, CHOKE (INCL. 11, 14)CABLE, CHOKE (INCL. 11, 14)
-
137515199 SCREWSCREW
-
145432944 NUT, CHOKENUT, CHOKE
-
159990000 N/A, USE COMPONENTSN/A, USE COMPONENTS
-
167547035 NUT, IGNITIONNUT, IGNITION
-
174020133 HOUSING, SOCKETHOUSING, SOCKET
-
182461160 HARNESS MAIN, E/RHARNESS MAIN, E/R
-
194020063 HOUSING, PACKHOUSING, PACK
-
204020061 RECEPTACLE N/R DIRECEPTACLE N/R DI
-
214020153 HOUSING, 1 CIRCUITHOUSING, 1 CIRCUIT
-
224020057 HOUSINGHOUSING
