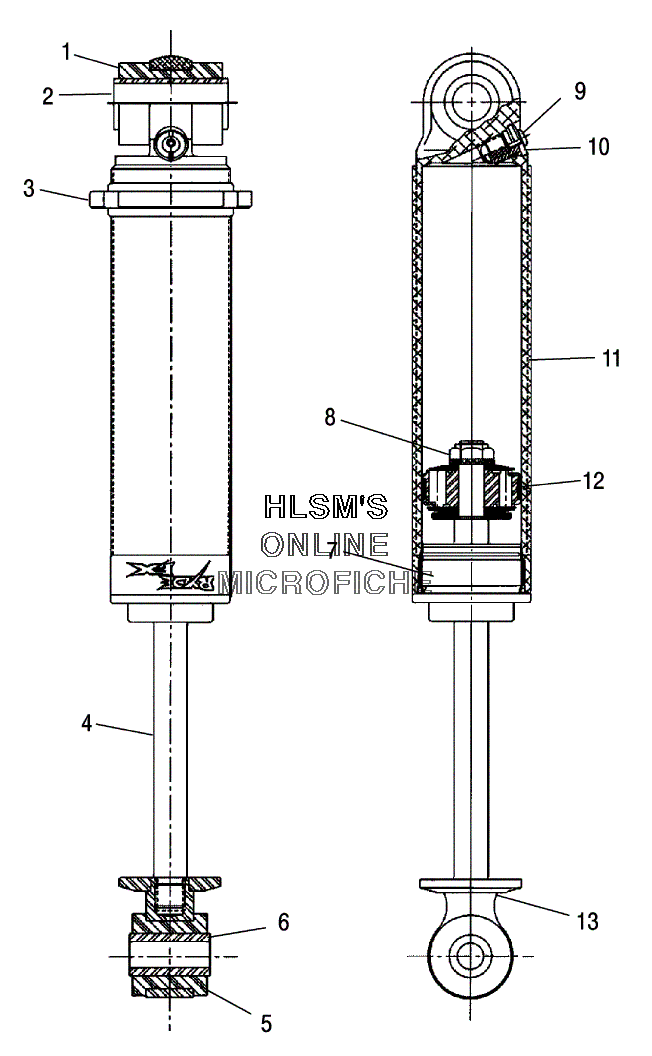

SUSPENSION - FRONT TRACK для Polaris 550 PRO X FAN (S04NX5BS) - 2004 года выпуска
-
№АртикулНазвание
-
11700074 BUSHINGBUSHING
-
21700071 SLEEVE (.57"ID)SLEEVE (.57"ID)
-
31700033 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
41700214 SHAFTSHAFT
-
51700075 BUSHINGBUSHING
-
61700069 SLEEVE (.57"ID)SLEEVE (.57"ID)
-
71700156 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
71700051 CYLINDER HEAD O-RINGCYLINDER HEAD O-RING
-
81700057 NUTNUT
-
91700056 VALVE SCREWVALVE SCREW
-
101700184 PRESS VALVE ASSYPRESS VALVE ASSY
-
101700047 PRESS VALVE O-RINGPRESS VALVE O-RING
-
111700213 BODYBODY
-
121700100 BANDED PISTON ORIFCE ASSY (.060")BANDED PISTON ORIFCE ASSY (.060")
-
121700031 PISTON WEAR BANDPISTON WEAR BAND
-
121700077 TOP OUT WASHERTOP OUT WASHER
-
121700078 BACK UP WASHERBACK UP WASHER
-
131700011 MOUNT (UPPER)MOUNT (UPPER)
-
137042205 SHOCK TRACK (FRONT)SHOCK TRACK (FRONT)
