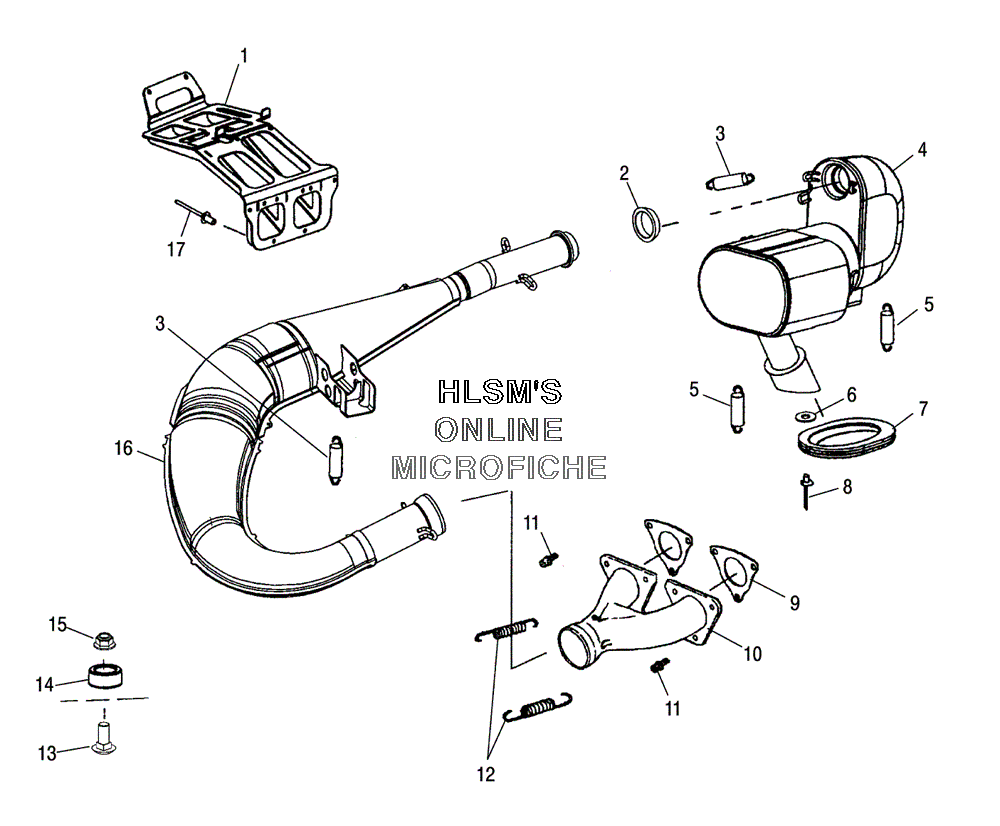

EXHAUST SYSTEM для Polaris 550 PRO X FAN (S04NX5BS) - 2004 года выпуска
-
№АртикулНазвание
-
11261174-029 WELD BRACKET CHASSIS/RESONATOR (BLACK)WELD BRACKET CHASSIS/RESONATOR (BLACK)
-
23610047 SEAL, EXHAUST SOCKETSEAL, EXHAUST SOCKET
-
37042029 SPRINGSPRING
-
41261130-029 WELD RESONATOR (BLACK)WELD RESONATOR (BLACK)
-
57041687 SPRINGSPRING
-
67555904 WASHERWASHER
-
75411684 BOOT, EXHAUST OUTLETBOOT, EXHAUST OUTLET
-
87621467 RIVET, BLINDRIVET, BLIND
-
93085714 GASKET, EXHAUSTGASKET, EXHAUST
-
101261275-029 WELD MANIFOLD (BLACK)WELD MANIFOLD (BLACK)
-
117517555 SCREW, HEXAGON SOCSCREW, HEXAGON SOC
-
127042332 SPRINGSPRING
-
137512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
145433576 DAMPENER VIBRATIONSDAMPENER VIBRATIONS
-
157542321 NUT, FLANGENUT, FLANGE
-
161261278-029 WELD TUNED PIPE (BLACK)WELD TUNED PIPE (BLACK)
-
177661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
