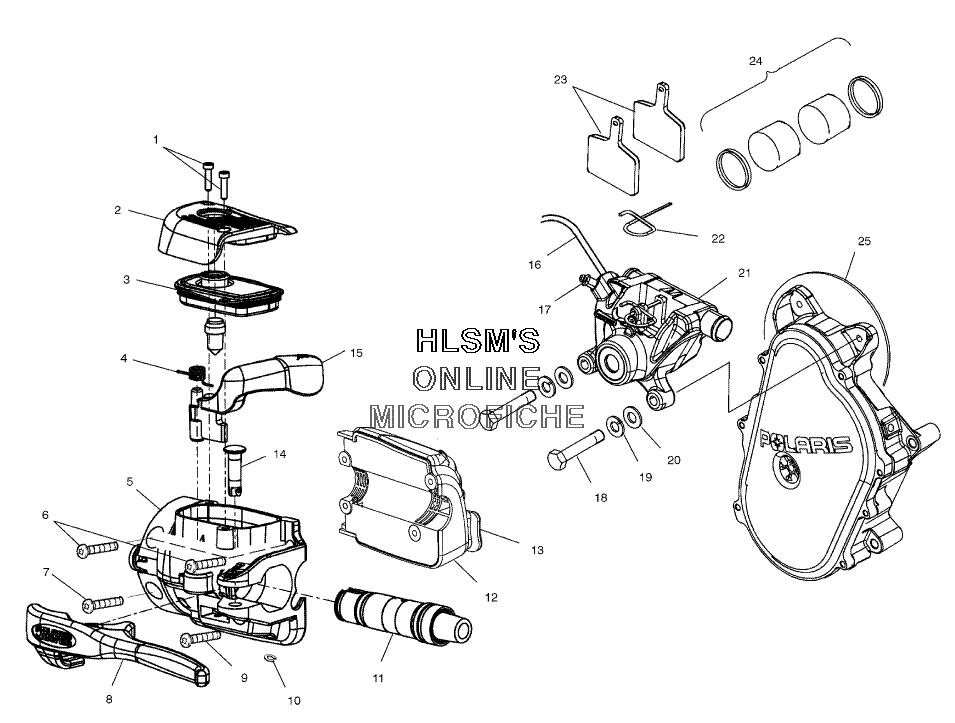

BRAKE ASSEMBLY для Polaris 700 CLASSIC (S04ND7CS) - 2004 года выпуска
-
№АртикулНазвание
-
12201254 COVER SCREW, KITCOVER SCREW, KIT
-
22201255 COVER ASSEMBLY, KIT (INCL. 1, 3)COVER ASSEMBLY, KIT (INCL. 1, 3)
-
42201250 PARK LEVER SPRING, KITPARK LEVER SPRING, KIT
-
52202146 MASTER CYLINDER W/PIPE THRO KIT ASSY (INCL. 1-11)MASTER CYLINDER W/PIPE THRO KIT ASSY (INCL. 1-11)
-
54010157 SWITCH, BRAKE LIGHTSWITCH, BRAKE LIGHT
-
67517441 SCREW (.75)SCREW (.75)
-
77512078 SCREW (1.12)SCREW (1.12)
-
82201943 LEVER, 3 NOTCH/PIN/RING KITLEVER, 3 NOTCH/PIN/RING KIT
-
97517566 SCREW (1.50)SCREW (1.50)
-
102201945 SNAP RING KITSNAP RING KIT
-
112201944 CARTRIDGE SUB ASSY KIT (5/8")CARTRIDGE SUB ASSY KIT (5/8")
-
122010206 CONTROL E/R, BASIC ASSY (LEFT)CONTROL E/R, BASIC ASSY (LEFT)
-
122010218 CONTROL E/R, BASIC ASSY (RIGHT)CONTROL E/R, BASIC ASSY (RIGHT)
-
135433291 BUTTON SWITCH HI/LO CONTROL (LEFT)BUTTON SWITCH HI/LO CONTROL (LEFT)
-
142201946 PIVOT PIN, ALUM W/SNAP RING KITPIVOT PIN, ALUM W/SNAP RING KIT
-
152201251 PARK LEVER AND SPRING KIT (INCL. 4)PARK LEVER AND SPRING KIT (INCL. 4)
-
161910607 LINE BRAKE BRAIDEDLINE BRAKE BRAIDED
-
172202205 BLEEDER FITTING KITBLEEDER FITTING KIT
-
187515534 SCREWSCREW
-
197552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
207556160 WASHERWASHER
-
212202201 BRAKE CALIPER, STANDARD LIQ KIT ASSY (INCL. 17, 22, 23, 24)BRAKE CALIPER, STANDARD LIQ KIT ASSY (INCL. 17, 22, 23, 24)
-
222202206 PIN RETAINING, KITPIN RETAINING, KIT
-
232202202 BRAKE PAD, TYPE 81 KIT (INCL. 22)BRAKE PAD, TYPE 81 KIT (INCL. 22)
-
242202207 PISTON/SEAL KITPISTON/SEAL KIT
-
242202204 SEAL KITSEAL KIT
