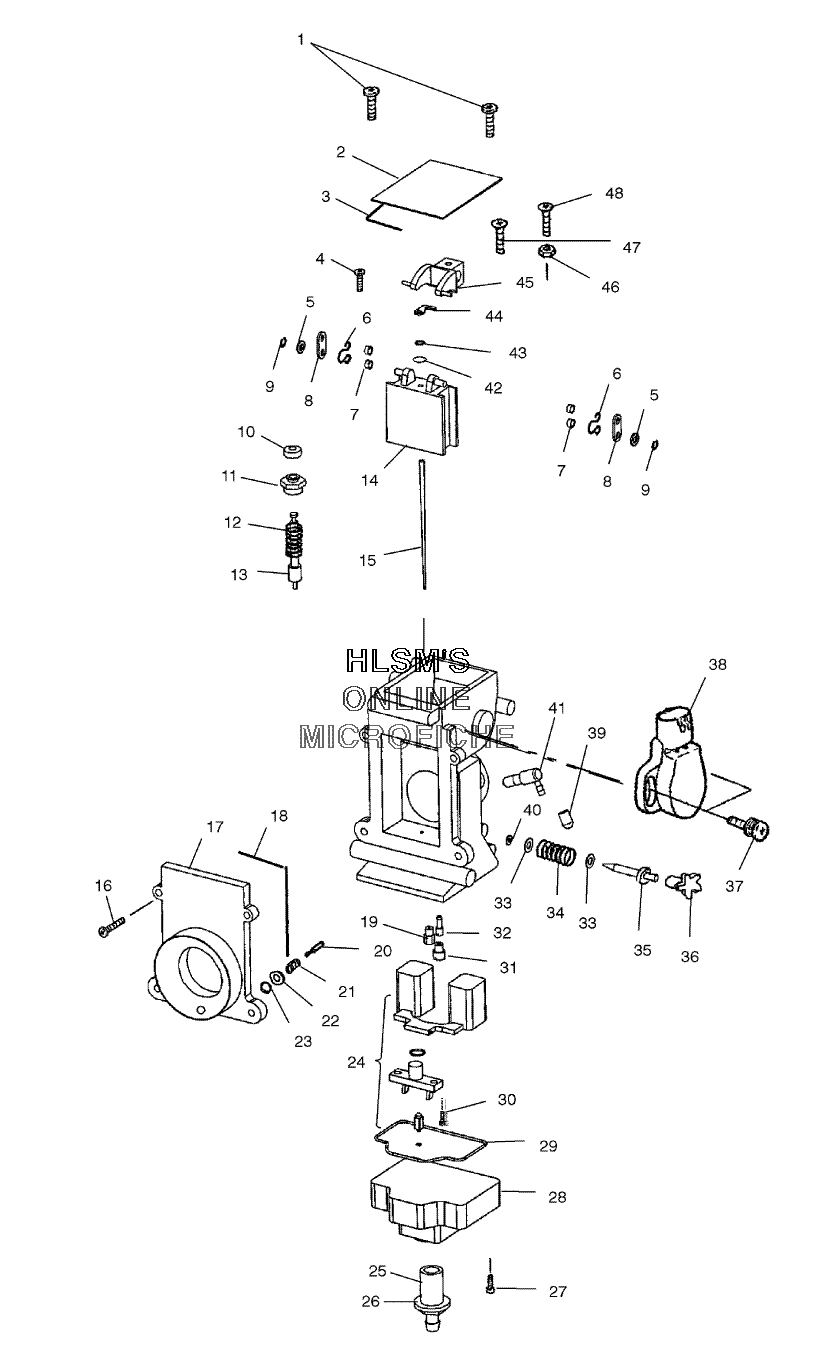

CARBURETOR ASSEMBLY для Polaris 700 CLASSIC (S04ND7CS) - 2004 года выпуска
-
№АртикулНазвание
-
13130951 SCREWSCREW
-
23130872 CAP, TOPCAP, TOP
-
33130871 GASKETGASKET
-
43130844 SCREWSCREW
-
53130846 WASHER, PACKINGWASHER, PACKING
-
63130856 CLIPCLIP
-
73130845 RINGRING
-
83130857 PLATEPLATE
-
93130847 E-RINGE-RING
-
103130831 CAP, RUBBERCAP, RUBBER
-
113130830 HOLDER, GUIDEHOLDER, GUIDE
-
123130829 SPRINGSPRING
-
133130828 PLUNGER ASSY/258PLUNGER ASSY/258
-
143130940 VALVE, PISTON 1.5VALVE, PISTON 1.5
-
153131415 NEEDLE-JET J8-9DGN05-57NEEDLE-JET J8-9DGN05-57
-
163130825 SCREWSCREW
-
173131439 ASSY, FUNNELASSY, FUNNEL
-
183131356 O-RING, LONG AIR FUNNELO-RING, LONG AIR FUNNEL
-
193130144 JET, MAIN HEXAGON HEAD #440JET, MAIN HEXAGON HEAD #440
-
203131336 SCREW-AIRSCREW-AIR
-
213131371 SPRINGSPRING
-
223131372 WASHERWASHER
-
233130522 O-RINGO-RING
-
243131231 FLOAT ASSYFLOAT ASSY
-
253131248 BOLT-DRAINBOLT-DRAIN
-
263130863 O-RINGO-RING
-
273130824 SCREWSCREW
-
283130858 FLOAT, BODYFLOAT, BODY
-
293130861 O-RINGO-RING
-
303130860 SCREWSCREW
-
313130068 JET, PILOT #45JET, PILOT #45
-
323130769 JET, STARTER #VM11/22-145JET, STARTER #VM11/22-145
-
333130837 WASHERWASHER
-
343130836 SPRINGSPRING
-
353130987 ADJUSTERADJUSTER
-
363130986 CAPCAP
-
373131010 SCREW (MAG SIDE)SCREW (MAG SIDE)
-
383131009 SENSOR, ASSY (MAG SIDE)SENSOR, ASSY (MAG SIDE)
-
393130479 CAPCAP
-
403130835 PACKINGPACKING
-
417051020 VALVE, CHECK, 90 DEG.VALVE, CHECK, 90 DEG.
-
423130867 PACKINGPACKING
-
433130868 E-RINGE-RING
-
443130843 PLATEPLATE
-
453130855 LEVER ASSYLEVER ASSY
-
453130849 LEVER ASSYLEVER ASSY
-
463130848 RINGRING
-
473130854 SCREWSCREW
-
483130850 SCREWSCREW
-
481253462 CARBURETOR, TM40 ASSYCARBURETOR, TM40 ASSY
