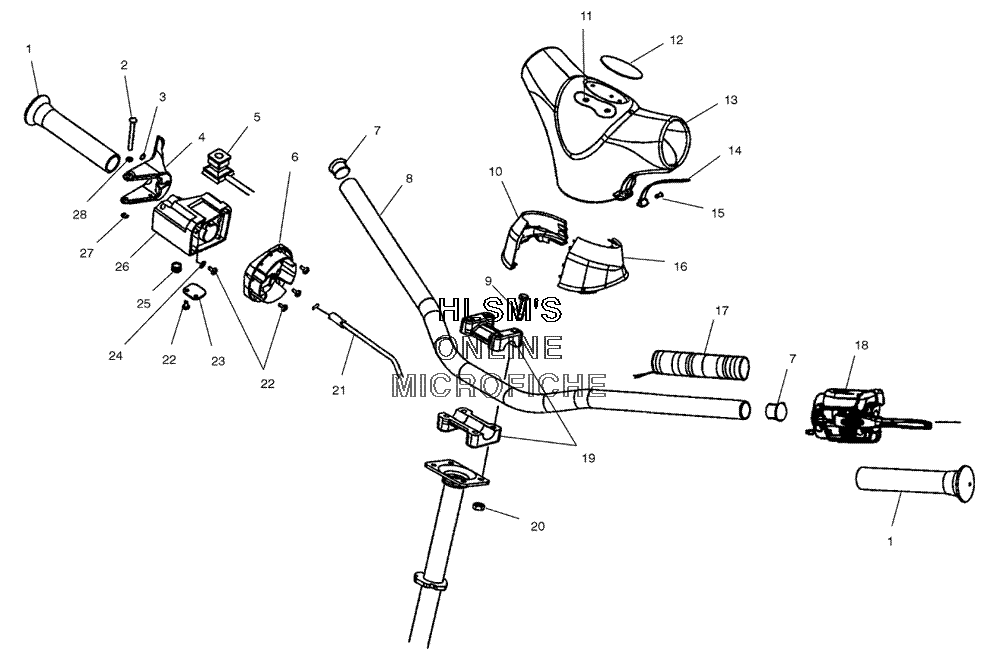

HANDLEBAR ASSEMBLY W/ CONTROLS для Polaris 700 CLASSIC (S04ND7CS) - 2004 года выпуска
-
№АртикулНазвание
-
15432634 GRIP, HANDLEBARGRIP, HANDLEBAR
-
27661624 PIN RETAININGPIN RETAINING
-
37710503 RING, RETAININGRING, RETAINING
-
45432970 THROTTLE, LEVER (35.5MM)THROTTLE, LEVER (35.5MM)
-
42010171 LEVER, HEATER HI/LO ASSY (35.5MM)LEVER, HEATER HI/LO ASSY (35.5MM)
-
54110106 SWITCH, AUXILIARY SHUT-OFFSWITCH, AUXILIARY SHUT-OFF
-
65433345 ADAPTER BLOCK, THROTTLEADAPTER BLOCK, THROTTLE
-
75431096 PLUGPLUG
-
85243355-067 HANDLEBAR (BLACK)HANDLEBAR (BLACK)
-
97517238 SCREWSCREW
-
105434488 COLLAR CONSOLE (STD) (RIGHT)COLLAR CONSOLE (STD) (RIGHT)
-
117670106 NUT, PUSH ONNUT, PUSH ON
-
125434179 EMBLEM "STAR" PALM BEZEL HANDLEBAREMBLEM "STAR" PALM BEZEL HANDLEBAR
-
135433159-070 COVER HANDLEBAR (BLACK)COVER HANDLEBAR (BLACK)
-
145433160-070 SLIDE HANDLEBAR COVER (BLACK)SLIDE HANDLEBAR COVER (BLACK)
-
154010287 CLIP, DART NYLON (BLACK)CLIP, DART NYLON (BLACK)
-
165434487 COLLAR, CONSOLE (STD) (LEFT)COLLAR, CONSOLE (STD) (LEFT)
-
172460677 HEATER, GRIP LO/MED/HIHEATER, GRIP LO/MED/HI
-
195630187-067 BLOCK, HANDLEBAR (BLACK)BLOCK, HANDLEBAR (BLACK)
-
207542122 NUT NYLOKNUT NYLOK
-
217081051 CABLE, THROTTLECABLE, THROTTLE
-
227511848 SCREWSCREW
-
235432261 HOLDER WIREHOLDER WIRE
-
247555727 WASHERWASHER
-
257512465 SCREW, SETSCREW, SET
-
265431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
277710401 RING, RETAININGRING, RETAINING
-
287555730 WASHERWASHER
