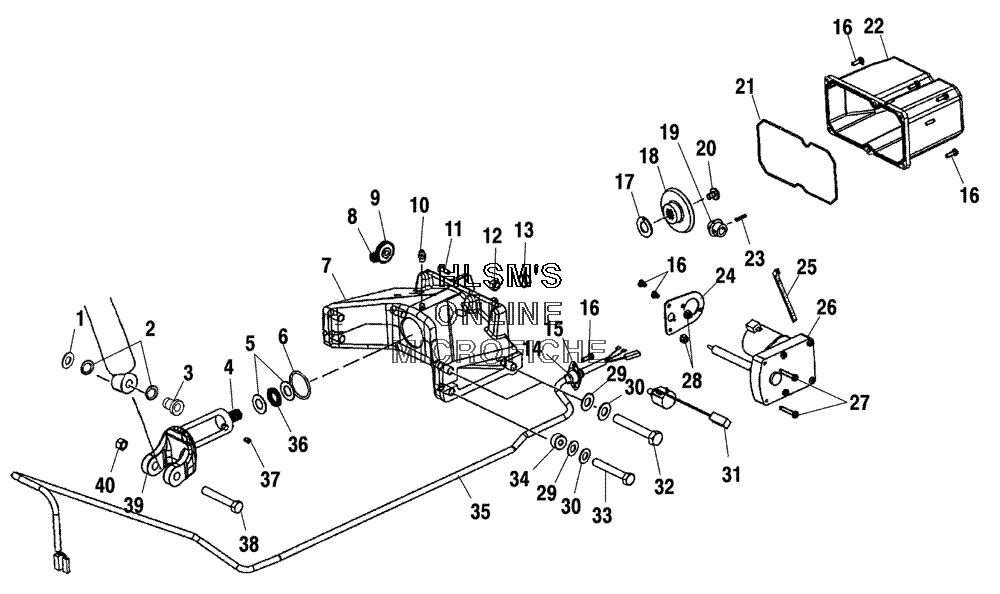

ELECTRIC MODULE (M-10) (ACE) для Polaris 700 CLASSIC (S04ND7CS) - 2004 года выпуска`
-
№АртикулНазвание
-
15133403 BUSHINGBUSHING
-
25411092 O-RINGO-RING
-
35133402 BUSHING FLANGEBUSHING FLANGE
-
45133159 SHAFT SCREW (M-10 ACE)SHAFT SCREW (M-10 ACE)
-
53514388 BEARING RACEWAY (M-10 ACE)BEARING RACEWAY (M-10 ACE)
-
65412229 O-RINGO-RING
-
71541692 CASTING, ASSY ELEC (M-10 ACE) (INCL. 6, 10, 12, 13)CASTING, ASSY ELEC (M-10 ACE) (INCL. 6, 10, 12, 13)
-
85434728 GEAR PLASTIC, SPUR (12T)GEAR PLASTIC, SPUR (12T)
-
95434727 GEAR PLASTIC, SPUR (32T)GEAR PLASTIC, SPUR (32T)
-
107080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
117518088 SCREW HEXAGON SOC FLANGE HEADSCREW HEXAGON SOC FLANGE HEAD
-
123514385 BEARING PLAINBEARING PLAIN
-
133514403 BEARING PLAINBEARING PLAIN
-
145434492 GROMMET WIRE (M-10 ACE)GROMMET WIRE (M-10 ACE)
-
155222998 PLATE, GROMMETPLATE, GROMMET
-
167511866 SCREWSCREW
-
177556201 WASHER-THRUSTWASHER-THRUST
-
183221135 GEAR BEVEL, LARGE (M-10 ACE)GEAR BEVEL, LARGE (M-10 ACE)
-
193221136 GEAR BEVEL, SMALL (M-10 ACE)GEAR BEVEL, SMALL (M-10 ACE)
-
207518152 SCREWSCREW
-
215434293 SEAL COVER (M-10 ACE)SEAL COVER (M-10 ACE)
-
225434292 COVER MOTOR, ELECTRIC (M-10 ACE)COVER MOTOR, ELECTRIC (M-10 ACE)
-
237661161 PIN, DRIVE LOCKPIN, DRIVE LOCK
-
245246536 PLATE MOTOR SUPPORT (M-10 ACE)PLATE MOTOR SUPPORT (M-10 ACE)
-
257080138 CABLE TIECABLE TIE
-
264010596 MOTOR ELECTRIC (M-10 ACE)MOTOR ELECTRIC (M-10 ACE)
-
277518087 SCREW TRX/PIN HEAD TFM-YSCREW TRX/PIN HEAD TFM-Y
-
287547004 NUTNUT
-
297556042 WASHER, FLATWASHER, FLAT
-
307552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
314010780 POTENTIOMETER (M10 ACE)POTENTIOMETER (M10 ACE)
-
327518006 SCREW HEXAGON/CPSCREW HEXAGON/CP
-
337518005 SCREW HEXAGON/CPSCREW HEXAGON/CP
-
345133351 SPACERSPACER
-
352461104 HARNESS WIRE, ELECTRIC (M10 ACE) (INCL. 14)HARNESS WIRE, ELECTRIC (M10 ACE) (INCL. 14)
-
363514387 BEARING THRUST (M-10 ACE)BEARING THRUST (M-10 ACE)
-
377518037 SCREW SETSCREW SET
-
387515438 BOLTBOLT
-
395133325 CLEVIS MACHINED (M-10 ACE)CLEVIS MACHINED (M-10 ACE)
-
407542439 NUT, NYLOKNUT, NYLOK
