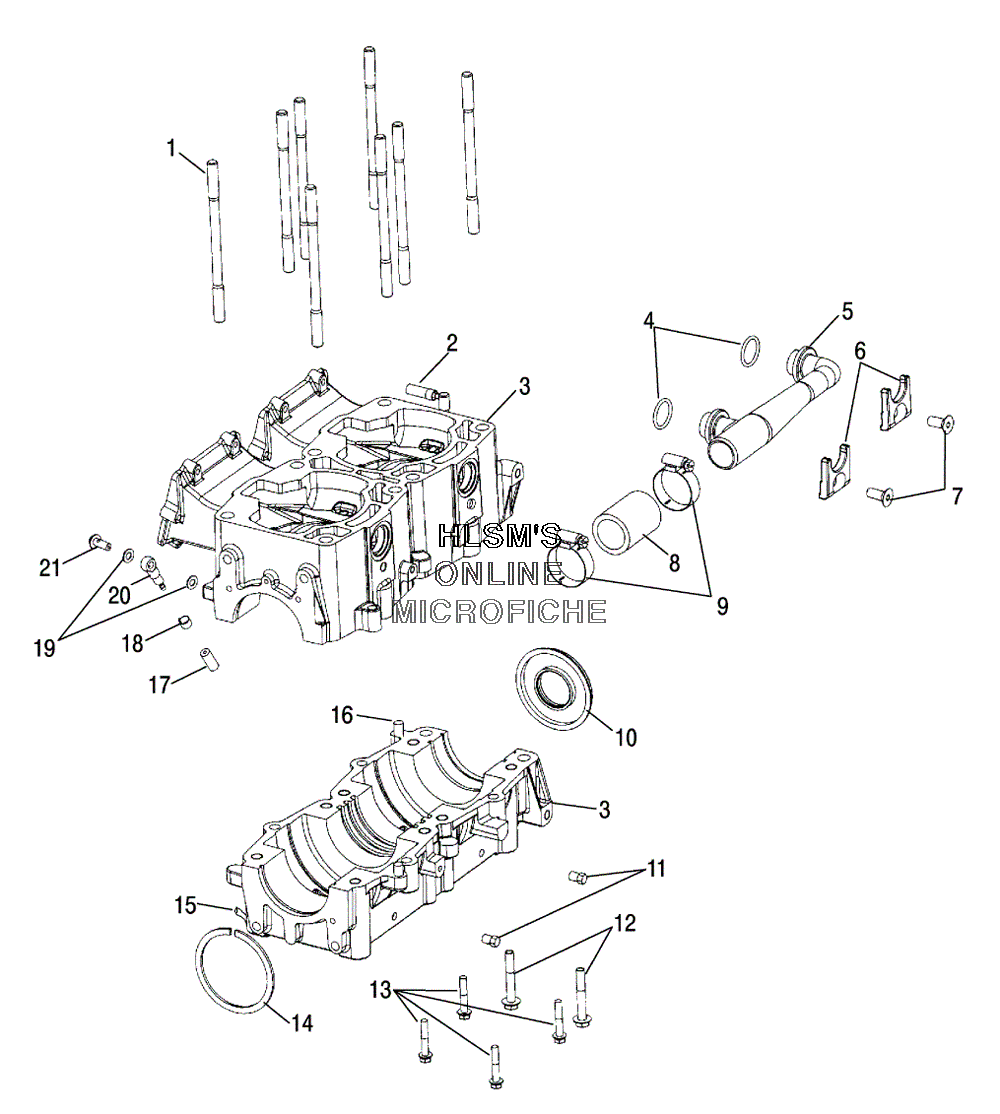

CRANKCASE ASSEMBLY для Polaris 800 PRO XR (S04NZ8CS) - 2004 года выпуска
-
№АртикулНазвание
-
15131677 STUD, CYLINDER FLANGE (152MM)STUD, CYLINDER FLANGE (152MM)
-
27051020 VALVE, CHECK (90 DEG)VALVE, CHECK (90 DEG)
-
32202666 CRANKCASE KIT (INCL. 1, 5, 14, 18)CRANKCASE KIT (INCL. 1, 5, 14, 18)
-
45411125 O-RINGO-RING
-
55630610 MANIFOLD, WATER INLETMANIFOLD, WATER INLET
-
65243431 RETAINER INLET WATER MANIFOLDRETAINER INLET WATER MANIFOLD
-
77516736 SCREWSCREW
-
88450068-04 HOSEHOSE
-
97080560 CLAMP, HOSECLAMP, HOSE
-
105412091 SEAL FLANGE, TRANSCOMSEAL FLANGE, TRANSCOM
-
117051529 PLUGPLUG
-
127516919 SCREWSCREW
-
137516732 SCREWSCREW
-
147710441 RING, RETAININGRING, RETAINING
-
157052322 FITTINGFITTING
-
167663001 PIN, DOWELPIN, DOWEL
-
178450061-600 LINE, FUEL (3MMX7MM)LINE, FUEL (3MMX7MM)
-
187080603 CLAMPCLAMP
-
197555998 WASHER, FLATWASHER, FLAT
-
207052160 VALVE, CHECKVALVE, CHECK
-
217517319 SCREWSCREW
