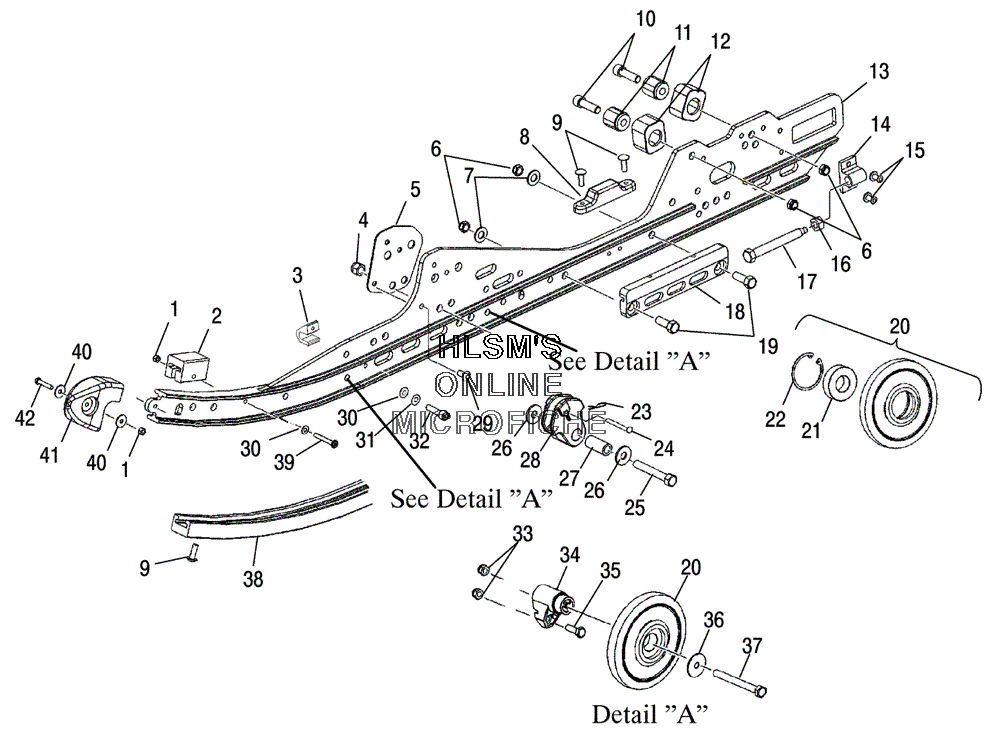

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris 800 PRO XR (S04NZ8CS) - 2004 года выпуска
-
№АртикулНазвание
-
17541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
25521499 BUMPER, JOUNCE (FRONT)BUMPER, JOUNCE (FRONT)
-
35132997 CLAMP HOSECLAMP HOSE
-
47542439 NUT, NYLOKNUT, NYLOK
-
55245991 BRACKET RAIL REINFORCEDBRACKET RAIL REINFORCED
-
67542411 NUT, FLEXLOCNUT, FLEXLOC
-
77555806 WASHER, FLATWASHER, FLAT
-
85432166 BUMPERBUMPER
-
97515199 SCREWSCREW
-
107515545 BOLTBOLT
-
115131113 MOUNT, BUMPERMOUNT, BUMPER
-
125410925 BUMPER, PIVOT ARMBUMPER, PIVOT ARM
-
131541827 RAIL, 121 ASSY (LEFT) (INCL. 2, 8, 12, 14, 41)RAIL, 121 ASSY (LEFT) (INCL. 2, 8, 12, 14, 41)
-
131541828 RAIL, 121 ASSY (RIGHT) (INCL. 2, 8, 12, 14, 41)RAIL, 121 ASSY (RIGHT) (INCL. 2, 8, 12, 14, 41)
-
145132444 BLOCK, IDLER BOLT ADJUSTER 7/16BLOCK, IDLER BOLT ADJUSTER 7/16
-
157621501 RIVETRIVET
-
167547156 NUTNUT
-
177517773 SCREW HEADSCREW HEAD
-
185133359 PLATE RAIL REINFORCED MODPLATE RAIL REINFORCED MOD
-
197512457 BOLTBOLT
-
201590317 WHEEL, BOGIE, PLAIN ASSY (5.62) (INCL. 21, 22)WHEEL, BOGIE, PLAIN ASSY (5.62) (INCL. 21, 22)
-
213514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
227718407 RING RETAINING (1 PER WHEEL)RING RETAINING (1 PER WHEEL)
-
237661644 PIN, HITCHPIN, HITCH
-
247661123 PIN CLEVISPIN CLEVIS
-
257515438 BOLTBOLT
-
267555983 WASHER FLATWASHER FLAT
-
275333948 SPACERSPACER
-
285434389 GUIDE SPRING WIREGUIDE SPRING WIRE
-
297661845 RIVETRIVET
-
307555783 WASHER, FLATWASHER, FLAT
-
317552615 WASHER, LOCKWASHER, LOCK
-
327512014 SCREWSCREW
-
337542324 NUT, NYLOKNUT, NYLOK
-
345631065 BLOCK WHEEL MOUNT, LWTBLOCK WHEEL MOUNT, LWT
-
357515317 BOLTBOLT
-
367556179 WASHER SPRING, CONWASHER SPRING, CON
-
377515346 SCREWSCREW
-
385521632 SLIDER, .45/61" SERVICE BASICSLIDER, .45/61" SERVICE BASIC
-
397510504 SCREWSCREW
-
407555792 WASHERWASHER
-
415434355 CAP RAIL TIP UHMWCAP RAIL TIP UHMW
-
427512007 BOLTBOLT
