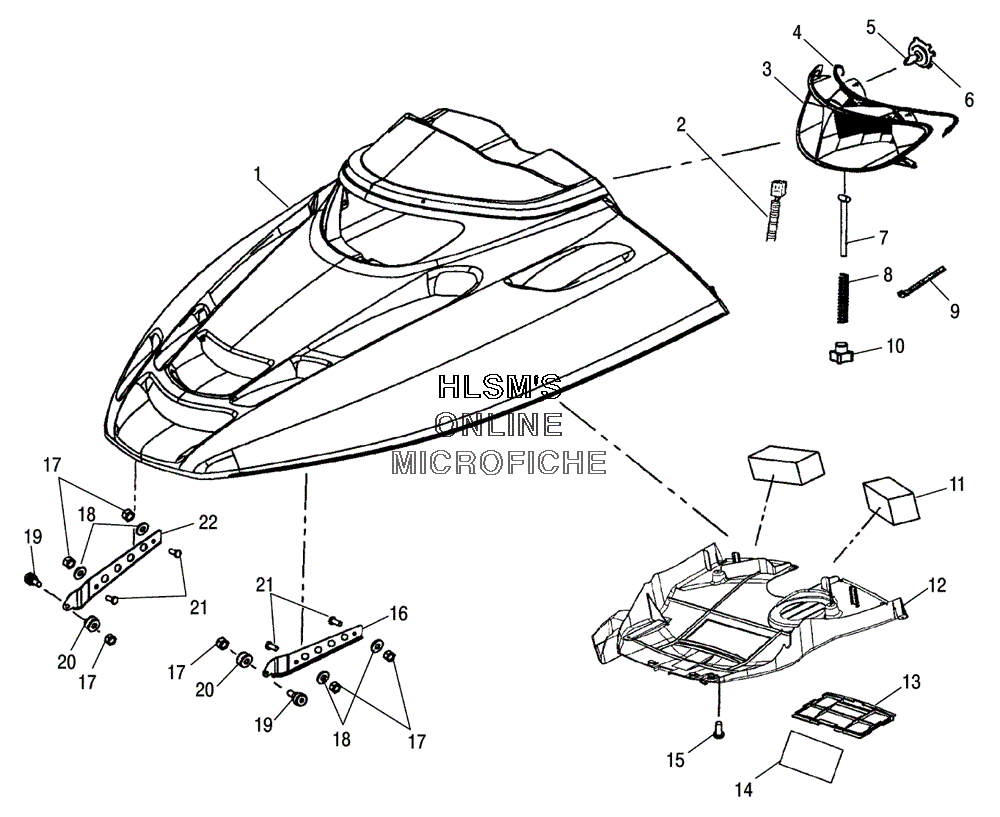

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 800 PRO XR (S04NZ8CS) - 2004 года выпуска
-
№АртикулНазвание
-
12632879-446 HOOD SERVICE (COSMIC SUN) (INCL. FOAM AND FOIL)HOOD SERVICE (COSMIC SUN) (INCL. FOAM AND FOIL)
-
22461015 HARNESS HEADLIGHT, E/RHARNESS HEADLIGHT, E/R
-
32410132 HEADLAMP, 2-BULB ASSY (INCL. BULBS)HEADLAMP, 2-BULB ASSY (INCL. BULBS)
-
45812450 SEAL HEADLIGHT, ONE PIECESEAL HEADLIGHT, ONE PIECE
-
52870448 BULB, QUARTZ.HEADLIGHT H4 60/55WBULB, QUARTZ.HEADLIGHT H4 60/55W
-
64032063 RETAINER, HEADLIGHT BULBRETAINER, HEADLIGHT BULB
-
77517872 BOLT TEE ADJUSTER (2.25)BOLT TEE ADJUSTER (2.25)
-
87041954 SPRING HEADLIGHT ADJUSTSPRING HEADLIGHT ADJUST
-
97080138 CABLE TIECABLE TIE
-
107080887 KNOB, HEADLIGHT ADJUST LOCKINGKNOB, HEADLIGHT ADJUST LOCKING
-
115811793 FOAM, PREFILTERFOAM, PREFILTER
-
122632656 PLENUM ASSY, WITH FOILPLENUM ASSY, WITH FOIL
-
125811948 FOILFOIL
-
125812324 FOILFOIL
-
125812314 FOAM PLENUM SEAL, FORWARD POSTFOAM PLENUM SEAL, FORWARD POST
-
135433660 COVER, HEADLIGHT ACCESSCOVER, HEADLIGHT ACCESS
-
147171028 DECAL SUSPENSION SET UP PRO XDECAL SUSPENSION SET UP PRO X
-
157512068 SCREWSCREW
-
165243567-067 HINGE (UPPER/BLACK/LEFT)HINGE (UPPER/BLACK/LEFT)
-
177542122 NUT NYLOKNUT NYLOK
-
187558301 WASHER, FLATWASHER, FLAT
-
197512113 BOLTBOLT
-
205332403 SPACERSPACER
-
217512240 BOLTBOLT
-
225243568-067 HINGE (UPPER/BLACK/RIGHT)HINGE (UPPER/BLACK/RIGHT)
