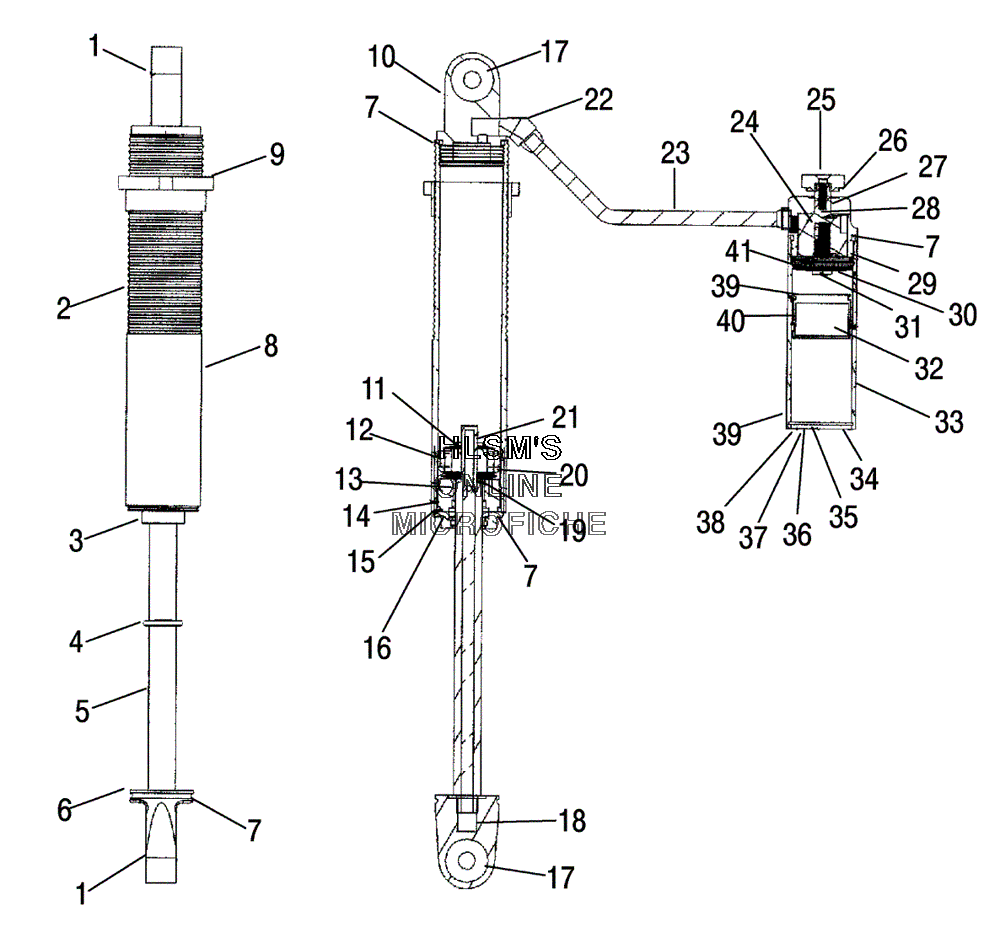

SUSPENSION - IFS SHOCK для Polaris 800 PRO XR (S04NZ8CS) - 2004 года выпуска
-
№АртикулНазвание
-
11800041 END BEARING SNAP RINGEND BEARING SNAP RING
-
21800100 IFS THREADED BODYIFS THREADED BODY
-
31800131 SHAFT SEAL HOUSING ASSYSHAFT SEAL HOUSING ASSY
-
41800095 O-RINGO-RING
-
51800102 SHAFTSHAFT
-
61800116 SPRING RETAINING RINGSPRING RETAINING RING
-
71800027 O-RING BODYO-RING BODY
-
81800191 WEAR SLEEVEWEAR SLEEVE
-
91800046 SPRING RETAINERSPRING RETAINER
-
101800098 LOOP BODYLOOP BODY
-
111800050 3/8" AN WASHER3/8" AN WASHER
-
121800197 PISTON WITH BAND ASSY, .076 (GOLD)PISTON WITH BAND ASSY, .076 (GOLD)
-
131800038 SHAFT BUSHINGSHAFT BUSHING
-
141800037 O-RING SHAFT SEAL HEADO-RING SHAFT SEAL HEAD
-
151800035 SHAFT SEAL U CUPSHAFT SEAL U CUP
-
161800034 WIPER D/TYPEWIPER D/TYPE
-
171800040 END BEARINGEND BEARING
-
181800103 EYELETEYELET
-
191800194 WASHERWASHER
-
201800026 WEAR BANDWEAR BAND
-
211800031 3/8" CRIMP NUT3/8" CRIMP NUT
-
221800193 FITTINGFITTING
-
231800192 HOSE 9" ASSYHOSE 9" ASSY
-
241800195 DRUMDRUM
-
251800123 KNOBKNOB
-
251800196 SCREWSCREW
-
261800126 HOUSING ADJUSTORHOUSING ADJUSTOR
-
261800127 BALL D TENTBALL D TENT
-
261800128 SPRING D TENTSPRING D TENT
-
261800129 O-RINGO-RING
-
271800094 O-RINGO-RING
-
281800052 SHIM VALVESHIM VALVE
-
291800125 BALL CHECKBALL CHECK
-
301800072 SHIM VALVESHIM VALVE
-
311800124 BOLT BALL CHECKBOLT BALL CHECK
-
321800029 WEAR BANDWEAR BAND
-
331800120 BODY RESERVOIRBODY RESERVOIR
-
341800019 RESERVOIR SNAP RINGRESERVOIR SNAP RING
-
351800107 VALVE NEEDLEVALVE NEEDLE
-
361800108 O-RINGO-RING
-
371800109 SCREW BUTTON HEAD 8/32SCREW BUTTON HEAD 8/32
-
381800106 CAP ENDCAP END
-
391800028 O-RING RESERVOIRO-RING RESERVOIR
-
401800189 RESERVOIR PISTON WITH BLEED SCREWRESERVOIR PISTON WITH BLEED SCREW
-
401800190 BLEED SCREW WITH O-RINGBLEED SCREW WITH O-RING
-
411800118 WASHERWASHER
-
417042280 SHOCK IFS, W/ESHOCK IFS, W/E
