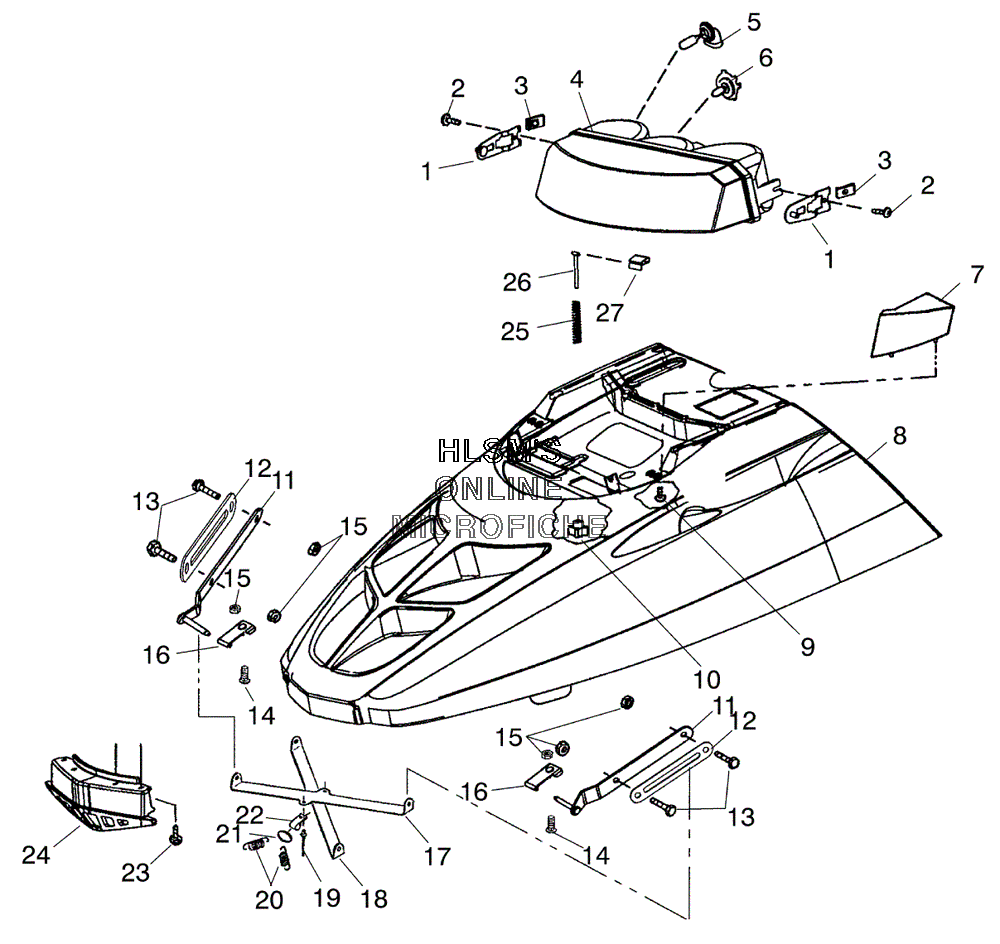

HOOD ASSEMBLY W/ HEADLIGHT для Polaris WIDETRACK LX (S04SU4BS) - 2004 года выпуска
-
№АртикулНазвание
-
11011944-067 MOUNT, WELD HEADLIGHTMOUNT, WELD HEADLIGHT
-
27515107 BOLTBOLT
-
37670057 NUT, SPEEDOMETERNUT, SPEEDOMETER
-
42433016 HEADLAMP, THREE BULB ASSY (INCL. BULBS)HEADLAMP, THREE BULB ASSY (INCL. BULBS)
-
54010253 BULB HEADLIGHT (50 WATT)BULB HEADLIGHT (50 WATT)
-
62870448 BULB, QUARTZ HEADLIGHTBULB, QUARTZ HEADLIGHT
-
75431855 LENS, CLEAR REFLECTOR (LEFT)LENS, CLEAR REFLECTOR (LEFT)
-
75431856 LENS, CLEAR REFLECTOR (RIGHT)LENS, CLEAR REFLECTOR (RIGHT)
-
82632227-341 HOOD, HYB SERVICE ASSY (SONIC BLUE) (INCL. FOAM/FOIL)HOOD, HYB SERVICE ASSY (SONIC BLUE) (INCL. FOAM/FOIL)
-
97511953 SCREWSCREW
-
107080887 KNOB, HEADLIGHT ADJUST LOCKINGKNOB, HEADLIGHT ADJUST LOCKING
-
111012750 HINGE (LEFT/UPPER)HINGE (LEFT/UPPER)
-
111012751 HINGE (RIGHT/UPPER)HINGE (RIGHT/UPPER)
-
125242948 PLATE BOLTPLATE BOLT
-
137515184 BOLTBOLT
-
147512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
157542122 NUT NYLOKNUT NYLOK
-
165244395 PLATE, HINGE (LOWER)PLATE, HINGE (LOWER)
-
175242945 BRACE, HOOD (UPPER)BRACE, HOOD (UPPER)
-
185242946 BRACE, HOOD (LOWER)BRACE, HOOD (LOWER)
-
197661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
207041732 SPRING EXTENSIONSPRING EXTENSION
-
217041760 SPRING ATTACHOMETERMENT RINGSPRING ATTACHOMETERMENT RING
-
227080372 CLAMP, RETAINERCLAMP, RETAINER
-
237517441 SCREW (.75)SCREW (.75)
-
245432931 SCREEN, HYB (FRONT)SCREEN, HYB (FRONT)
-
257041308 SPRING, HEADLIGHT ADJUSTERSPRING, HEADLIGHT ADJUSTER
-
267517746 BOLT, TEE ADJUSTER (2.25)BOLT, TEE ADJUSTER (2.25)
-
277670040 CLIP U TYPECLIP U TYPE
