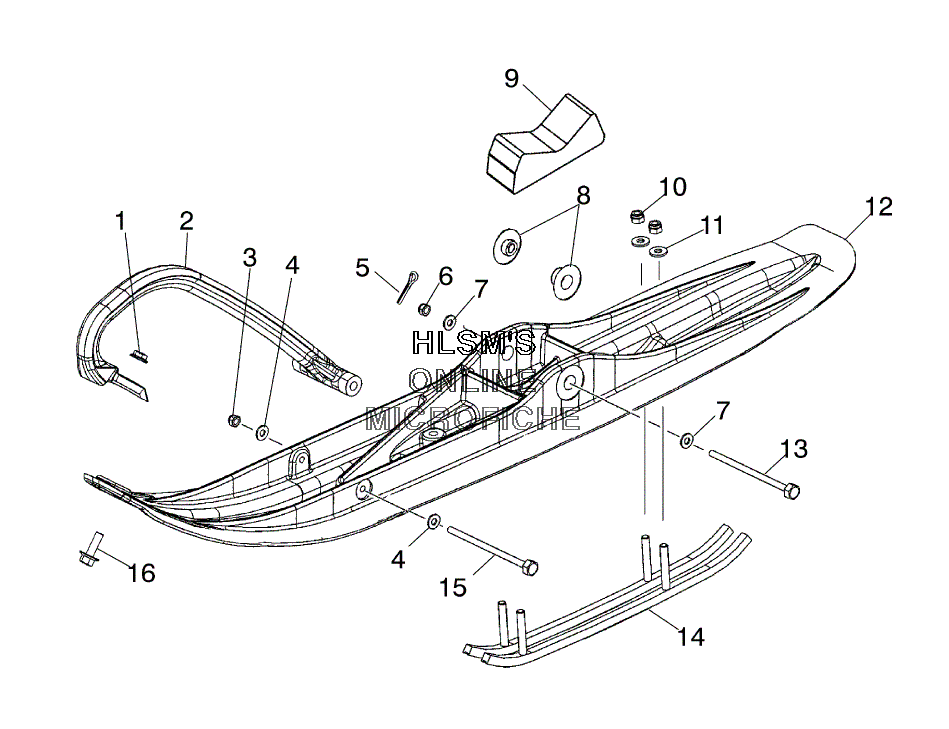

SKI ASSEMBLY для Polaris WIDETRACK LX (S04SU4BS) - 2004 года выпуска
-
№АртикулНазвание
-
17542321 NUT, FLANGENUT, FLANGE
-
25434618-070 TOE PLASTIC SKI (BLACK)TOE PLASTIC SKI (BLACK)
-
37542122 NUT NYLOKNUT NYLOK
-
47558301 WASHER, FLATWASHER, FLAT
-
57661209 PIN COTTERPIN COTTER
-
67542438 NUT, CASTLENUT, CASTLE
-
77556130 WASHERWASHER
-
85132637 BUSHING, METAL (.390 ID)BUSHING, METAL (.390 ID)
-
95412018 STOP, RUBBERSTOP, RUBBER
-
107542324 NUT, NYLOKNUT, NYLOK
-
117555843 WASHER WROUGHTWASHER WROUGHT
-
121821337-070 SKI, WIDE SERVICE ASSY (LEFT/BLACK) (INCL. 8)SKI, WIDE SERVICE ASSY (LEFT/BLACK) (INCL. 8)
-
121821338-070 SKI, WIDE SERVICE (RIGHT/BLACK) (INCL. 8)SKI, WIDE SERVICE (RIGHT/BLACK) (INCL. 8)
-
137515462 SCREWSCREW
-
142874334 SKAG, CARBIDE KIT (4" )SKAG, CARBIDE KIT (4" )
-
157518047 BOLT HEXAGON CAPBOLT HEXAGON CAP
-
167518070 SCREWSCREW
