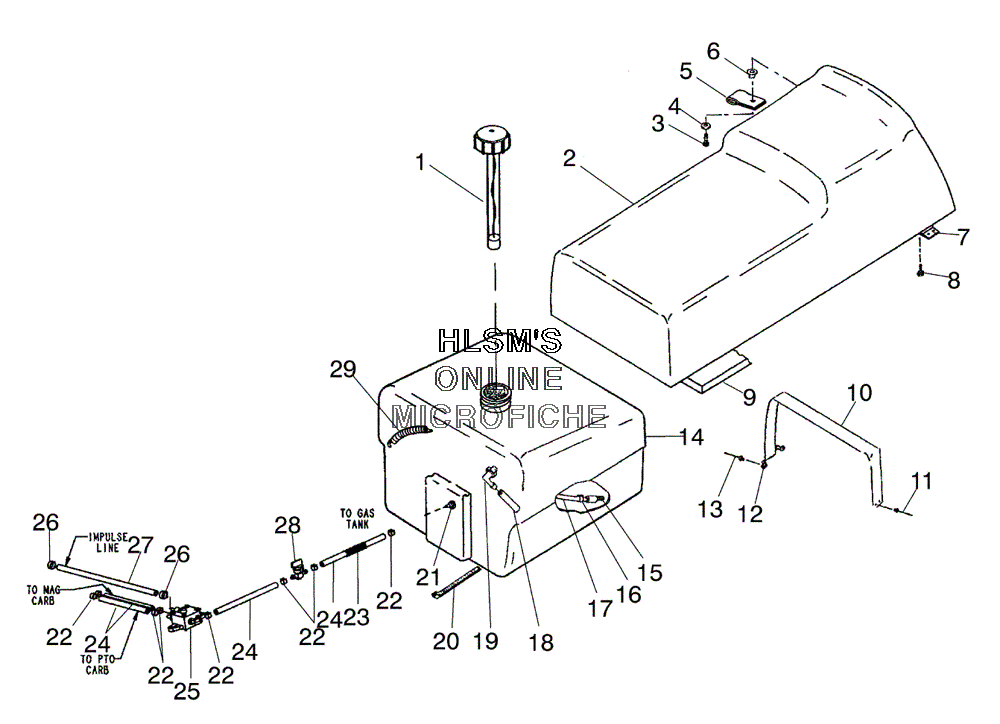

SEAT W/ GAS TANK ASSEMBLY для Polaris WIDETRACK LX (S04SU4BS) - 2004 года выпуска
-
№АртикулНазвание
-
12511246 CAP, GAS WITH GAUGECAP, GAS WITH GAUGE
-
15810513 GASKET, GAS CAPGASKET, GAS CAP
-
22682780 SEAT, ASSY 2-UP (INCL. 7)SEAT, ASSY 2-UP (INCL. 7)
-
22682781 SEAT COVER, ASSY 2-UPSEAT COVER, ASSY 2-UP
-
37511989 SCREWSCREW
-
47558203 WASHERWASHER
-
55810464 PULL, SEATPULL, SEAT
-
67541930 TEENUTTEENUT
-
87511990 SCREWSCREW
-
95811339 PAD, SEAT, BOTTOMPAD, SEAT, BOTTOM
-
102690086 SEAT BELT WITH TRAK (INCL. 12)SEAT BELT WITH TRAK (INCL. 12)
-
117621467 RIVET, BLINDRIVET, BLIND
-
137661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
142520180 TANK, FUEL ASSY (INCL. 15-17, 19, 21)TANK, FUEL ASSY (INCL. 15-17, 19, 21)
-
157052243 FUEL PICKUP, WITH FILTERFUEL PICKUP, WITH FILTER
-
167080402 RING, COMPRESSIONRING, COMPRESSION
-
178350019-600 FUEL LINE ESTERFUEL LINE ESTER
-
188450061-600 LINE, FUEL (3MMX7MM)LINE, FUEL (3MMX7MM)
-
197052095 FITTING (90 DEG, 1/8)FITTING (90 DEG, 1/8)
-
207080804 CABLE TIE RELEASABLE (5 1/2")CABLE TIE RELEASABLE (5 1/2")
-
217052023 FITTING OUTLETFITTING OUTLET
-
227080307 CLAMP, HOSECLAMP, HOSE
-
234010051-15 CONDUIT CONVOLUTED (30 CM)CONDUIT CONVOLUTED (30 CM)
-
248350018-600 TUBING ETHER ERETHNE (160 CM)TUBING ETHER ERETHNE (160 CM)
-
267080003 CLAMP, HOSECLAMP, HOSE
-
278450040-600 LINE FUEL (1/4 ID/600 CM)LINE FUEL (1/4 ID/600 CM)
-
287052248 VALVE FUEL, PLASTIC INLINE (1/4")VALVE FUEL, PLASTIC INLINE (1/4")
-
297042020 SPRING, TANKSPRING, TANK
