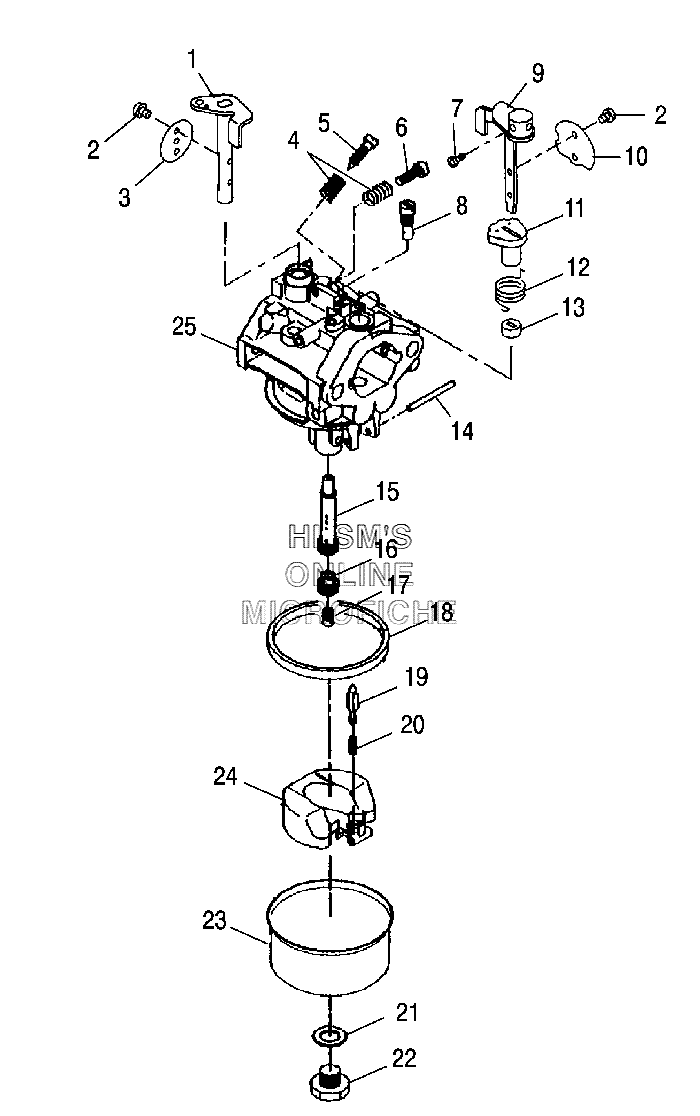

CARBURETOR ASSEMBLY для Polaris 120 PRO X (S06WB1AS) - 2006 года выпуска
-
№АртикулНазвание
-
13086962 SHAFT, THROTTLE ASSYSHAFT, THROTTLE ASSY
-
23086963 SCREWSCREW
-
33086654 VAVLE, THROTTLEVAVLE, THROTTLE
-
43086672 SPRINGSPRING
-
53086658 ADJUSTER, CARBADJUSTER, CARB
-
63086671 SCREW, ADJUSTSCREW, ADJUST
-
73086875 SCREWSCREW
-
83088293 PILOT-JET (#50)PILOT-JET (#50)
-
93086659 LEVER, CHOKELEVER, CHOKE
-
103086964 VALVE, CHOKEVALVE, CHOKE
-
113086876 RINGRING
-
123086874 SPRING, RETURNSPRING, RETURN
-
133086873 RINGRING
-
143086664 PINPIN
-
153086669 NOZZLE, MAINNOZZLE, MAIN
-
163086675 HOLDER, GUIDEHOLDER, GUIDE
-
173086670 JET, MAIN (IF BUILT BEFORE 7/29/05)JET, MAIN (IF BUILT BEFORE 7/29/05)
-
173089779 JET, MAIN #70 (IF BUILT AFTER 7/29/05)JET, MAIN #70 (IF BUILT AFTER 7/29/05)
-
183086667 GASKET, BOWLGASKET, BOWL
-
193086663 NEEDLENEEDLE
-
203086674 SPRING, NEEDLESPRING, NEEDLE
-
213086666 PACKINGPACKING
-
223086662 BOLTBOLT
-
233086665 FLOATCHAMBER BODY ASSYFLOATCHAMBER BODY ASSY
-
243086668 FLOATFLOAT
-
253086652 CARB ASSY (INCL. ALL)CARB ASSY (INCL. ALL)
