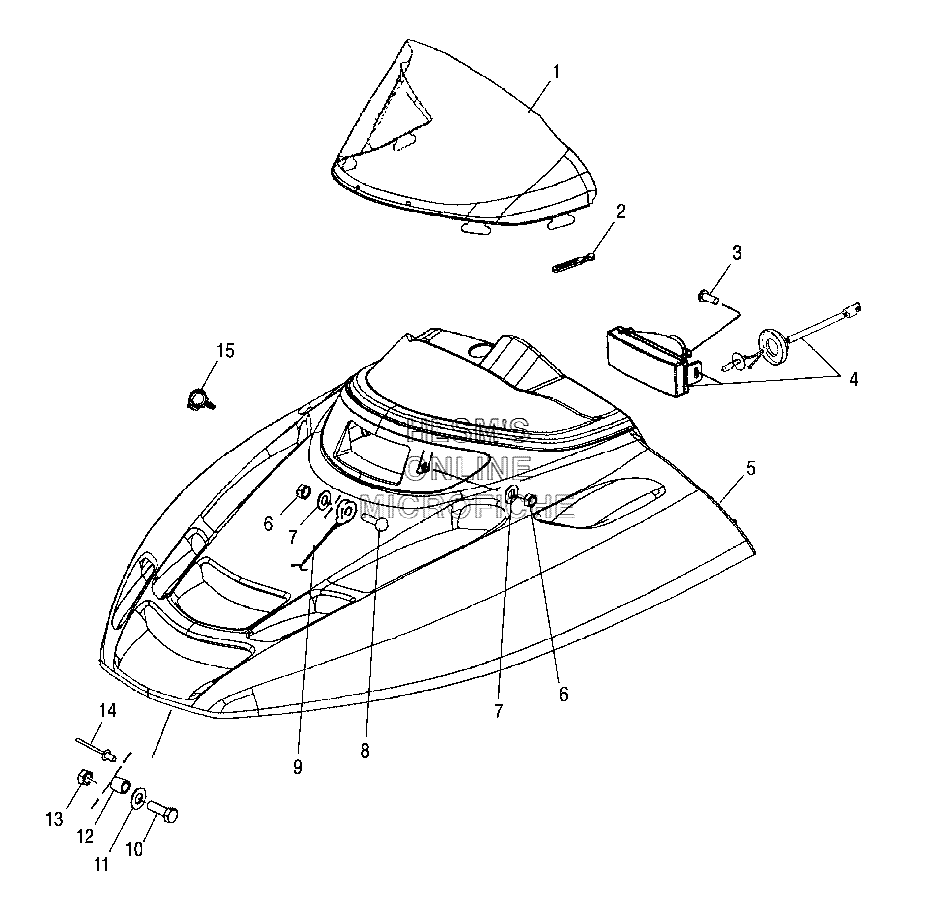

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 120 PRO X (S06WB1AS) - 2006 года выпуска
-
№АртикулНазвание
-
15436129 WINDSHIELD 120 PRO XR (BLACK)WINDSHIELD 120 PRO XR (BLACK)
-
25410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
37517703 BOLT, CARRBOLT, CARR
-
44010341 HEADLIGHT, SINGLE BEAMHEADLIGHT, SINGLE BEAM
-
44010207 BULB, HARNESS ASSY (35W,FOG BEAM)BULB, HARNESS ASSY (35W,FOG BEAM)
-
55433525-293 HOOD (RED)HOOD (RED)
-
67541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
77558201 WASHER, FLATWASHER, FLAT
-
87511989 SCREWSCREW
-
97080861 CABLE, HOODCABLE, HOOD
-
107515159 SCREWSCREW
-
117558301 WASHER, FLATWASHER, FLAT
-
125333941 SPACERSPACER
-
137542122 NUT-NYLOKNUT-NYLOK
-
147621472 RIVETRIVET
-
157670102 CLIPCLIP
