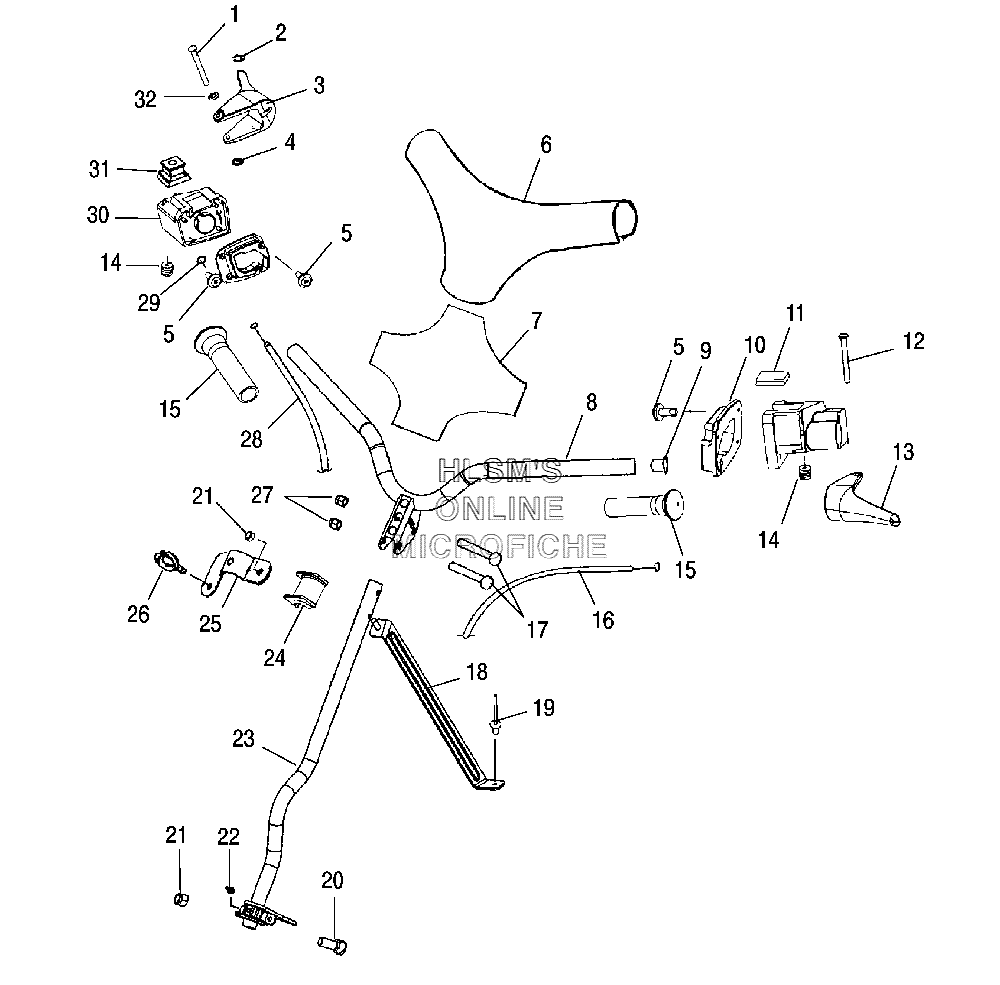

HANDLEBAR ASSEMBLY W/ CONTROLS для Polaris 120 PRO X (S06WB1AS) - 2006 года выпуска
-
№АртикулНазвание
-
17661624 PIN-RETAININGPIN-RETAINING
-
27710503 RING, RETAININGRING, RETAINING
-
35433527 LEVER-THROTTLELEVER-THROTTLE
-
47710401 RING, RETAININGRING, RETAINING
-
57511848 SCREWSCREW
-
62682537 HANDLEBAR, PADHANDLEBAR, PAD
-
75811884 FOAM, HANDLEBAR PADFOAM, HANDLEBAR PAD
-
81821087-067 WELD-HANDLEBAR, ADJ (BLACK)WELD-HANDLEBAR, ADJ (BLACK)
-
95431096 PLUGPLUG
-
105430604 BLOCK-ADAPTERBLOCK-ADAPTER
-
115433622 INSERT-BRAKE/THROTTLE BLOCKINSERT-BRAKE/THROTTLE BLOCK
-
127661617 RIVET,RIVET,
-
135433528 LEVER-BRAKELEVER-BRAKE
-
147512465 SCREW, SETSCREW, SET
-
155433476 GRIP-HANDLEBARGRIP-HANDLEBAR
-
167081004 CABLE-BRAKE, W/ADAPTERCABLE-BRAKE, W/ADAPTER
-
177515316 BOLTBOLT
-
181013096-067 BRACE, STEERING POST (LEFT/BLACK)BRACE, STEERING POST (LEFT/BLACK)
-
181013097-067 BRACE, STEERING POST (RIGHT/BLACK)BRACE, STEERING POST (RIGHT/BLACK)
-
197621467 RIVET, BLINDRIVET, BLIND
-
207512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
217542122 NUT-NYLOKNUT-NYLOK
-
227080433 FITTING, LUBRICATION, THREADEDFITTING, LUBRICATION, THREADED
-
231821086-067 WELD-STEERING POST (BLACK)WELD-STEERING POST (BLACK)
-
245433416 BUSHING, STEERING (UPPER)BUSHING, STEERING (UPPER)
-
255244048 BRKT, STEER POSTBRKT, STEER POST
-
264020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
277542343 NUT, FLANGENUT, FLANGE
-
287080860 CABLE, THROTTLECABLE, THROTTLE
-
297555727 WASHERWASHER
-
305431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
314010316 SWTCH, AUX SHUT-OFF, CLOSEDSWTCH, AUX SHUT-OFF, CLOSED
-
327555730 WASHERWASHER
