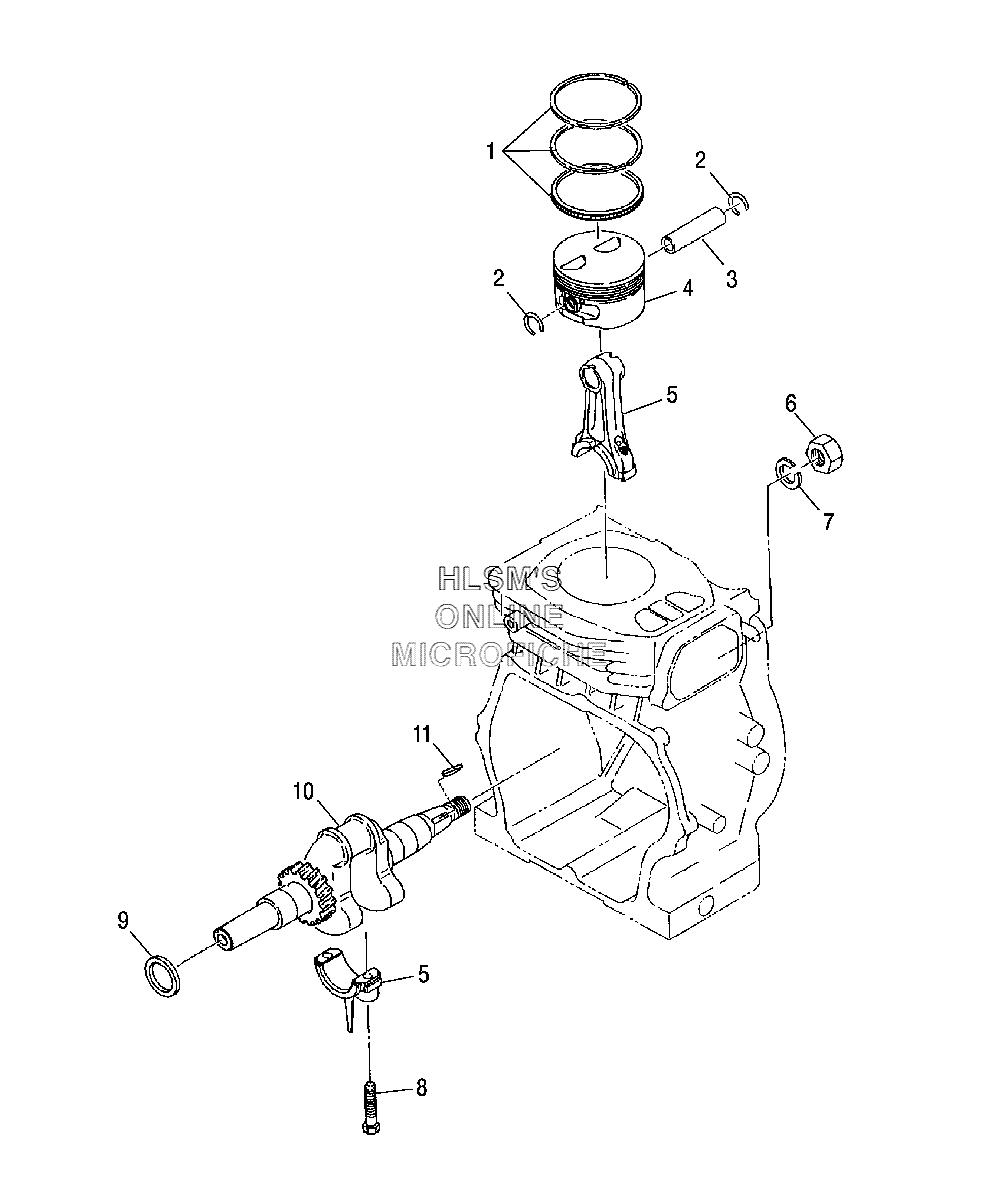

PISTON AND CRANKSHAFT для Polaris 120 PRO X (S06WB1AS) - 2006 года выпуска
-
№АртикулНазвание
-
13088203 SET, PISTON, RING (STD)SET, PISTON, RING (STD)
-
13088204 SET, PISTON, RING (.010''/.25MM O/S)SET, PISTON, RING (.010''/.25MM O/S)
-
13088205 SET, PISTON, RING (.020''/.50MM O/S)SET, PISTON, RING (.020''/.50MM O/S)
-
23086553 CLIP, PISTON PINCLIP, PISTON PIN
-
33086546 PIN, PISTONPIN, PISTON
-
43086969 SET, PISTON (STD) (INCL. 2)SET, PISTON (STD) (INCL. 2)
-
43086970 SET, PISTON (.010''/.25MM O/S) (INCL. 2)SET, PISTON (.010''/.25MM O/S) (INCL. 2)
-
43086971 SET, PISTON (.020''/.50MM O/S) (INCL. 2)SET, PISTON (.020''/.50MM O/S) (INCL. 2)
-
53086544 ROD, CONNECTING (INCL. 8)ROD, CONNECTING (INCL. 8)
-
63240294 NUTNUT
-
73086540 WASHER, SPRINGWASHER, SPRING
-
83086545 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
93086537 SPACER (0.6)SPACER (0.6)
-
93086538 SPACER (0.8)SPACER (0.8)
-
93086539 SPACER (1.0)SPACER (1.0)
-
103086949 CRANKSHAFTCRANKSHAFT
-
113086536 KEY, WOODRUFFKEY, WOODRUFF
Все узлы модели:
- CARBURETOR ASSEMBLY
- CLUTCH ASSEMBLY
- CONSOLE W/WIRE HARNESS
- CRANKCASE ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- GOVERNOR
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD ASSEMBLY W/ WINDSHIELD
- INTAKE ASSEMBLY
- NOSEPAN ASSEMBLY
- • PISTON AND CRANKSHAFT
- SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL W/ BLOWER HOUSING
- SUSPENSION - FRONT W/ STEERING
- SUSPENSION - REAR
- TOOL KIT
- TUNNEL ASSEMBLY
