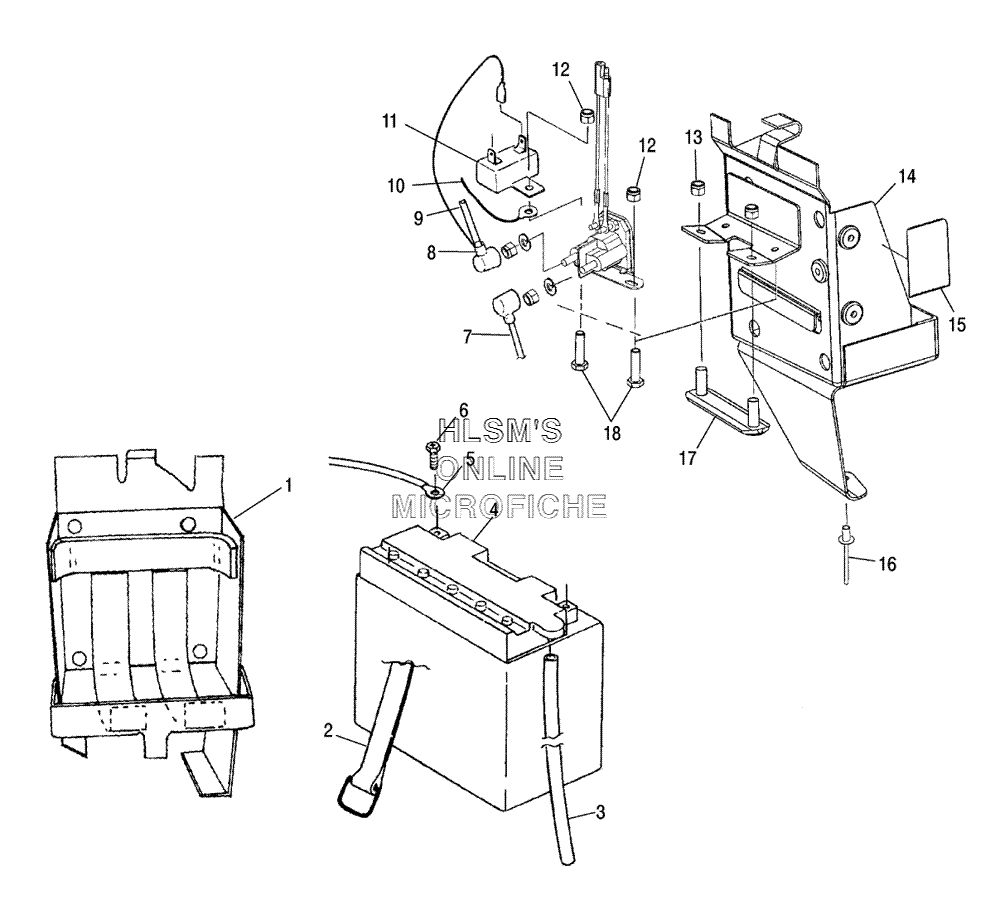

BATTERY BOX для Polaris 500 Classic (S06ND4BS) - 2006 года выпуска
-
№АртикулНазвание
-
15810290 PAD, BATTERYPAD, BATTERY
-
22450020 BATTERY HOLD DOWN STRAP ASSYBATTERY HOLD DOWN STRAP ASSY
-
35433681 TUBE, BATTERY VENT (400 MM)TUBE, BATTERY VENT (400 MM)
-
44140006 BATTERYBATTERY
-
54010114 CABLE, 11" BATTERY (BLACK)CABLE, 11" BATTERY (BLACK)
-
62200361 BATTERY BOLT KIT (SHORT)BATTERY BOLT KIT (SHORT)
-
74010107 CABLE, SOLENOID/STRUT (BLACK) (16.5")CABLE, SOLENOID/STRUT (BLACK) (16.5")
-
85410346 INSULATED CABLE SOLENOIDINSULATED CABLE SOLENOID
-
92460393 CABLE SOLENOID ASSYCABLE SOLENOID ASSY
-
104010108 WIRE, JUMPER SOLENOID/BATTERY (8.5")WIRE, JUMPER SOLENOID/BATTERY (8.5")
-
112434008 BREAKER, CIRCUITBREAKER, CIRCUIT
-
127541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
137542122 NUT NYLOKNUT NYLOK
-
141013679-067 WELD BATTERY BOX (BLACK)WELD BATTERY BOX (BLACK)
-
155810129 FOIL TAPE (4X6)FOIL TAPE (4X6)
-
167621467 RIVET, BLINDRIVET, BLIND
-
171013385 WELD STUD PLATEWELD STUD PLATE
-
187511930 SCREWSCREW
