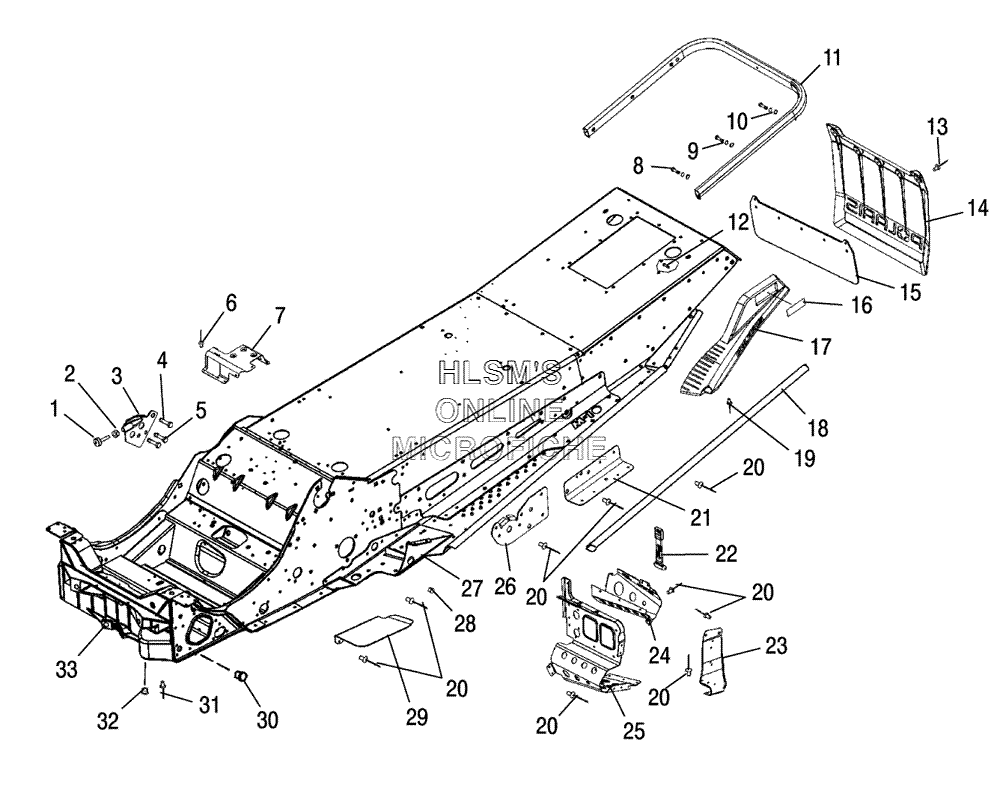

FRAME - CHASSIS для Polaris 500 Classic (S06ND4BS) - 2006 года выпуска

№

Артикул

Название
1

3021104 STOP, TORQUE COURSE

STOP, TORQUE COURSE

3 120 ₽
2

7542404 NUT

NUT

460 ₽
3

1013399 WELD TORQUE STOP

WELD TORQUE STOP

6 870 ₽
4

7517632 SCREW

SCREW

790 ₽
5

7517854 SCREW SPEC Y

SCREW SPEC Y

830 ₽
6

7621432 RIVET

RIVET

110 ₽
7

5246330 BRACKET OIL TANK/HOSE SUPPORT

BRACKET OIL TANK/HOSE SUPPORT

3 330 ₽
8

7512232 BOLT

BOLT

150 ₽
9

7552801 WASHER, SPRING LOCK

WASHER, SPRING LOCK

460 ₽
10

7558301 WASHER, FLAT

WASHER, FLAT

110 ₽
11

2632165-309 BUMPER ASSY (REAR)

BUMPER ASSY (REAR)

29 120 ₽
12

7517441 SCREW (.75)

SCREW (.75)

630 ₽
13

7621418 RIVET, POP

RIVET, POP

250 ₽
14

5434847-1038 FLAP SNO, EDGE LONG (BLACK/WHITE)

FLAP SNO, EDGE LONG (BLACK/WHITE)

19 760 ₽
15

5812430 BACKER SNOW FLAP

BACKER SNOW FLAP

4 580 ₽
16

2670133 REFLECTOR ASSY (RED)

REFLECTOR ASSY (RED)

1 460 ₽
17

2632443-070 SNOWSKIRT/REFLECTOR ASSY (BLACK/LEFT) (INCL. 16)

SNOWSKIRT/REFLECTOR ASSY (BLACK/LEFT) (INCL. 16)

12 480 ₽
17

2632444-070 SNOWSKIRT/REFLECTOR ASSY (BLACK/RIGHT) (INCL. 16)

SNOWSKIRT/REFLECTOR ASSY (BLACK/RIGHT) (INCL. 16)

12 480 ₽
18

5245118 BRACE TUNNEL ROLL

BRACE TUNNEL ROLL

5 410 ₽
19

7621472 RIVET

RIVET

250 ₽
20

7661637 RIVET, INTERLOCK Z

RIVET, INTERLOCK Z

150 ₽
21

5244997-067 BRACE TUNNEL (LOWER/LEFT/BLACK)

BRACE TUNNEL (LOWER/LEFT/BLACK)

4 990 ₽
21

5244998-067 BRACE TUNNEL (LOWER/RIGHT/BLACK)

BRACE TUNNEL (LOWER/RIGHT/BLACK)

4 990 ₽
22

5433150 STRAP

STRAP

4 160 ₽
23

5246310 SUPPORT FOOTREST (LEFT)

SUPPORT FOOTREST (LEFT)

4 990 ₽
23

5246311 SUPPORT FOOTREST (RIGHT)

SUPPORT FOOTREST (RIGHT)

4 990 ₽
24

5245457 MOUNT CONSOLE TOE CLIP (LEFT)

MOUNT CONSOLE TOE CLIP (LEFT)

6 870 ₽
24

5245458 MOUNT CONSOLE TOE CLIP (RIGHT)

MOUNT CONSOLE TOE CLIP (RIGHT)

6 870 ₽
25

5245288 FOOTREST (LEFT)

FOOTREST (LEFT)

35 360 ₽
25

5247205 FOOTREST (RIGHT)

FOOTREST (RIGHT)

18 720 ₽
26

5244999-067 PAD SUSPENSION (FRONT/LEFT/BLACK)

PAD SUSPENSION (FRONT/LEFT/BLACK)

0 ₽
26

5245001-067 PAD SUSPENSION (FRONT/RIGHT/BLACK)

PAD SUSPENSION (FRONT/RIGHT/BLACK)

2 910 ₽
27

2202059 MOUNT, TRAILING ARM KIT (LEFT)

MOUNT, TRAILING ARM KIT (LEFT)

37 440 ₽
27

2202598 MOUNT, TRAILING ARM KIT (RIGHT)

MOUNT, TRAILING ARM KIT (RIGHT)

20 800 ₽
28

7081085 PLUG BARBED

PLUG BARBED

1 250 ₽
29

5246066 GUARD BELT

GUARD BELT

15 600 ₽
30

7080416 PLUG, HOLE

PLUG, HOLE

750 ₽
31

7661130 RIVET

RIVET

250 ₽
32

7081076 PLUG HOLE (1.25)

PLUG HOLE (1.25)

460 ₽
33

5132292 BULKHEAD, MACH (FRONT)

BULKHEAD, MACH (FRONT)

29 120 ₽
