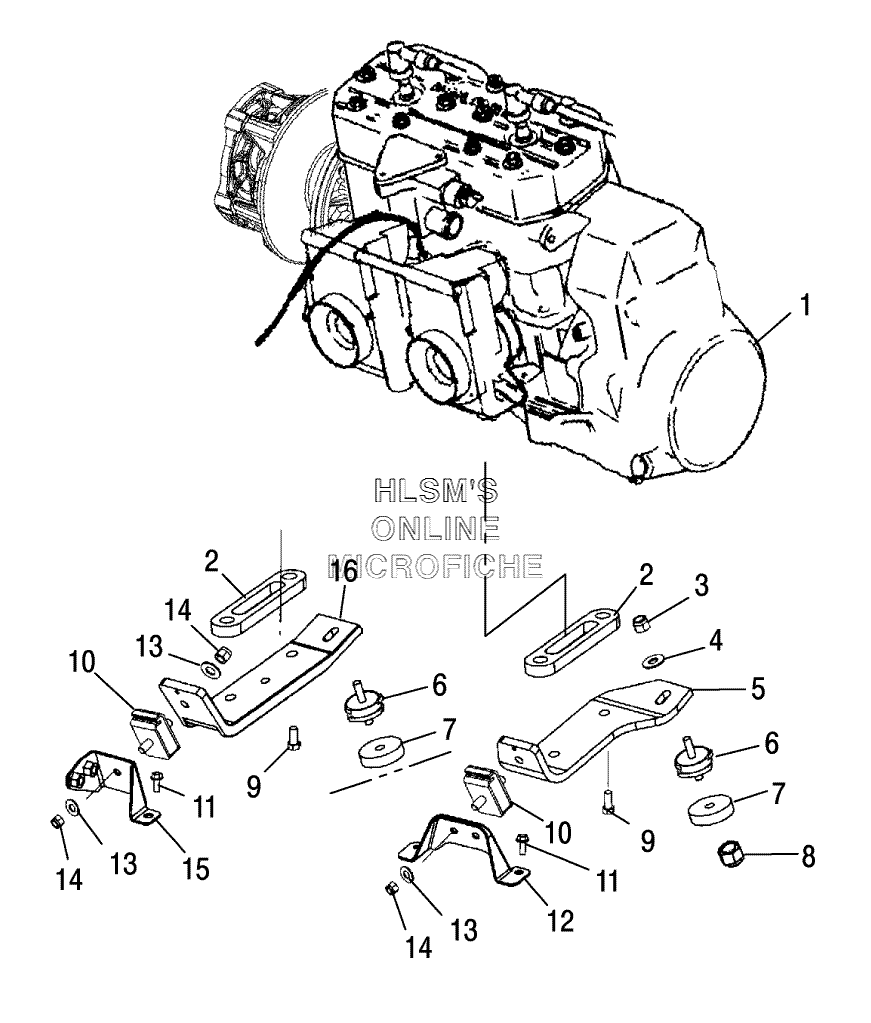

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 500 Classic (S06ND4BS) - 2006 года выпуска
-
№АртикулНазвание
-
13086877 ENGINE NOTE:ENGINE NOTE:
-
25245021 SPACER ENGINE (.38)SPACER ENGINE (.38)
-
37542451 NUT, NYLOKNUT, NYLOK
-
47555893 WASHER, FLATWASHER, FLAT
-
55246380 STRAP ENGINE (RIGHT)STRAP ENGINE (RIGHT)
-
63021220 MOUNT ENGINEMOUNT ENGINE
-
75245117 SPACER ENGINE MOUNTSPACER ENGINE MOUNT
-
87547180 NUT FLANGED, 3/8-16 NYLON ZNUT FLANGED, 3/8-16 NYLON Z
-
97517399 SCREWSCREW
-
103021206 MOUNT ENGINEMOUNT ENGINE
-
117517854 SCREW SPEC YSCREW SPEC Y
-
125245044 BRACKET ENGINE MOUNT FORMED (RIGHT)BRACKET ENGINE MOUNT FORMED (RIGHT)
-
137555806 WASHER, FLATWASHER, FLAT
-
147547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
151013397 WELD ENGINE MOUNT BRACKET (LEFT)WELD ENGINE MOUNT BRACKET (LEFT)
-
165245473 STRAP ENGINE MOUNT (LEFT)STRAP ENGINE MOUNT (LEFT)
