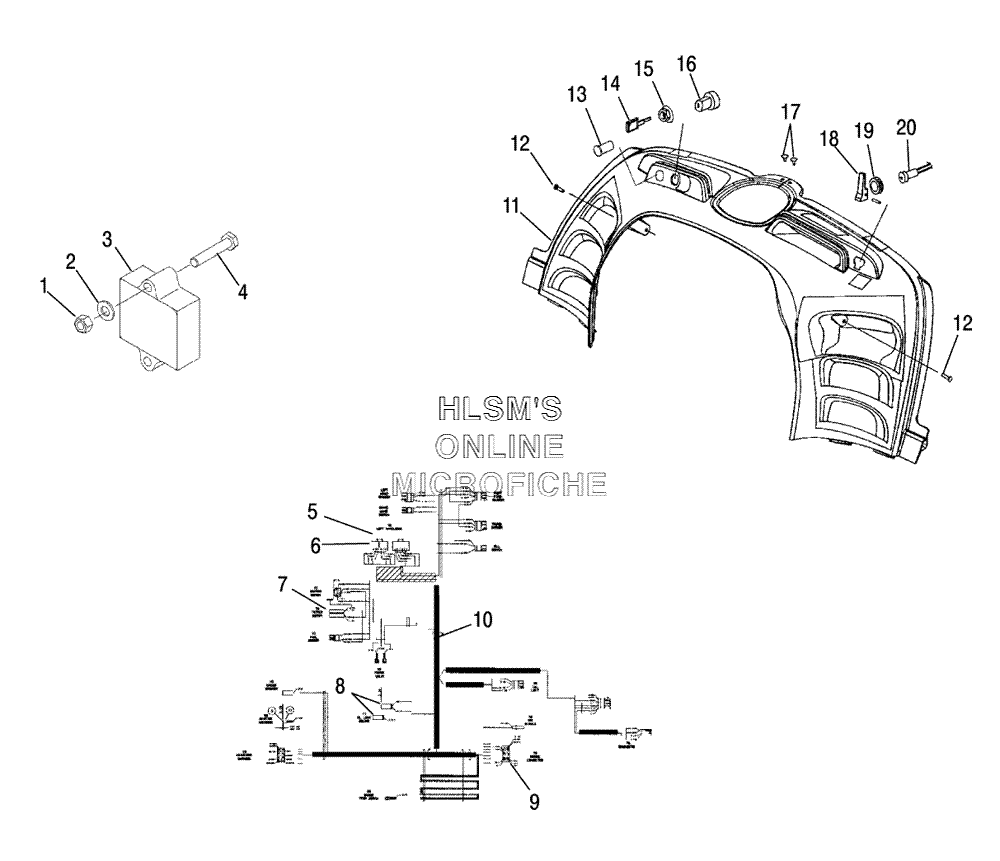

CONSOLE для Polaris 500 Classic (S06ND4BS) - 2006 года выпуска
-
№АртикулНазвание
-
17541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
27555746 WASHERWASHER
-
34010794 REGULATOR AC/DCREGULATOR AC/DC
-
47517263 SCREW, HEXAGON SEMSSCREW, HEXAGON SEMS
-
54010193 HOUSING CONNECTORHOUSING CONNECTOR
-
64010192 SOCKETSOCKET
-
74020063 HOUSING, PACKHOUSING, PACK
-
84020153 HOUSING, 1 CIRCUITHOUSING, 1 CIRCUIT
-
94020057 HOUSINGHOUSING
-
102461147 HARNESS MAIN EDGE NONTPS FS DIAGHARNESS MAIN EDGE NONTPS FS DIAG
-
115434483-070 CONSOLE, SRP WITH ACCESSORY (BLACK)CONSOLE, SRP WITH ACCESSORY (BLACK)
-
127515199 SCREWSCREW
-
134010638 RECEPTACLE POD MOUNT, 12 VOLTRECEPTACLE POD MOUNT, 12 VOLT
-
145410611 N/A, USE COMPONENTS NOTE:N/A, USE COMPONENTS NOTE:
-
157547035 NUT, IGNITIONNUT, IGNITION
-
162200358 IGNITION SWITCH KITIGNITION SWITCH KIT
-
177670088 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
-
185432943 CHOKE LEVER REPAIR KITCHOKE LEVER REPAIR KIT
-
195432944 NUT, CHOKENUT, CHOKE
-
207080753 CABLE CHOKE (INCL. 18, 19)CABLE CHOKE (INCL. 18, 19)
