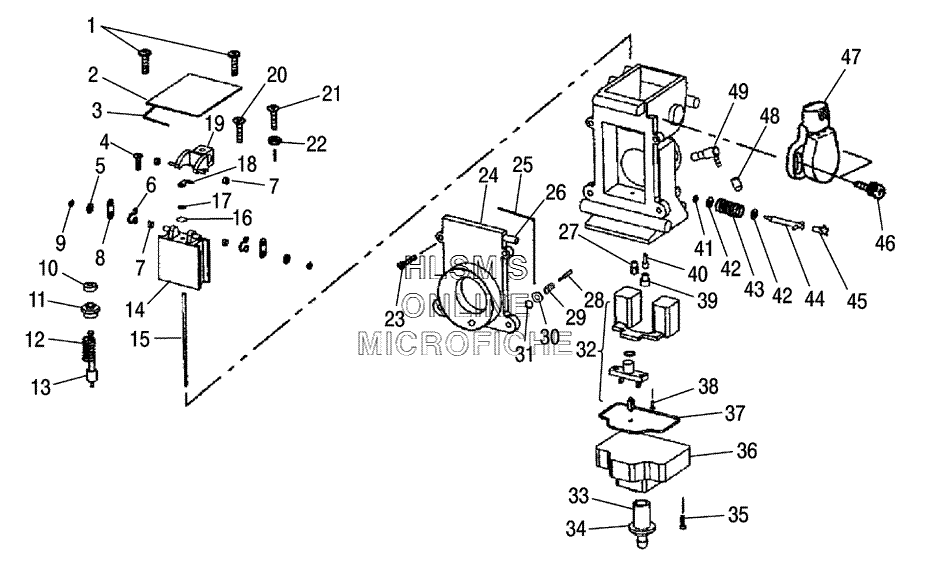

CARBURETOR ASSEMBLY для Polaris 500 XC SP (S06NP5CSB) - 2006 года выпуска
-
№АртикулНазвание
-
13130951 SCREWSCREW
-
23130872 CAP, TOPCAP, TOP
-
33130871 GASKETGASKET
-
43130844 SCREWSCREW
-
53130846 WASHER, PACKINGWASHER, PACKING
-
63130856 CLIPCLIP
-
73130845 RINGRING
-
83130857 PLATEPLATE
-
93130847 E-RINGE-RING
-
103130831 CAP, RUBBERCAP, RUBBER
-
113130830 HOLDER, GUIDEHOLDER, GUIDE
-
123130829 SPRINGSPRING
-
133130828 PLUNGER ASSY. (258)PLUNGER ASSY. (258)
-
143130940 VALVE, PISTON (1.5)VALVE, PISTON (1.5)
-
153131253 NEEDLE-JET (J8-9DFH06-57)NEEDLE-JET (J8-9DFH06-57)
-
163130867 PACKINGPACKING
-
173130868 E-RINGE-RING
-
183130843 PLATEPLATE
-
193130855 LEVER ASSY.LEVER ASSY.
-
193130849 LEVER ASSY.LEVER ASSY.
-
203130854 SCREWSCREW
-
213130850 SCREWSCREW
-
223130848 RINGRING
-
233130825 SCREWSCREW
-
243131335 FUNNEL ASSYFUNNEL ASSY
-
253131356 O-RING, LONG AIR FUNNELO-RING, LONG AIR FUNNEL
-
263130808 PINPIN
-
273130599 JET, MAIN (#410)JET, MAIN (#410)
-
283131336 SCREW-AIRSCREW-AIR
-
293131371 SPRINGSPRING
-
303131372 WASHERWASHER
-
313130522 O-RINGO-RING
-
323130859 FLOAT ASSY.FLOAT ASSY.
-
333131248 BOLT-DRAINBOLT-DRAIN
-
343130863 O-RINGO-RING
-
353130824 SCREWSCREW
-
363130858 FLOAT, BODYFLOAT, BODY
-
373130861 O-RINGO-RING
-
383130860 SCREWSCREW
-
393130068 JET, PILOT (#45)JET, PILOT (#45)
-
403130769 JET, STARTER (#VM11/22-145)JET, STARTER (#VM11/22-145)
-
413130835 PACKINGPACKING
-
423130837 WASHERWASHER
-
433130836 SPRINGSPRING
-
443130987 ADJUSTERADJUSTER
-
453130986 CAPCAP
-
463131010 SCREW (MAG SIDE)SCREW (MAG SIDE)
-
473131009 SENSOR ASSY. (MAG SIDE)SENSOR ASSY. (MAG SIDE)
-
483130479 CAPCAP
-
497051020 VALVE, CHECK, 90 DEG.VALVE, CHECK, 90 DEG.
