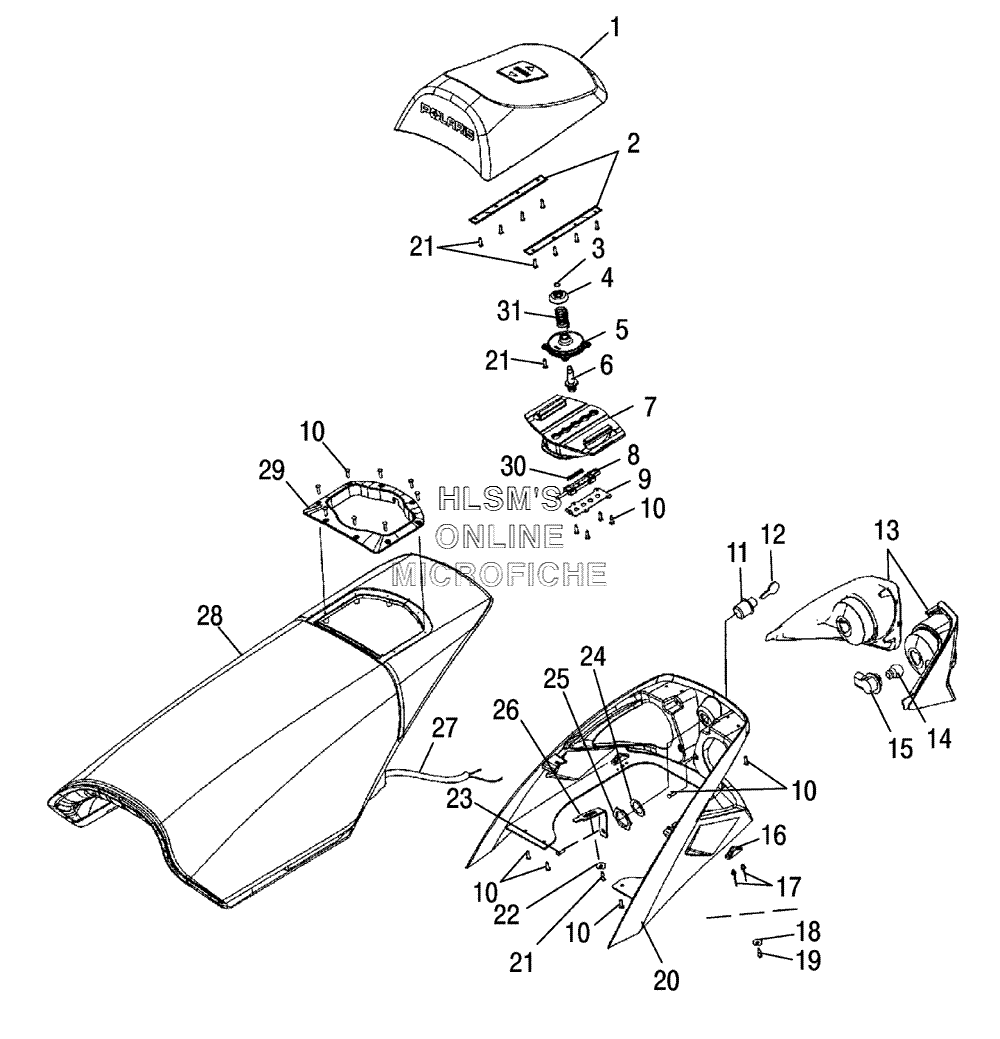

SEAT ADJUSTABLE для Polaris 500 XC SP (S06NP5CSB) - 2006 года выпуска
-
№АртикулНазвание
-
12632956-070 SEAT BUCKET ASSY. (W/INSERT) (BLACK)SEAT BUCKET ASSY. (W/INSERT) (BLACK)
-
25247123 PLATE-ADJUSTABLE SEATPLATE-ADJUSTABLE SEAT
-
37710429 RING, RETAININGRING, RETAINING
-
45434822 CAP-PLUNGER, SEAT BUCKETCAP-PLUNGER, SEAT BUCKET
-
55133975 PLUNGER-SEAT BUCKETPLUNGER-SEAT BUCKET
-
65434821 BASE-PLUNGERBASE-PLUNGER
-
75434816 COVER-TRUNKCOVER-TRUNK
-
85434814 LATCH-TRUNKLATCH-TRUNK
-
95247107 LOCK-BRACKETLOCK-BRACKET
-
107512026 SCREWSCREW
-
117081121 (INCL. 12)(INCL. 12)
-
124010904 SEE NOTESEE NOTE
-
132410395 TAILLIGHT ASSY (LEFT)TAILLIGHT ASSY (LEFT)
-
132410396 TAILLIGHT ASSY (RIGHT)TAILLIGHT ASSY (RIGHT)
-
144010764 BULB-TAILLIGHTBULB-TAILLIGHT
-
154010767 SOCKET-BULBSOCKET-BULB
-
165631194 NUT-SEATNUT-SEAT
-
177621319 RIVETRIVET
-
187555828 WASHER, SPRINGWASHER, SPRING
-
197517219 SCREWSCREW
-
205434813-070 TRUNK (BOTTOM/BLACK)TRUNK (BOTTOM/BLACK)
-
217518238 SCREWSCREW
-
227555792 WASHERWASHER
-
237081162 SCREWSCREW
-
247081161 WASHERWASHER
-
257081160 NUTNUT
-
265247221 BRACKET-PUSHLOCKBRACKET-PUSHLOCK
-
272461126 HARNESS-TAILLIGHTHARNESS-TAILLIGHT
-
282683551 SEAT, ADJ, EDGE ASSY (BLACK)SEAT, ADJ, EDGE ASSY (BLACK)
-
282683552 SEAT, COVER, ADJUSTABLE SEAT ASSYSEAT, COVER, ADJUSTABLE SEAT ASSY
-
295434812 FLANGE-TRUNKFLANGE-TRUNK
-
307042232 SPRING-COMPRESSION, LOCKSPRING-COMPRESSION, LOCK
-
317042199 SPRING-COMPRESSION, PLUNGERSPRING-COMPRESSION, PLUNGER
