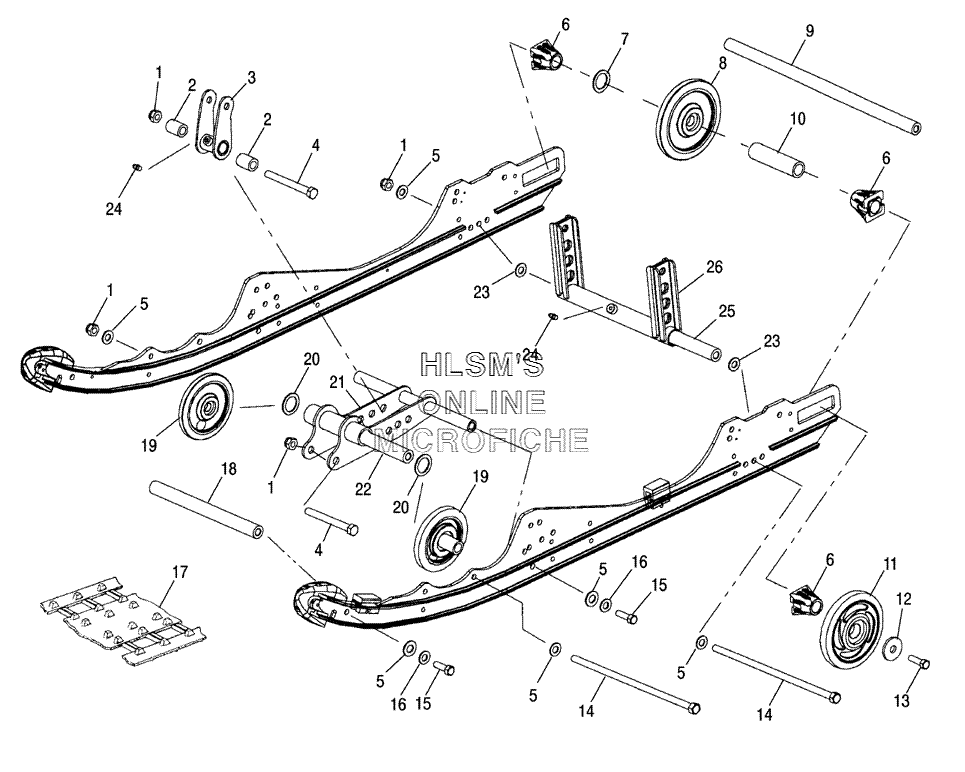

SUSPENSION - REAR для Polaris 500 XC SP (S06NP5CSB) - 2006 года выпуска
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
25133233 BUSHING (.378X.616X1.720)BUSHING (.378X.616X1.720)
-
31541477-067 SHOCK PIVOT ARM (BLACK)SHOCK PIVOT ARM (BLACK)
-
47515417 SCREWSCREW
-
57555806 WASHER, FLATWASHER, FLAT
-
65432535 SPACER, IDLERSPACER, IDLER
-
77555918 BUSHINGBUSHING
-
81594087 WHEEL, PLAIN ASSY (6.38 O.D.)WHEEL, PLAIN ASSY (6.38 O.D.)
-
95020744 SHAFT, IDLERSHAFT, IDLER
-
105333285 SPACER, IDLER, LONGSPACER, IDLER, LONG
-
111590303-293 WHEEL, IDLER ASSY (INDY RED)WHEEL, IDLER ASSY (INDY RED)
-
117710444 RING, RETAININGRING, RETAINING
-
113514384 BEARINGBEARING
-
127556130 WASHER (.406X1.25X.125)WASHER (.406X1.25X.125)
-
137517731 BOLT (3/8-16X1.25)BOLT (3/8-16X1.25)
-
147517921 SCREWSCREW
-
157517247 SCREWSCREW
-
167552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
175412281 TRACK-121''X 15''X.91 SHOCKWAVETRACK-121''X 15''X.91 SHOCKWAVE
-
175222840 CLIP, GUIDECLIP, GUIDE
-
185020723 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
191541485 WHEEL ASSY, W/ HOLEWHEEL ASSY, W/ HOLE
-
207556301 BUSHINGBUSHING
-
211541711-067 WELD-MNT, SHOCK (BLACK)WELD-MNT, SHOCK (BLACK)
-
225132490 SHAFT (.390X.750X.8665)SHAFT (.390X.750X.8665)
-
237555893 WASHER, FLATWASHER, FLAT
-
247080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
255333404 SHAFTSHAFT
-
261541707-067 WELD-ARM, PIVOT, REAR (BLACK)WELD-ARM, PIVOT, REAR (BLACK)
