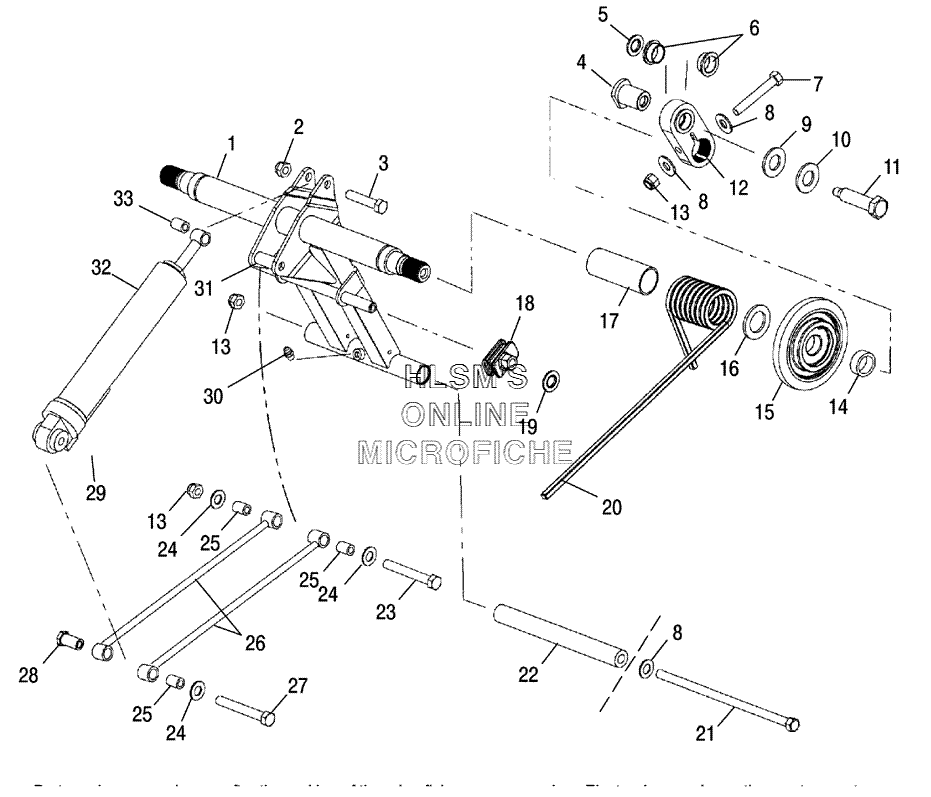

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 500 XC SP (S06NP5CSB) - 2006 года выпуска
-
№АртикулНазвание
-
11541969-067 WELD-ARM, TORQUE (REAR/BLACK)WELD-ARM, TORQUE (REAR/BLACK)
-
27542411 NUT, FLEXLOCNUT, FLEXLOC
-
37512410 BOLTBOLT
-
45333758 SHAFT-ARMSHAFT-ARM
-
57555945 WASHER, THRUSTWASHER, THRUST
-
63514331 BUSHINGBUSHING
-
77515415 SCREWSCREW
-
87555806 WASHER, FLATWASHER, FLAT
-
97555893 WASHER, FLATWASHER, FLAT
-
107552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
117517435 SCREWSCREW
-
121541967 ARM, 2.00 ASSY. (INCL. 6)ARM, 2.00 ASSY. (INCL. 6)
-
137542439 NUT, NYLOKNUT, NYLOK
-
145132388 SPACER, WHEELSPACER, WHEEL
-
151590343 CARRIER WHEEL ASSY0, 6.38CARRIER WHEEL ASSY0, 6.38
-
167555787 WASHERWASHER
-
175431923 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
185432983 ROLLER, SPRING, SQUAREROLLER, SPRING, SQUARE
-
197080394 CLIP, PUSH ONCLIP, PUSH ON
-
207041942-067 SPRING, TORSION (.375SQ/77Ш) (LEFT/BLACK/STD)SPRING, TORSION (.375SQ/77Ш) (LEFT/BLACK/STD)
-
207041943-067 SPRING, TORSION (375SQ/77Ш) (RIGHT/BLACK/STD)SPRING, TORSION (375SQ/77Ш) (RIGHT/BLACK/STD)
-
207041629-067 SPRING, TORSION (.359/77) (LEFT/BLACK) (OPT) (SOFT)SPRING, TORSION (.359/77) (LEFT/BLACK) (OPT) (SOFT)
-
207041630-067 SPRING, TORSION (.359/77) (RIGHT/BLACK) (OPT) (SOFT)SPRING, TORSION (.359/77) (RIGHT/BLACK) (OPT) (SOFT)
-
207041940-067 SPRING-TORSION (.405SQ/77Ш) (BLACK/LEFT) (OPT) (FIRM)SPRING-TORSION (.405SQ/77Ш) (BLACK/LEFT) (OPT) (FIRM)
-
207041941-067 SPRING-TORSION (.405SQ/77Ш) (BLACK/RIGHT) (OPT) (FIRM)SPRING-TORSION (.405SQ/77Ш) (BLACK/RIGHT) (OPT) (FIRM)
-
217517232 SCREWSCREW
-
225333873 SHAFTSHAFT
-
237515514 BOLTBOLT
-
247555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
255132391 BUSHINGBUSHING
-
261541479-067 ROD, SHOCK (BLACK)ROD, SHOCK (BLACK)
-
277517851 SCREWSCREW
-
285132390 BUSHING, NUTBUSHING, NUT
-
295333907 SLEEVESLEEVE
-
307080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
315333904 SPACERSPACER
-
327042129 SHOCK-REAR TRACKSHOCK-REAR TRACK
-
335010422 BUSHINGBUSHING
